SBG446-671 - PYROELECTRIC PASSIVE INFRARED SENSOR

Nippon Ceramic

Datasheet Details

Part number	SBG446-671
Manufacturer	Nippon Ceramic
File Size	583.30 KB
Description	PYROELECTRIC PASSIVE INFRARED SENSOR
Datasheet	SBG446-671 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
SBG1030	Low VF Schottky Barrier Rectifiers	Sirectifier Semiconductors
SBG1035	Low VF Schottky Barrier Rectifiers	Sirectifier Semiconductors
SBG1040	Low VF Schottky Barrier Rectifiers	Sirectifier Semiconductors
SBG1045	Low VF Schottky Barrier Rectifiers	Sirectifier Semiconductors

Other Datasheets by Nippon Ceramic

Part Number	Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

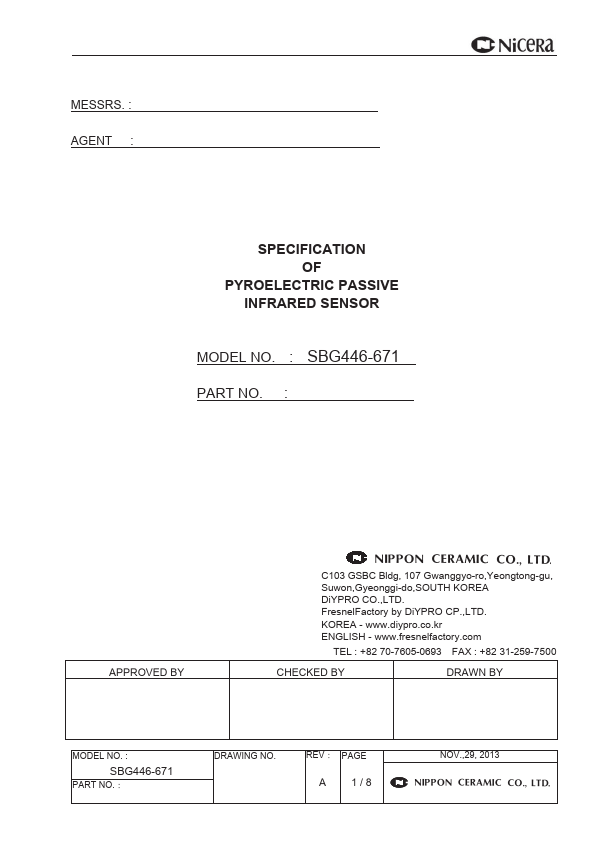

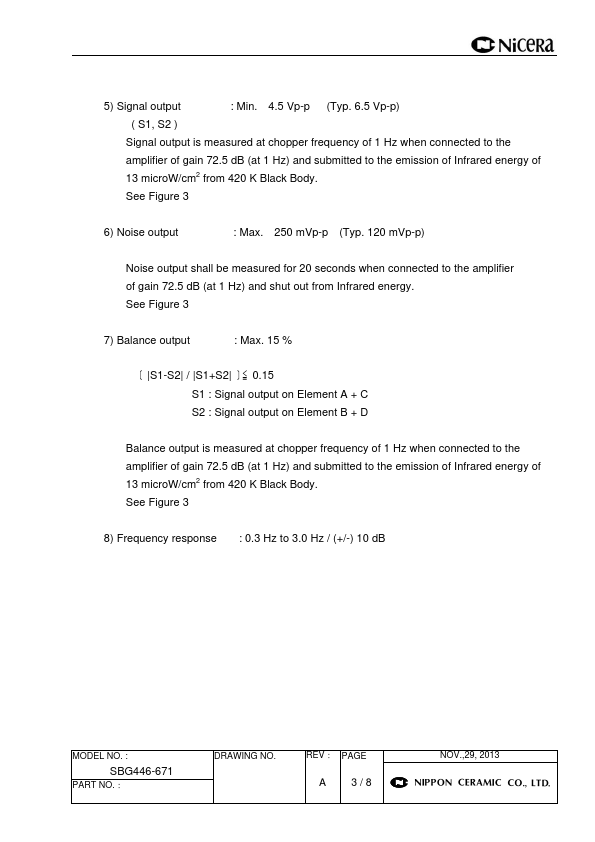

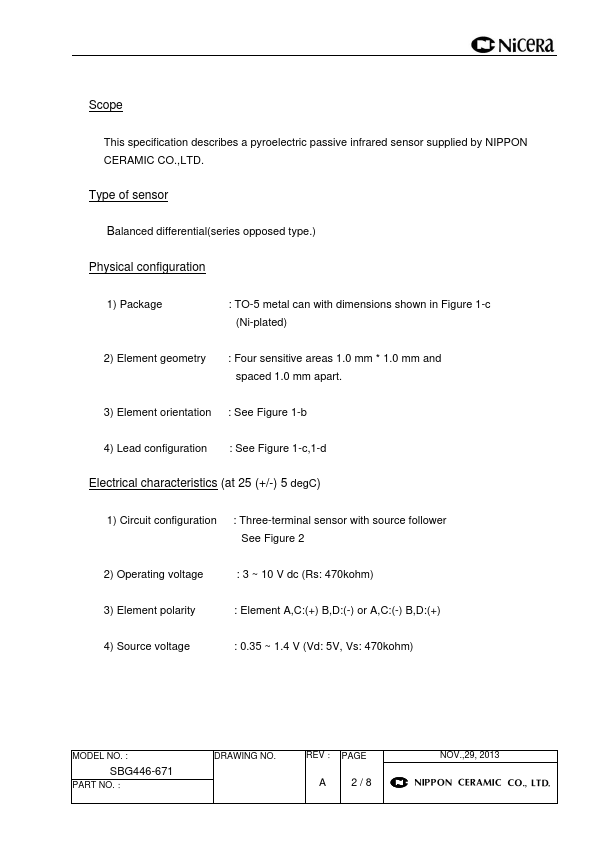

MESSRS. : AGENT : SPECIFICATION OF PYROELECTRIC PASSIVE INFRARED SENSOR MODEL NO. : SBG446-671 PART NO. : APPROVED BY C103 GSBC Bldg, 107 Gwanggyo-ro,Yeongtong-gu, Suwon,Gyeonggi-do,SOUTH KOREA DiYPRO CO.,LTD. FresnelFactory by DiYPRO CP.,LTD. KOREA - www.diypro.co.kr ENGLISH - www.fresnelfactory.com TEL : +82 70-7605-0693 FAX : +82 31-259-7500 CHECKED BY DRAWN BY MODEL NO. : SBG446-671 PART NO.： DRAWING NO. REV： PAGE A 1/8 NOV.,29, 2013 Scope This specification describes a pyroelectric passive infrared sensor supplied by NIPPON CERAMIC CO.,LTD. Type of sensor Balanced differential(series opposed type.) Physical configuration 1) Package : TO-5 metal can with dimensions shown in Figure 1-c (Ni-plated) 2) Element geometry : Four sensitive areas 1.0 mm * 1.0 mm and spaced 1.
