NJM555
TIMER
■ GENERAL DESCRIPTION The NJM555 monolithic timing circuit is a highly stable controller
capable of producing accruate time delays or oscillation. In the time delay mode, delay time is precisely controlled by only two external parts : a resistor and a capacitor. For operation as an oscillator, both the free running frequency and the duty cycle are accurately controlled by two external resistors and a capacitor.
Terminals are provided for triggering and resetting. The circuit will trigger and reset on falling waveforms. The output can source or sink up to 200mA or drive TTL circuits.

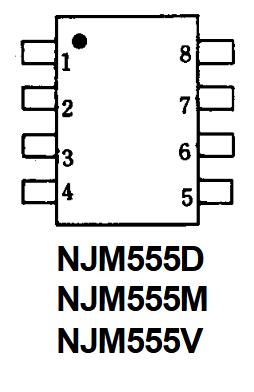

■ PACKAGE OUTLINE
NJM555D
NJM555M
■ FEATURES
● Operating Voltage
(4.
