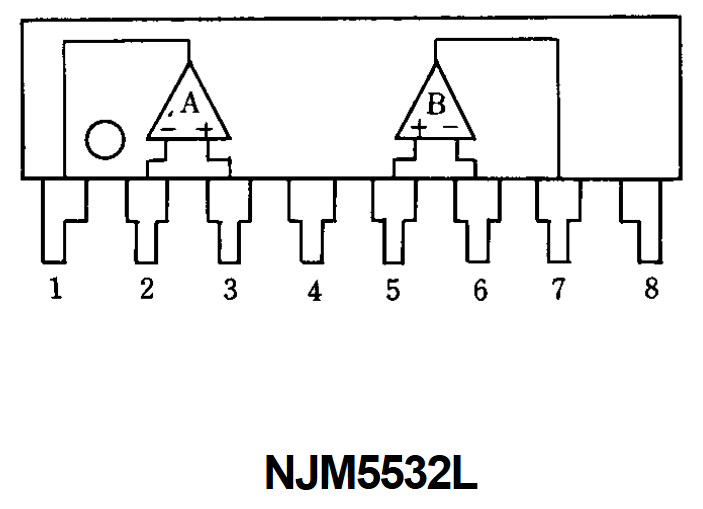

NJM5532L - Low Noise Dual Operational Amplifier

Download the NJM5532L datasheet PDF (NJM5532 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for low noise dual operational amplifier.

Description

The NJM5532 is a high performance dual low noise operational amplifier.

Compared to the standard dual operational amplifiers, such as the NJM1458, it shows better noise performance, improved output drive capability, and considerably higher small-signal and power bandwidths.

Features

  • S.
  • Operating Voltage.
  • Small Signal Bandwidth.
  • Output Drive Capability.
  • Input Noise Voltage.
  • Power Bandwidth.
  • Slew Rate.
  • Bipolar Technology.
  • Package Outline ±3V~±22V 10MHz typ. 600Ω,10Vrms typ. 5nV/√Hz typ. 140kHz typ. 8V/μs typ. DIP8,DMP8,SIP8.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (NJM5532_NewJapanRadio.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • NJM5532L - LOW-NOISE DUAL OPERATIONAL AMPLIFIER (New Japan Radio)
  • NJM5532 - LOW-NOISE DUAL OPERATIONAL AMPLIFIER (New Japan Radio)
  • NJM5532C - LOW-NOISE DUAL OPERATIONAL AMPLIFIER (New Japan Radio)
  • NJM5532D - LOW-NOISE DUAL OPERATIONAL AMPLIFIER (New Japan Radio)
  • NJM5532M - LOW-NOISE DUAL OPERATIONAL AMPLIFIER (New Japan Radio)
  • NJM5534 - HIGH PERFORMANCE LOW-NOISE OPERATIONAL AMPLIFIER (New Japan Radio)
  • NJM5534D - HIGH PERFORMANCE LOW-NOISE OPERATIONAL AMPLIFIER (New Japan Radio)
  • NJM5534M - HIGH PERFORMANCE LOW-NOISE OPERATIONAL AMPLIFIER (New Japan Radio)
  • NJM555 - TIMER (New Japan Radio)
  • NJM555D - TIMER (New Japan Radio)
Other Datasheets by JRC
  • NJM5532CG - LOW-NOISE DUAL OPERATIONAL AMPLIFIER
  • NJM5532D - Low Noise Dual Operational Amplifier
  • NJM5532DD - Low Noise Dual Operational Amplifier
  • NJM5532M - Low Noise Dual Operational Amplifier
  • NJM022B - DUAL LOW POWER OPERATIONAL AMPLIFIER
  • NJM072B - DUAL J-FET INPUT OPERATIONAL AMPLIFIER
  • NJM082B - DUAL J-FET INPUT OPERATIONAL AMPLIFIER
  • NJM2066 - Dual Head-Phone Driver

Full PDF Text Transcription

Click to expand full text
NJM5532 LOW-NOISE DUAL OPERATIONAL AMPLIFIER ■ GENERAL DESCRIPTION The NJM5532 is a high performance dual low noise operational amplifier. Compared to the standard dual operational amplifiers, such as the NJM1458, it shows better noise performance, improved output drive capability, and considerably higher small-signal and power bandwidths. it is compensated internally for voltage follower circuit. This makes the device especially suitable for application in high quality and professional audio equipment, instrumentation, control circuits, and telephone channel amplifiers. If very low noise characteristic is of prime importance, it is recommended D-Rank type products(NJM5532DD/LD/MD). These have specified maximum limits for equivalent input noise voltage.
