NSPAS1 - Automotive Absolute Pressure Sensor

Description

5.1.

OVERVIEW 6 5.2.

TRANSFER FUNCTION 6 5.3.

Features

  • High precision pressure sensing Better than ±1%F. S. (0°C to 85°C) Better than ±1.5%F. S. (-40°C to 125°C).
  • Large temperature range (-40°C to 125°C).
  • Over-voltage and Reverse voltage protection between -24V to 28V.
  • Directly supplied by high voltage up to 18V (absolute analog output).
  • Better than 0.8ms response time.
  • Ratiometric/Absolute analog output.
  • Clamping.
  • AEC-Q100 qualified.

📥 Download Datasheet

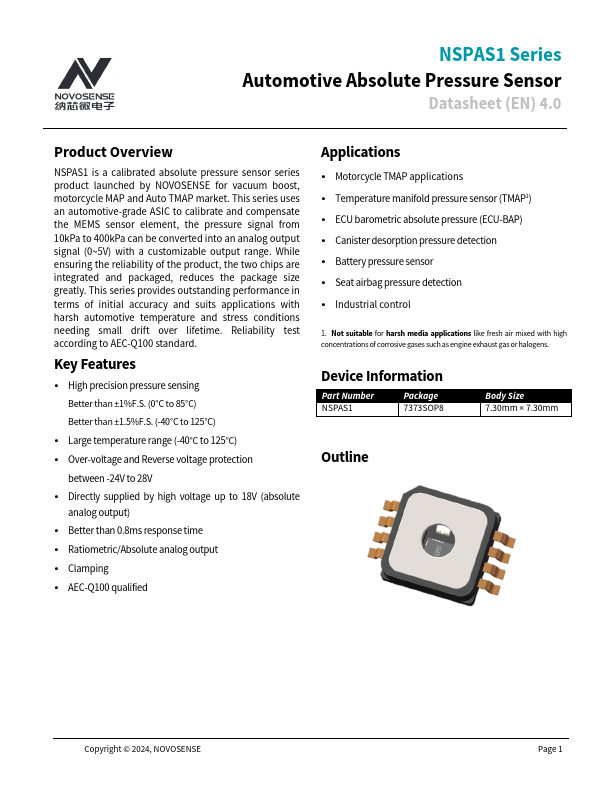

Datasheet preview – NSPAS1

Datasheet Details

Part number NSPAS1
Manufacturer NOVOSENSE
File Size 911.42 KB
Description Automotive Absolute Pressure Sensor
Datasheet download datasheet NSPAS1 Datasheet

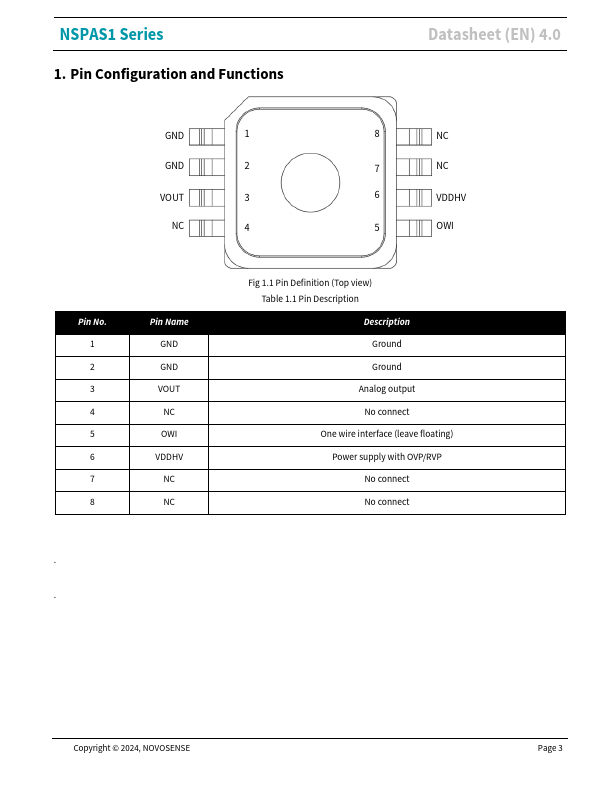

Additional preview pages of the NSPAS1 datasheet.

📁 Similar Datasheet

  • NSPA310S - AMBER LED (NICHIA CORPORATION)
  • NSPA500CS - AMBER LED (NICHIA)
  • NSPA510AS - AMBER LED (NICHIA CORPORATION)
  • NSPA510BS - AMBER LED (NICHIA CORPORATION)
  • NSP040A - 1-ch Voice IC (nuvoton)
  • NSP082A - 1-ch Voice IC (nuvoton)
  • NSP100M6.3D2TR - Surface Mount Specialty Polymer Solid Aluminum Electrolytic Capacitors (NIC-Components)
  • NSP101M2.5D2TR - Surface Mount Specialty Polymer Solid Aluminum Electrolytic Capacitors (NIC-Components)
  • NSP101M2.5D2XTR - Surface Mount Specialty Polymer Solid Aluminum Electrolytic Capacitors (NIC-Components)
  • NSP101M2.5D2ZTR - Surface Mount Specialty Polymer Solid Aluminum Electrolytic Capacitors (NIC-Components)
Other Datasheets by NOVOSENSE
  • NSPAS3 - Automotive Absolute Pressure Sensor
  • NSPAS3N115RRA1 - Automotive Absolute Pressure Sensor
  • NSPAS5N - Automotive Absolute Pressure Sensor
  • NSP1832 - MEMS Differential Pressure Sensor Die
  • NSPGD1M - Integrated Gauge Pressure Sensor
  • NSPGS2 - Integrated Gauge Pressure Sensor
  • NSPGS2F035RT01 - Integrated Gauge Pressure Sensor

Full PDF Text Transcription

Click to expand full text
NSPAS1 Series Automotive Absolute Pressure Sensor Datasheet (EN) 4.0 Product Overview NSPAS1 is a calibrated absolute pressure sensor series product launched by NOVOSENSE for vacuum boost, motorcycle MAP and Auto TMAP market. This series uses an automotive-grade ASIC to calibrate and compensate the MEMS sensor element, the pressure signal from 10kPa to 400kPa can be converted into an analog output signal (0~5V) with a customizable output range. While ensuring the reliability of the product, the two chips are integrated and packaged, reduces the package size greatly. This series provides outstanding performance in terms of initial accuracy and suits applications with harsh automotive temperature and stress conditions needing small drift over lifetime.
