NSPGD1M - Integrated Gauge Pressure Sensor

Description

6.1.

OVERVIEW8 6.2.

ANALOG OUTPUT TRANSFER FUNCTION 8 6.3.

Features

  • Custom range -10kPa~10kPa.
  • High accuracy Total error band initially better than ±1.5%F. S. Full life accuracy better than ±2.5%F. S.
  • Temperature range 0~70°C.
  • Ratio-metric/Absolute analog output.
  • 24bit I2C output.
  • Frequency output.
  • Front side of the chip enters the gas, not easing to block.
  • Waterproof and moisture-proof treatment inside.
  • RoHS & REACH Compliance Copyright © 2025,.

📥 Download Datasheet

Datasheet preview – NSPGD1M

Datasheet Details

Part number NSPGD1M
Manufacturer NOVOSENSE
File Size 701.70 KB
Description Integrated Gauge Pressure Sensor
Datasheet download datasheet NSPGD1M Datasheet

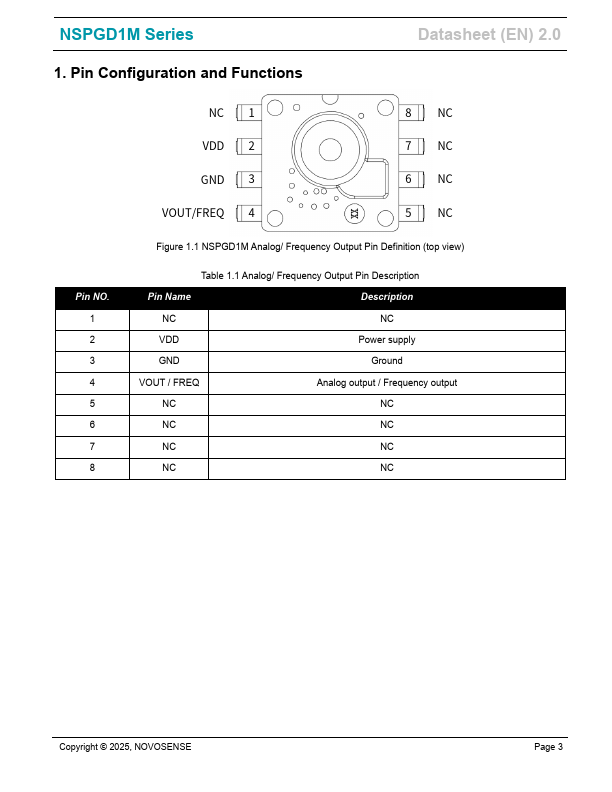

Additional preview pages of the NSPGD1M datasheet.

📁 Similar Datasheet

Other Datasheets by NOVOSENSE
  • NSPGS2 - Integrated Gauge Pressure Sensor
  • NSPGS2F035RT01 - Integrated Gauge Pressure Sensor
  • NSP1832 - MEMS Differential Pressure Sensor Die
  • NSPAS1 - Automotive Absolute Pressure Sensor
  • NSPAS3 - Automotive Absolute Pressure Sensor
  • NSPAS3N115RRA1 - Automotive Absolute Pressure Sensor
  • NSPAS5N - Automotive Absolute Pressure Sensor

Full PDF Text Transcription

Click to expand full text

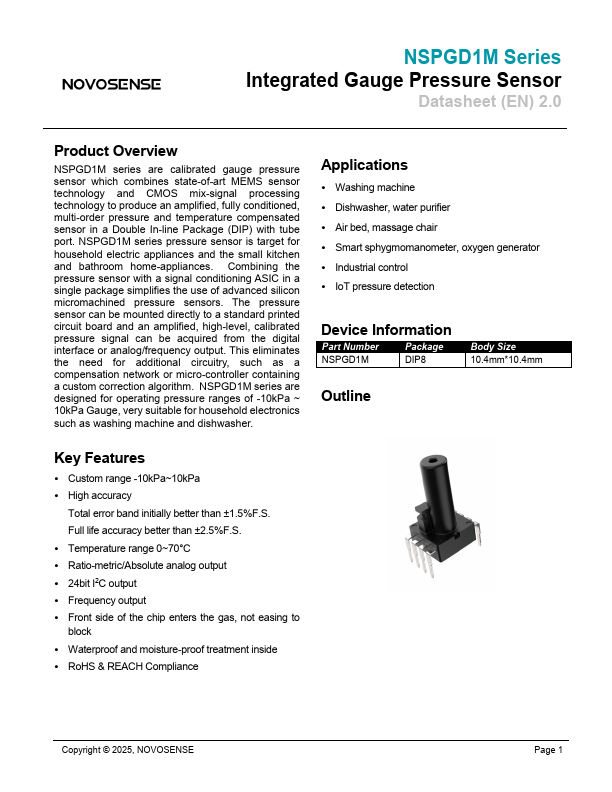

NSPGD1M Series Integrated Gauge Pressure Sensor Datasheet (EN) 2.0 Product Overview NSPGD1M series are calibrated gauge pressure sensor which combines state-of-art MEMS sensor technology and CMOS mix-signal processing technology to produce an amplified, fully conditioned, multi-order pressure and temperature compensated sensor in a Double In-line Package (DIP) with tube port. NSPGD1M series pressure sensor is target for household electric appliances and the small kitchen and bathroom home-appliances. Combining the pressure sensor with a signal conditioning ASIC in a single package simplifies the use of advanced silicon micromachined pressure sensors.
