Datasheet4U Logo Datasheet4U.com

NSI7211-DSPAR - High Reliability Single-Channel and Dual-Channel Opto-Emulator

This page provides the datasheet information for the NSI7211-DSPAR, a member of the NSI7210-DSPAR High Reliability Single-Channel and Dual-Channel Opto-Emulator family.

Description

7.1.

INSULATION AND SAFETY RELATED SPECIFICATIONS15 7.2.

INSULATION CHARACTERISTICS 16 7.3.

Features

  • Up to 3750Vrms Insulation voltage: SOP5, SOP8.
  • Up to 7500Vrms Insulation voltage: SOP8(600mil).
  • Data rate: DC to 15Mbps.
  • Power supply voltage: 2.7V to 5.5V.
  • High CMTI: 100kV/μs.
  • Chip level ESD: HBM: ±8kV.
  • Single or dual diode-emulator input.
  • Output options: NSI7210: CMOS NSI7221/ NSI7211: Open-drain.
  • Low propagation delay:.

📥 Download Datasheet

Datasheet preview – NSI7211-DSPAR

Datasheet Details

Part number NSI7211-DSPAR
Manufacturer NOVOSENSE
File Size 2.24 MB
Description High Reliability Single-Channel and Dual-Channel Opto-Emulator
Datasheet download datasheet NSI7211-DSPAR Datasheet

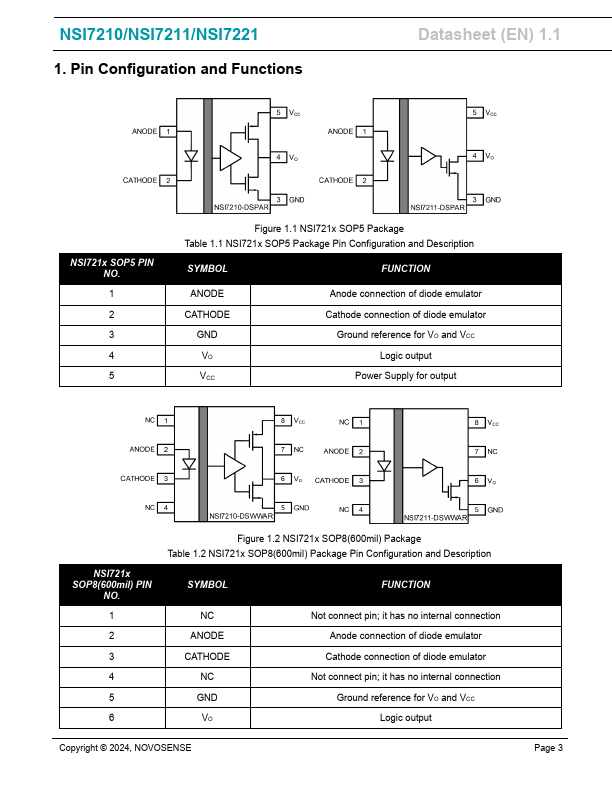

Additional preview pages of the NSI7211-DSPAR datasheet.

📁 Similar Datasheet

  • NSI1000 - 1024 x 32 Resolution CMOS Image Sensor (Newsight Imaging)
  • NSI3000 - CMOS Image Sensor (Newsight Imaging)
  • NSI45015WT1G - Constant Current Regulator & LED Driver (ON Semiconductor)
  • NSI45020AT1G - Constant Current Regulator & LED Driver (ON Semiconductor)
  • NSI45020JZ - Adjustable Constant Current Regulator & LED Driver (ON Semiconductor)
  • NSI45020T1G - Constant Current Regulator & LED Driver (ON Semiconductor)
  • NSI45025AT1G - Constant Current Regulator & LED Driver (ON Semiconductor)
  • NSI45025AZ - Constant Current Regulator & LED Driver (ON Semiconductor)
  • NSI45025T1G - Constant Current Regulator & LED Driver (ON Semiconductor)
  • NSI45025ZT1G - Constant Current Regulator & LED Driver (ON Semiconductor)
Other Datasheets by NOVOSENSE
  • NSI7211-DSPR - High Reliability Single-Channel and Dual-Channel Opto-Emulator
  • NSI7211-DSWWAR - High Reliability Single-Channel and Dual-Channel Opto-Emulator
  • NSI7210-DSPAR - High Reliability Single-Channel and Dual-Channel Opto-Emulator
  • NSI7210-DSWWAR - High Reliability Single-Channel and Dual-Channel Opto-Emulator
  • NSI7221-DSPR - High Reliability Single-Channel and Dual-Channel Opto-Emulator
  • NSI1042 - Isolated CAN Transceiver
  • NSI1042-Q1 - Isolated CAN Transceiver
  • NSI1042C - Isolated CAN Transceiver

Full PDF Text Transcription

Click to expand full text

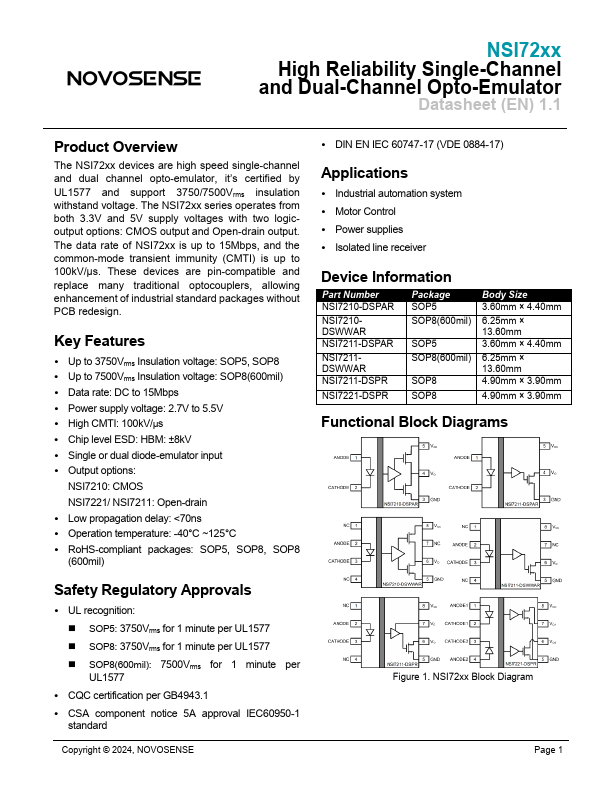

NSI72xx High Reliability Single-Channel and Dual-Channel Opto-Emulator Datasheet (EN) 1.1 Product Overview The NSI72xx devices are high speed single-channel and dual channel opto-emulator, it’s certified by UL1577 and support 3750/7500Vrms insulation withstand voltage. The NSI72xx series operates from both 3.3V and 5V supply voltages with two logicoutput options: CMOS output and Open-drain output. The data rate of NSI72xx is up to 15Mbps, and the common-mode transient immunity (CMTI) is up to 100kV/μs. These devices are pin-compatible and replace many traditional optocouplers, allowing enhancement of industrial standard packages without PCB redesign.
Published: |
