MCACD55N04YHE3 - Dual N-CHANNEL MOSFET

Features

  • AEC-Q101 Qualified.
  • Split Gate Trench MOSFET Tenchnology.
  • Excellent Package For Heat Dissipation.
  • Moisture Sencitivity Level 1.
  • Halogen Free. “Green” Device (Note 1).
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) MCACD55N04YHE3 Dual N-.

📥 Download Datasheet

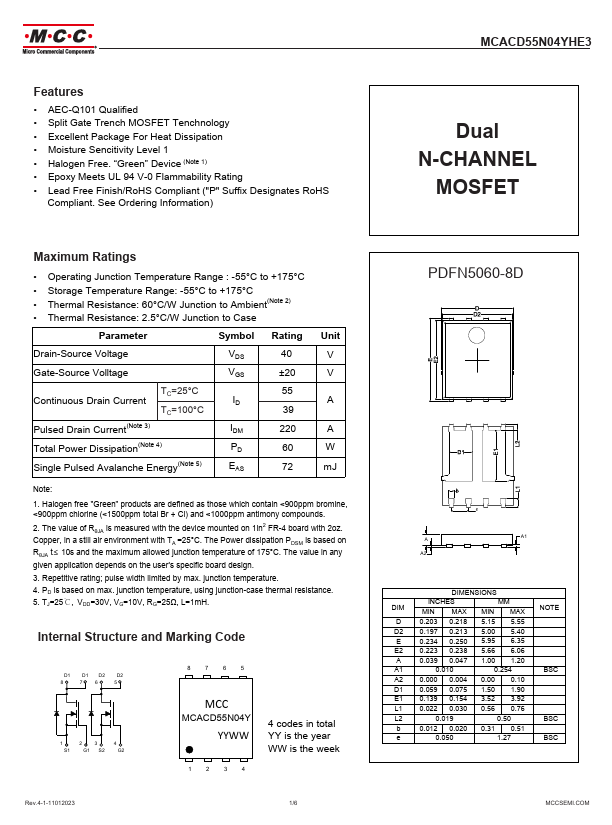

Datasheet preview – MCACD55N04YHE3

📁 Similar Datasheet

  • MCA-352 - Frequency Mixer (Mini-Circuits)
  • MCA-35H - Frequency Mixer (Mini-Circuits)
  • MCA002 - MULTI CHIP ARRAY MOSFET (TT)
  • MCA002 - N-CHANNEL MOSFETS (Seme LAB)
  • MCA0401 - MULTI-CHIP ARRAY (Seme LAB)
  • MCA1-60 - Ceramic Frequency Mixer WIDE BAND (Mini-Circuits)
  • MCA1-60LH - Frequency Mixer WIDE BAND (Mini-Circuits)
  • MCA1-60MH - Frequency Mixer WIDE BAND (Mini-Circuits)
  • MCA1-80MH - Frequency Mixer WIDE BAND (Mini-Circuits)
  • MCA1-80MH - Frequency Mixer WIDE BAND (Mini-Circuits)
Other Datasheets by MCC

Full PDF Text Transcription

Click to expand full text
Features • AEC-Q101 Qualified • Split Gate Trench MOSFET Tenchnology • Excellent Package For Heat Dissipation • Moisture Sencitivity Level 1 • Halogen Free. “Green” Device (Note 1) • Epoxy Meets UL 94 V-0 Flammability Rating • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) MCACD55N04YHE3 Dual N-CHANNEL MOSFET Maximum Ratings • Operating Junction Temperature Range : -55°C to +175°C • Storage Temperature Range: -55°C to +175°C • Thermal Resistance: 60°C/W Junction to Ambient(Note 2) • Thermal Resistance: 2.
