LTKAK10-076C - TVS Diodes

This page provides the datasheet information for the LTKAK10-076C, a member of the LTKAK10-058C TVS Diodes family.

Description

The LTKAK10 series offer superior clamping characteristics over standard S.A.D.

technologies by virtue of the Littelfuse Foldbak technology, which provides a clamping voltage lower than the avalanche voltage (but above the rated working voltage).

Features

  • High Power TVS designed in a surface mount compact SMTO-218 package.
  • Patent pending package design.
  • Foldbak technology for superior clamping factor.
  • Tube or tape and reel pack options available.
  • Ideal for automatic pick and place assembly and reflow process to reduce the manufacturing cost and increase the soldering quality as compared to axial leaded packages.
  • Bi-directional.
  • Meet MSL level 1, per J-STD-020, LF maximun peak of 24.

📥 Download Datasheet

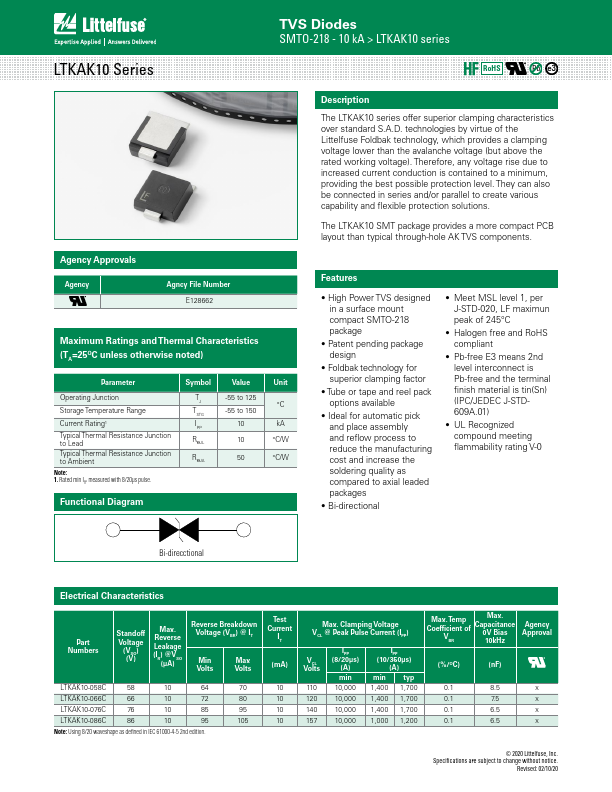

Datasheet preview – LTKAK10-076C

Datasheet Details

Part number LTKAK10-076C
Manufacturer Littelfuse
File Size 659.74 KB
Description TVS Diodes
Datasheet download datasheet LTKAK10-076C Datasheet

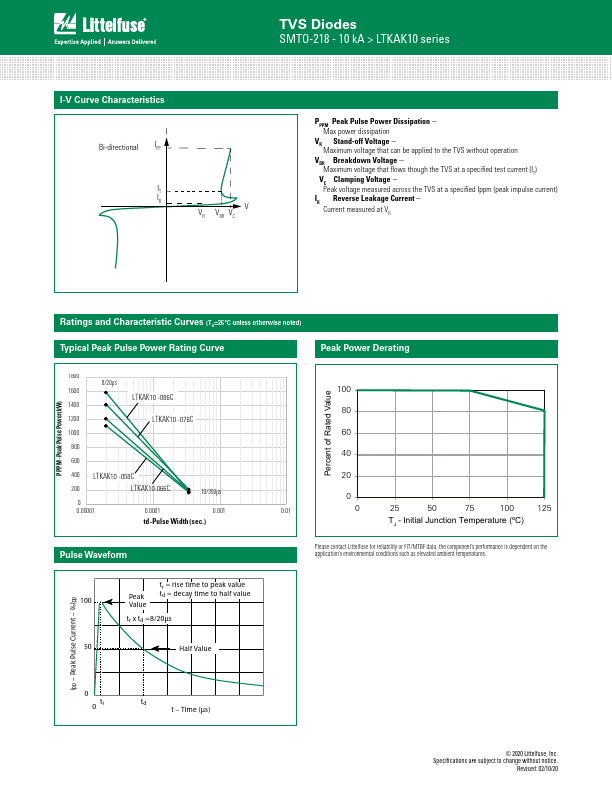

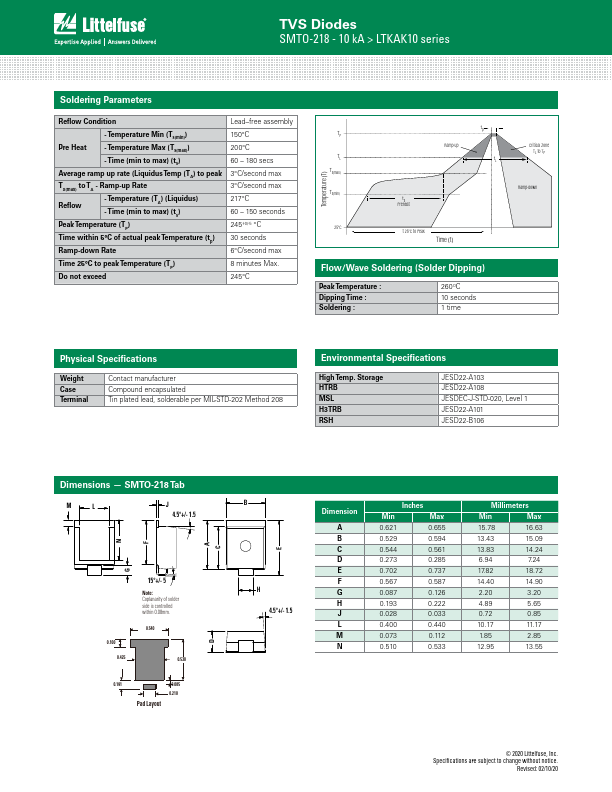

Additional preview pages of the LTKAK10-076C datasheet.

📁 Similar Datasheet

  • LTK-1180-101 - Photoelectric proximity switch (CONTRINEX)
  • LTK-1180-102 - Photoelectric proximity switch (CONTRINEX)
  • LTK-1180-103 - Photoelectric proximity switch (CONTRINEX)
  • LTK-1180-104 - Photoelectric proximity switch (CONTRINEX)
  • LTK001 - Thermocouple Cold Junction Compensator and Matched Amplifier (Linear Technology)
  • LTK1180-101 - Photoelectric proximity switch (CONTRINEX)
  • LTK1180-102 - Photoelectric proximity switch (CONTRINEX)
  • LTK1180-103 - Photoelectric proximity switch (CONTRINEX)
  • LTK1180-104 - Photoelectric proximity switch (CONTRINEX)
  • LTK41057 - integrated overvoltage protection (LTKCHIP TECHNOLOGY)
Other Datasheets by Littelfuse

Full PDF Text Transcription

Click to expand full text
LTKAK10 Series TVS Diodes SMTO-218 - 10 kA > LTKAK10 series RoHS Pb e3 Agency Approvals Agency Agncy File Number E128662 Maximum Ratings and Thermal Characteristics (TA=25OC unless otherwise noted) Parameter Operating Junction Storage Temperature Range Current Rating1 Typical Thermal Resistance Junction to Lead Typical Thermal Resistance Junction to Ambient Note: 1. Rated min IPP measured with 8/20μs pulse. Functional Diagram Symbol TJ TSTG IPP RƟJL RƟJA Value -55 to 125 -55 to 150 10 10 50 Unit °C kA °C/W °C/W Description The LTKAK10 series offer superior clamping characteristics over standard S.A.D. technologies by virtue of the Littelfuse Foldbak technology, which provides a clamping voltage lower than the avalanche voltage (but above the rated working voltage).
