LTKAK10-066C - TVS Diodes

This page provides the datasheet information for the LTKAK10-066C, a member of the LTKAK10-058C TVS Diodes family.

Description

The LTKAK10 series offer superior clamping characteristics over standard S.A.D.

technologies by virtue of the Littelfuse Foldbak technology, which provides a clamping voltage lower than the avalanche voltage (but above the rated working voltage).

Features

  • High Power TVS designed in a surface mount compact SMTO-218 package.
  • Patent pending package design.
  • Foldbak technology for superior clamping factor.
  • Tube or tape and reel pack options available.
  • Ideal for automatic pick and place assembly and reflow process to reduce the manufacturing cost and increase the soldering quality as compared to axial leaded packages.
  • Bi-directional.
  • Meet MSL level 1, per J-STD-020, LF maximun peak of 24.

📥 Download Datasheet

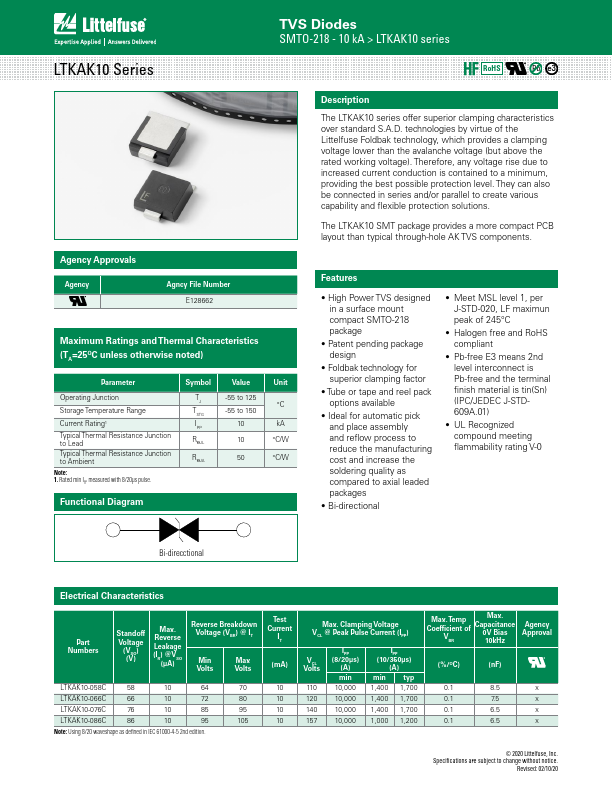

Datasheet preview – LTKAK10-066C

Datasheet Details

Part number LTKAK10-066C
Manufacturer Littelfuse
File Size 659.74 KB
Description TVS Diodes
Datasheet download datasheet LTKAK10-066C Datasheet

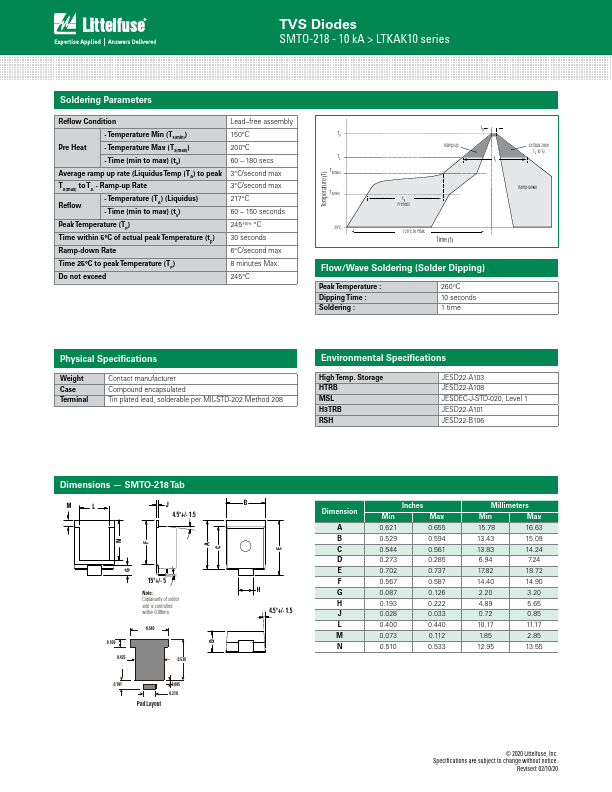

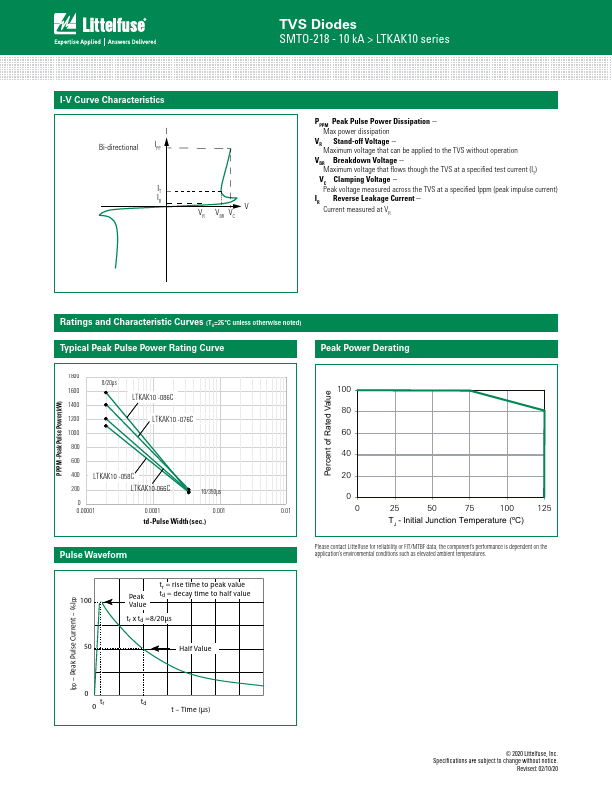

Additional preview pages of the LTKAK10-066C datasheet.
