SI4634DY - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 30V.
  • ID = 24.5 A (VGS = 10V).
  • RDS(ON) ＜ 5.2mΩ (VGS = 10V).
  • RDS(ON) ＜ 6.7mΩ (VGS = 4.5V) SOP-8 +0.04 0.21 -0.02 D G S MOSFET Unit:mm 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current TC=25℃ TC=70℃ TA=25℃ Pulsed Drain Current Single Pulse Avalanche Current Avalanche Energy Power Dissipation Thermal Resistance. Ju.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SI4634DY N-Channel MOSFET Vishay
SI4630DY N-Channel MOSFET Vishay
Si4606 N+P Complementary Enhancement MOSFET Nanxin
SI4618DY Dual N-Channel 30-V (D-S) MOSFET Vishay Siliconix
SI4620DY N-Channel MOSFET Vishay

Other Datasheets by Kexin Semiconductor

Part Number Description
SI4410DY N-Channel MOSFET
SI4435DY P-Channel MOSFET
SI4490DY-HF N-Channel MOSFET
SI4558DY Complementary Power Trench MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

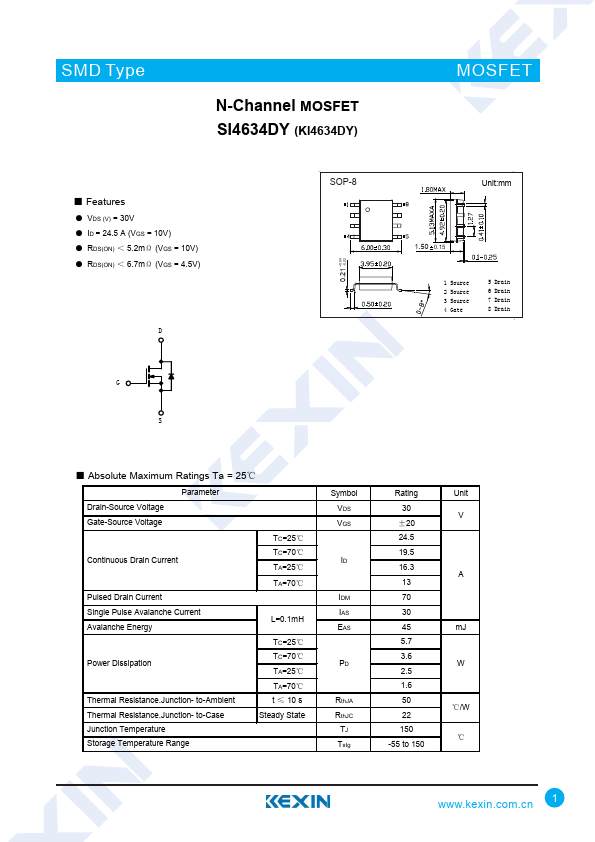

SMD Type N-Channel MOSFET SI4634DY (KI4634DY) ■ Features ● VDS (V) = 30V ● ID = 24.5 A (VGS = 10V) ● RDS(ON) ＜ 5.2mΩ (VGS = 10V) ● RDS(ON) ＜ 6.7mΩ (VGS = 4.5V) SOP-8 +0.04 0.21 -0.02 D G S MOSFET Unit:mm 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current TC=25℃ TC=70℃ TA=25℃ Pulsed Drain Current Single Pulse Avalanche Current Avalanche Energy Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Case Junction Temperature Storage Temperature Range TA=70℃ L=0.1mH TC=25℃ TC=70℃ TA=25℃ TA=70℃ t ≤ 10 s Steady State Symbol VDS VGS ID IDM IAS EAS PD RthJA RthJC TJ Tstg Rating 30 ±20 24.5 19.5 16.
