SI2324DS - N-Channel Enhancement MOSFET

Key Features

  • s.
  • VDSS = 100V.
  • ID = 2.3 A (VGS = 10V).
  • RDS(ON) ＜ 234mΩ (VGS = 10V).
  • RDS(ON) ＜ 267mΩ (VGS = 6V).
  • RDS(ON) ＜ 278mΩ (VGS = 4.5V) D G S +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.68 -0.1.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current TJ =150℃.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SI2324DS N-Channel MOSFET Vishay Siliconix
SI2324 N-Channel MOSFET MCC
SI2324A N-Channel MOSFET MCC
SI2320DS N-Channel MOSFET Vishay Siliconix
SI2321 P-Channel MOSFET MCC

Other Datasheets by Kexin Semiconductor

Part Number Description
SI2300 N-Channel MOSFET
SI2301 P-Channel MOSFET
SI2301BDS P-Channel Enhancement MOSFET
SI2301DS P-Channel MOSFET
SI2301DS-HF P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

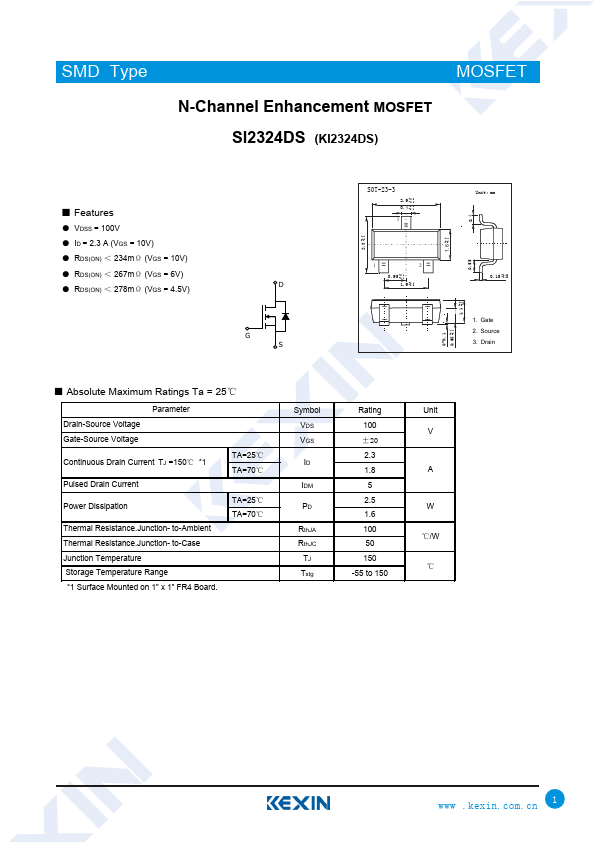

SSMMDD TTyyppee MOSFET IC N-Channel Enhancement MOSFET SI2324DS (KI2324DS) ■ Features ● VDSS = 100V ● ID = 2.3 A (VGS = 10V) ● RDS(ON) ＜ 234mΩ (VGS = 10V) ● RDS(ON) ＜ 267mΩ (VGS = 6V) ● RDS(ON) ＜ 278mΩ (VGS = 4.5V) D G S +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.68 -0.1 ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current TJ =150℃ *1 Pulsed Drain Current TA=25℃ TA=70℃ Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Case Junction Temperature Storage Temperature Range *1 Surface Mounted on 1” x 1” FR4 Board.
