SI2312DS - N-Channel Enhancement MOSFET

Key Features

  • s.
  • VDS (V) = 20V.
  • ID = 4.9 A (VGS =4.5V).
  • RDS(ON) ＜ 33mΩ (VGS = 4.5V).
  • RDS(ON) ＜ 40mΩ (VGS = 2.5V).
  • RDS(ON) ＜ 51mΩ (VGS = 1.8V) G1 S2 3D +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 MOSFET Unit: mm 0.1 +0.05 -0.01 1.Gate 2.Source 3.Drain 0-0.1 +0.1 0.38 -0.1.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SI2312DS N-Channel MOSFET Vishay Siliconix
SI2312 20V N-Channel MOSFET JinYu
Si2312 N-Channel MOSFET SiPU
SI2312 N-Channel MOSFET MCC
SI2312 N-CHANNEL MOSFET BLUE ROCKET ELECTRONICS

Other Datasheets by Kexin Semiconductor

Part Number Description
SI2314EDS N-Channel Enhancement MOSFET
SI2318CDS N-Channel MOSFET
SI2318DS N-Channel MOSFET
SI2300 N-Channel MOSFET
SI2301 P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

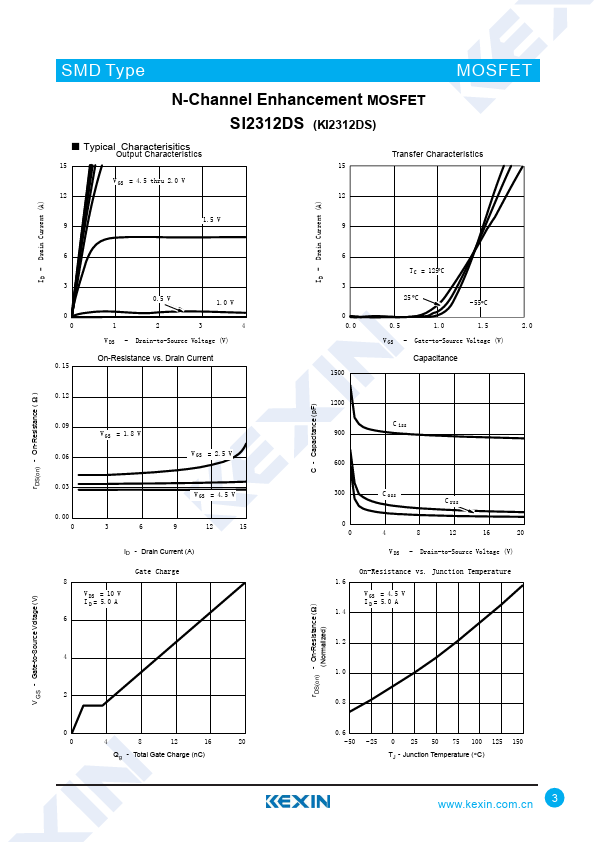

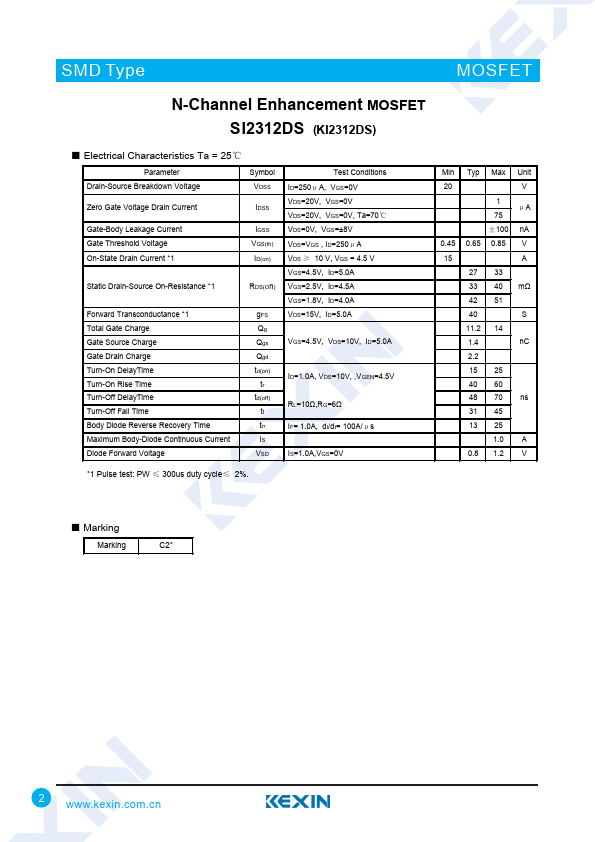

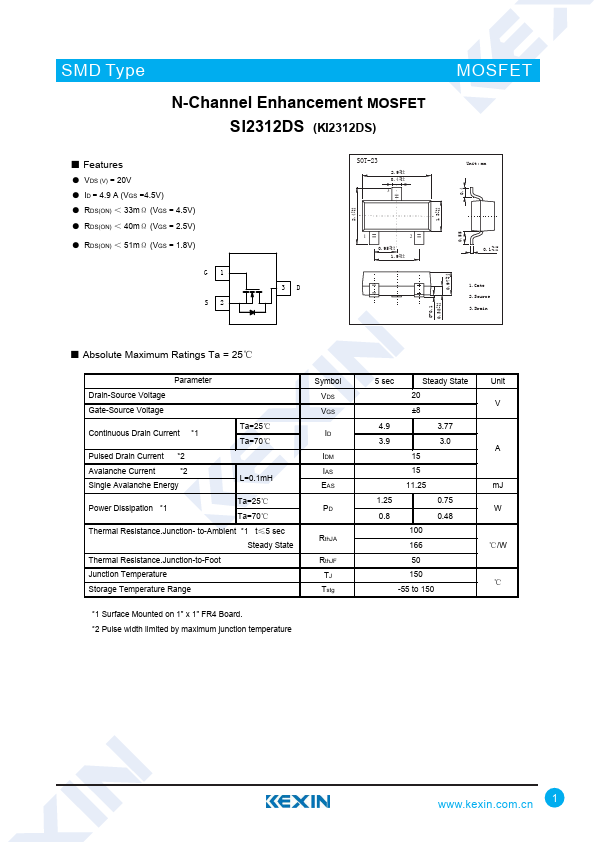

SMD Type N-Channel Enhancement MOSFET SI2312DS (KI2312DS) ■ Features ● VDS (V) = 20V ● ID = 4.9 A (VGS =4.5V) ● RDS(ON) ＜ 33mΩ (VGS = 4.5V) ● RDS(ON) ＜ 40mΩ (VGS = 2.5V) ● RDS(ON) ＜ 51mΩ (VGS = 1.8V) G1 S2 3D +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 MOSFET Unit: mm 0.1 +0.05 -0.01 1.Gate 2.Source 3.Drain 0-0.1 +0.1 0.38 -0.1 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current *1 Ta=25℃ Ta=70℃ Pulsed Drain Current *2 Avalanche Current *2 Single Avalanche Energy L=0.1mH Power Dissipation *1 Ta=25℃ Ta=70℃ Thermal Resistance.Junction- to-Ambient *1 t≤5 sec Steady State Thermal Resistance.
