SI2306DS - 30V N-Channel MOSFET

Key Features

  • RDS(ON) ＜ 57mΩ (VGS =-10V).
  • RDS(ON) ＜ 94 mΩ (VGS =-4.5V) D G S +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 0-0.1 +0.1 0.38 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 11.. BGasaete 22.. ESmiotutrecre 33.. cDolrlaeicntor Absolute Maximum Ratings Ta = 25 Drain-source voltage Gate-source voltage Parameter Continuous drain current (TJ = 150 ).
  • 1,2 TA=25 -- TA=70 Pulsed drain current Continuous source cur.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SI2306DS N-Channel MOSFET Vishay Siliconix
Si2306 N-Channel Enhancement Mode Field Effect Transistor SiPU
SI2306 N-Channel Enhancement Mode Field Effect Transistor MCC
SI2306 N-CHANNEL MOSFET BLUE ROCKET ELECTRONICS
SI2306 20V N-Channel Enhancement Mode MOSFET JinYu

Other Datasheets by Kexin Semiconductor

Part Number Description
SI2300 N-Channel MOSFET
SI2301 P-Channel MOSFET
SI2301BDS P-Channel Enhancement MOSFET
SI2301DS P-Channel MOSFET
SI2301DS-HF P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

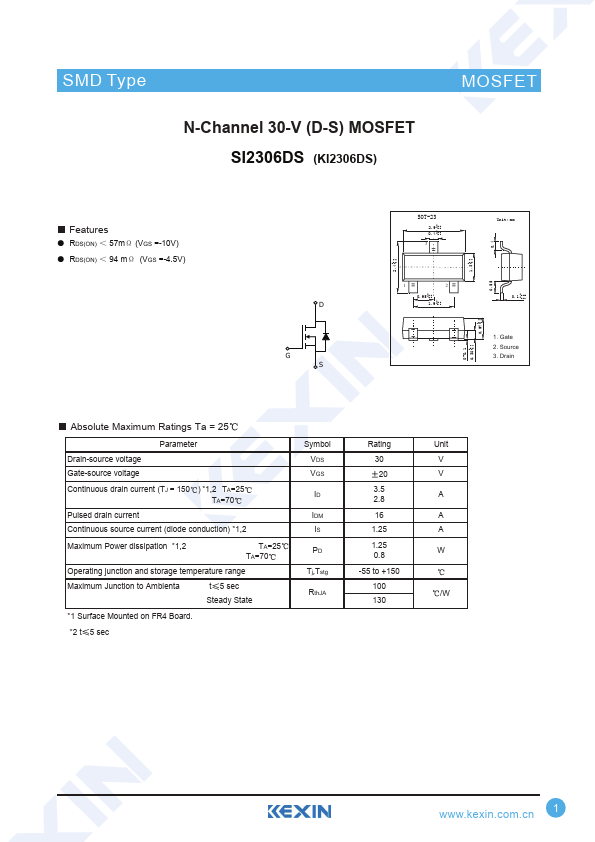

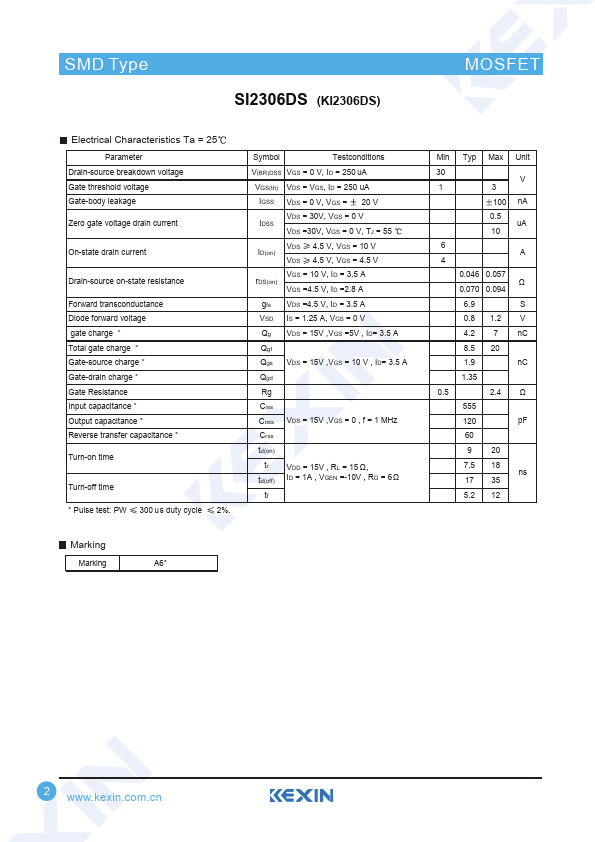

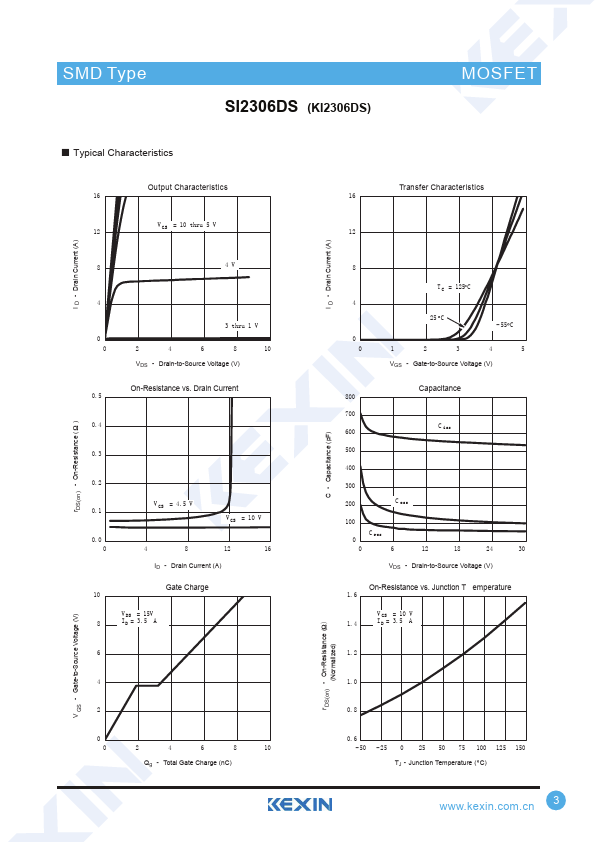

SSMMDD TTyyppee N-Channel 30-V (D-S) MOSFET SI2306DS (KI2306DS) MOSFIECT Features ● RDS(ON) ＜ 57mΩ (VGS =-10V) ● RDS(ON) ＜ 94 mΩ (VGS =-4.5V) D G S +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 0-0.1 +0.1 0.38 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 11.. BGasaete 22..ESmiotutrecre 33..cDolrlaeicntor Absolute Maximum Ratings Ta = 25 Drain-source voltage Gate-source voltage Parameter Continuous drain current (TJ = 150 ) *1,2 TA=25 -- TA=70 Pulsed drain current Continuous source current (diode conduction) *1,2 Maximum Power dissipation *1,2 -- TA=25 TA=70 Operating junction and storage temperature range Maximum Junction to Ambienta t 5 sec Steady State *1 Surface Mounted on FR4 Board.
