SI1029X - Complementary MOSFET

Key Features

  • s.
  • N-Channel VDS = 60V, ID = 500mA RDS(ON) < 1.4 Ω @ VGS=10V RDS(ON) < 3 Ω @ VGS=4.5V.
  • P-Channel VDS = -60V, ID = -500mA RDS(ON) < 4 Ω @ VGS=-10V RDS(ON) < 8 Ω @ VGS=-4.5V S1 1 6 D1 G1 2 5 G2 D2 3 4 S2 Top View SOT-563 0.20 ± 0.10 1.20 ± 0.10 1.60 ± 0.10 4 3 5 2 6 1 Unit:mm 0.05 (max) 0.22 ± 0.05 0.50 ± 0.05 1.60 ± 0.10 7° REF. 0.525 ~ 0.60 0.125 ± 0.035 7° REF.
  • Absolute Maximum Ratings (TA = 25℃ Unless otherwise specified) Parameter Symbol N-Channel.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SI1029X MOSFET Vishay Siliconix
Si1020 10-Bit ADC MCU Silicon Laboratories
Si1021 10-Bit ADC MCU Silicon Laboratories
SI1021R P-Channel MOSFET Vishay Siliconix
Si1022 10-Bit ADC MCU Silicon Laboratories

Other Datasheets by Kexin Semiconductor

Part Number Description
SI1903DL Dual P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

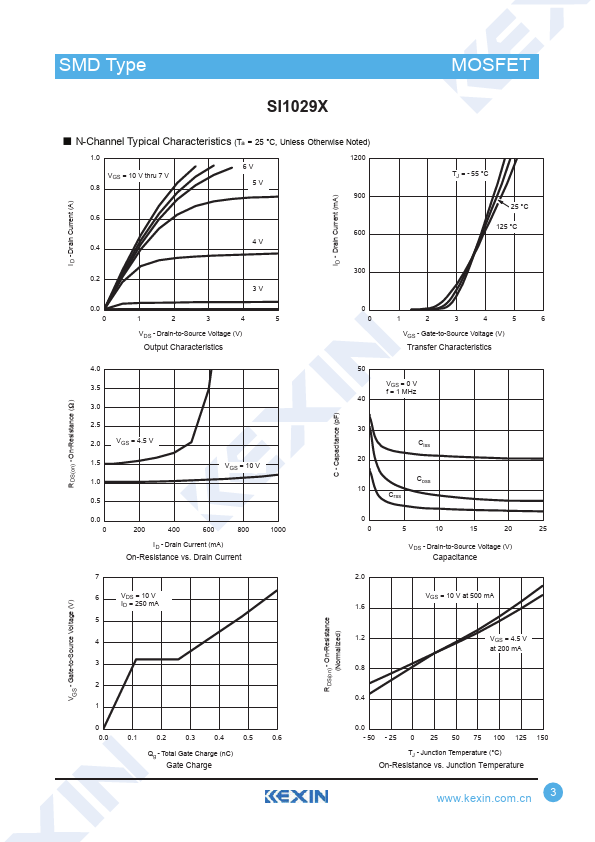

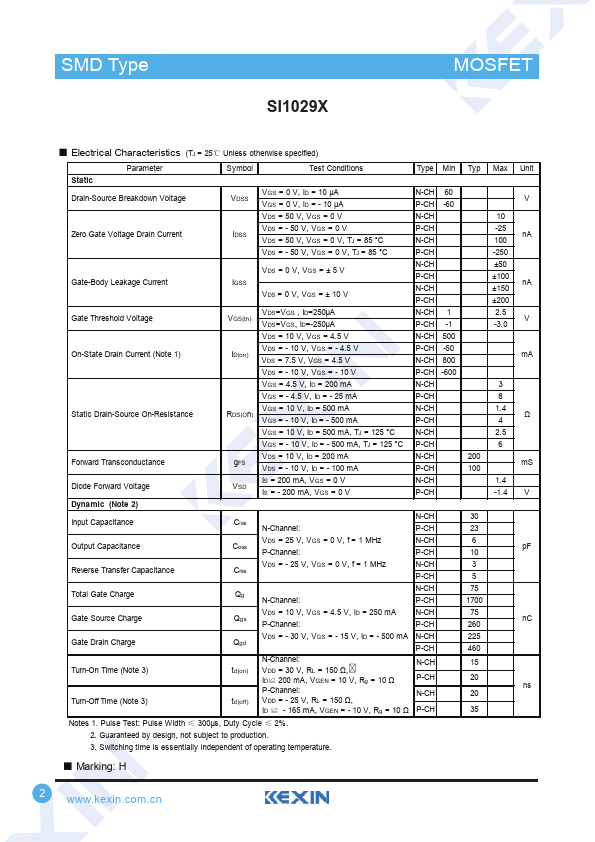

SMD Type MOSFET Complementary MOSFET SI1029X ■ Features ● N-Channel VDS = 60V, ID = 500mA RDS(ON) < 1.4 Ω @ VGS=10V RDS(ON) < 3 Ω @ VGS=4.5V ● P-Channel VDS = -60V, ID = -500mA RDS(ON) < 4 Ω @ VGS=-10V RDS(ON) < 8 Ω @ VGS=-4.5V S1 1 6 D1 G1 2 5 G2 D2 3 4 S2 Top View SOT-563 0.20 ± 0.10 1.20 ± 0.10 1.60 ± 0.10 4 3 5 2 6 1 Unit:mm 0.05 (max) 0.22 ± 0.05 0.50 ± 0.05 1.60 ± 0.10 7° REF. 0.525 ~ 0.60 0.125 ± 0.035 7° REF.
