LM78L18 - Three-Terminal Positive Voltage Regulator

Features

  • Maximum Output current IO: 0.1A Output Voltage VO: 18V Continuous Total Dissipation PD: 0.5W (Ta = 25 ) 1.70 0.1 0.42 0.1 0.46 0.1 Absolute Maximum Ratings (Operating temperature range applies unless otherwise specified) Parameter Input Voltage Operating Junction Temperature Range Storage Temperature Range Symbol Rating Unit VI 35 V TOPR -55 +125 TSTG -55 +150 1.OUT 2.GND 3.IN Electrical Characteristics (VI=26V, IO=40mA,CI=0.33 F,CO=0.1 F, unless otherwise specified) Parameter.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LM78L18 3-TERMINAL 0.1A POSITIVE VOLTAGE REGULATORS Boca
LM78L18 3-Terminal 0.1A Positive Voltage Regulator Fairchild Semiconductor
LM78L18 3-TERMINAL 0.1A POSITIVE VOLTAGE REGULATOR HTC Korea
LM78L18 3-Terminal 150mA Positive Voltage Regulator AP Semiconductor
LM78L18 Low Current Positive Voltage Regulator CYStech

Other Datasheets by Kexin Semiconductor

Part Number Description
LM78L10 Three-Terminal Positive Voltage Regulator
LM78L12 Three-Terminal Positive Voltage Regulator
LM78L15 Three-Terminal Positive Voltage Regulator
LM78L05 Three Terminal Positive Voltage Regulator
LM78L06 Three-Terminal Positive Voltage Regulator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

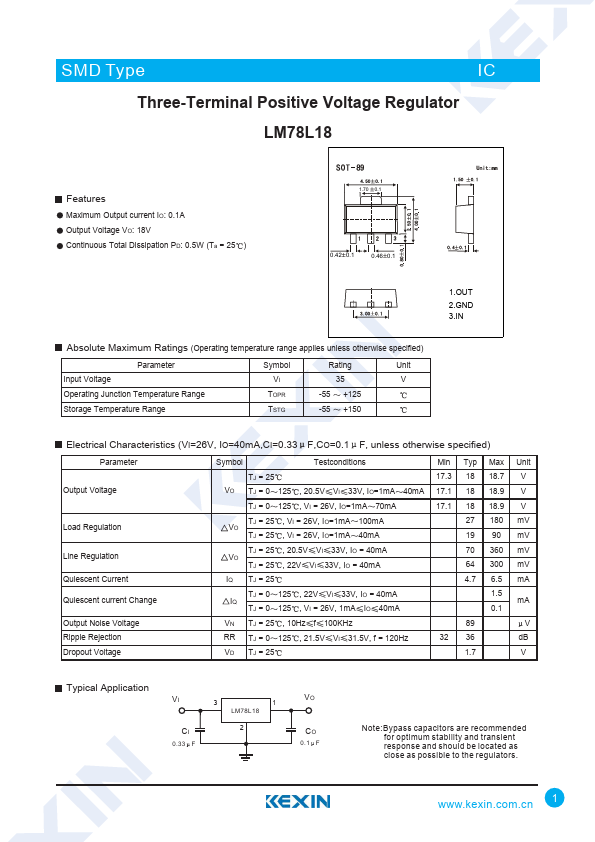

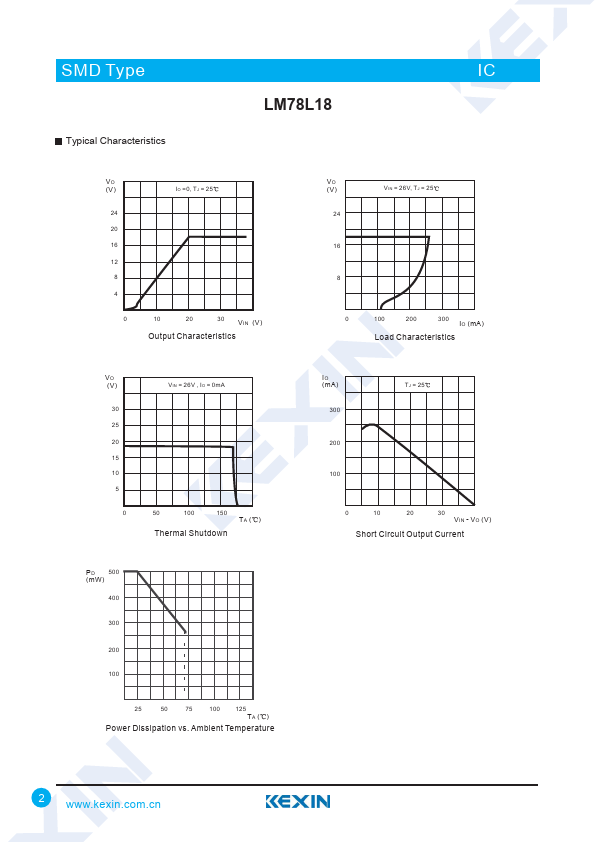

SMD Type IC Three-Terminal Positive Voltage Regulator LM78L18 Features Maximum Output current IO: 0.1A Output Voltage VO: 18V Continuous Total Dissipation PD: 0.5W (Ta = 25 ) 1.70 0.1 0.42 0.1 0.46 0.1 Absolute Maximum Ratings (Operating temperature range applies unless otherwise specified) Parameter Input Voltage Operating Junction Temperature Range Storage Temperature Range Symbol Rating Unit VI 35 V TOPR -55 +125 TSTG -55 +150 1.OUT 2.GND 3.IN Electrical Characteristics (VI=26V, IO=40mA,CI=0.33 F,CO=0.1 F, unless otherwise specified) Parameter Output Voltage Load Regulation Line Regulation Quiescent Current Quiescent current Change Output Noise Voltage Ripple Rejection Dropout Voltage Symbol Testconditions Min Typ Max Unit TJ = 25 17.3 18 18.
