LM78L10 - Three-Terminal Positive Voltage Regulator

Features

  • Maximum Output current IO: 0.1A Output Voltage VO: 10V Continuous Total Dissipation PD: 0.5W (Ta = 25 ) 0.42 0.1 0.46 0.1 1.OUT 2.GND 3.IN Absolute Maximum Ratings (Operating temperature range applies unless otherwise specified) Parameter Input Voltage Operating Junction Temperature Range Storage Temperature Range Symbol Rating Unit VI 30 V TOPR -55 +125 TSTG -55 +150 Electrical Characteristics (VI=17V, IO=40mA,CI=0.33 F,CO=0.1 F, unless otherwise specified) Parameter Output Vol.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LM78L10 3-TERMINAL 0.1A POSITIVE VOLTAGE REGULATORS Boca
LM78L10 Low Current Positive Voltage Regulator CYStech
LM78L10 3-Terminal 0.1A Positive Voltage Regulator Fairchild Semiconductor
LM78L10 3-TERMINAL 0.1A POSITIVE VOLTAGE REGULATOR HTC Korea
LM78L10 3-Terminal 150mA Positive Voltage Regulator AP Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
LM78L12 Three-Terminal Positive Voltage Regulator
LM78L15 Three-Terminal Positive Voltage Regulator
LM78L18 Three-Terminal Positive Voltage Regulator
LM78L05 Three Terminal Positive Voltage Regulator
LM78L06 Three-Terminal Positive Voltage Regulator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

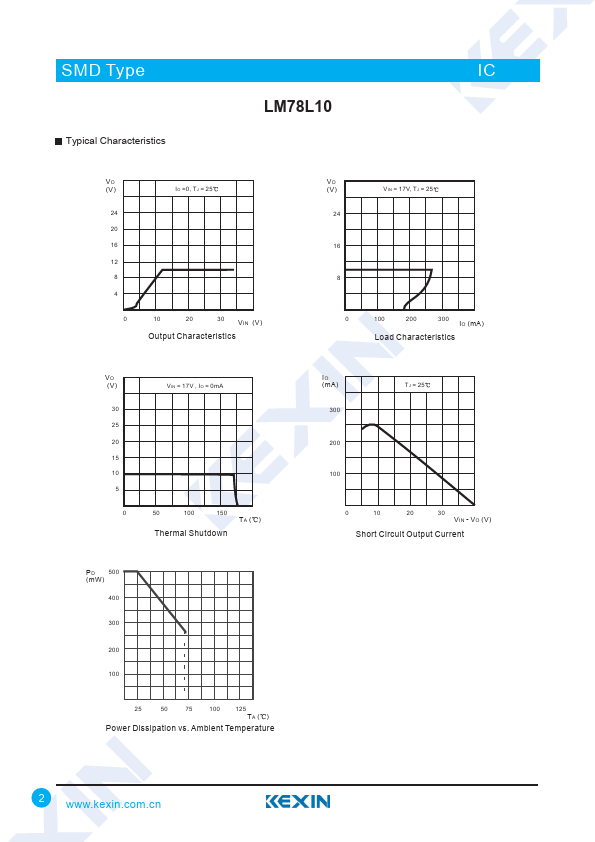

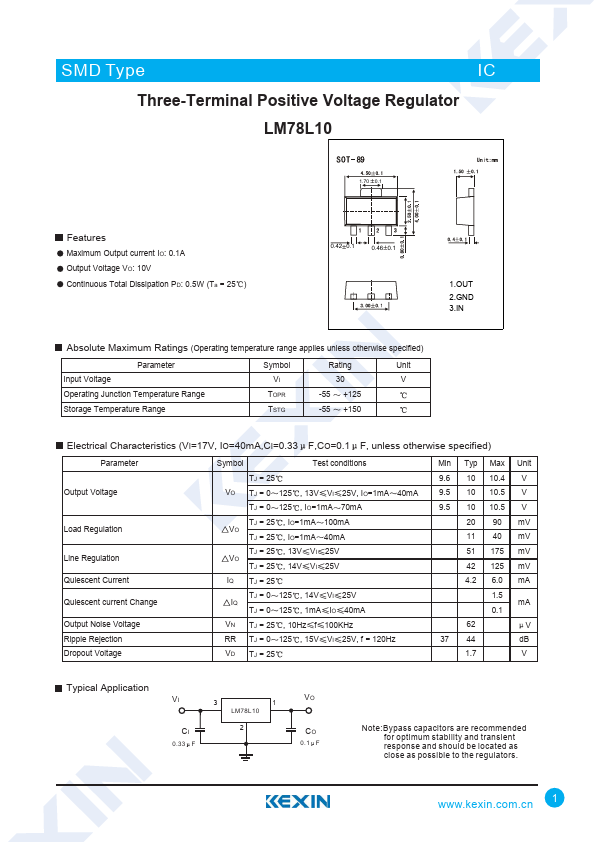

SMD Type IC Three-Terminal Positive Voltage Regulator LM78L10 1.70 0.1 Features Maximum Output current IO: 0.1A Output Voltage VO: 10V Continuous Total Dissipation PD: 0.5W (Ta = 25 ) 0.42 0.1 0.46 0.1 1.OUT 2.GND 3.IN Absolute Maximum Ratings (Operating temperature range applies unless otherwise specified) Parameter Input Voltage Operating Junction Temperature Range Storage Temperature Range Symbol Rating Unit VI 30 V TOPR -55 +125 TSTG -55 +150 Electrical Characteristics (VI=17V, IO=40mA,CI=0.33 F,CO=0.
