KX8N60C - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 600V.
  • ID = 7.5 A (VGS = 10V).
  • RDS(ON) ＜ 1.2Ω (VGS = 10V).
  • Fast switching.
  • Improved dv/dt capability N-Channel MOSFET KX8N60C TO-220 9.90 ± 0.20 (8.70) ø3.60 ± 0.10 (1.70) 1.30 ± 0.10 9.20 ± 0.20 (1.46) (45 ) 13.08 ± 0.20 (1.00) D G S 1.27 ± 0.10 1.52 ± 0.10 123 2.54TYP [2.54 ± 0.20 ] 0.80 ± 0.10 2.54TYP [2.54 ± 0.20 ] 10.00 ± 0.20 (3.00) (3.70) 15.90 ± 0.20 18.95MAX. 2.80 ± 0.10 10.08 ± 0.30 4.50 ± 0.20 1.30 +0.10.
  • 0.05 0.50 +0.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by Kexin Semiconductor

Part Number Description
KX8N60CF N-Channel MOSFET
KX8530 PFM Step-up DC/DC Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

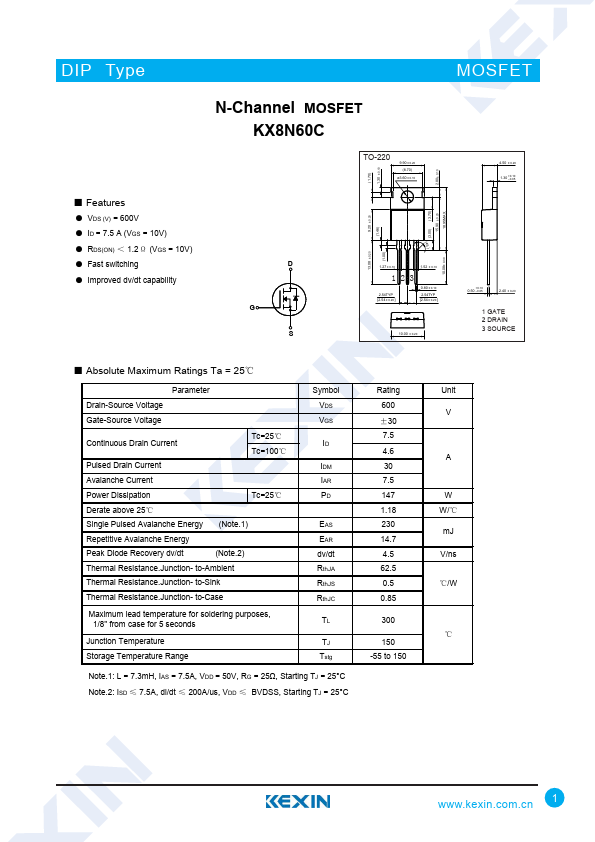

DIP Type MOSFET ■ Features ● VDS (V) = 600V ● ID = 7.5 A (VGS = 10V) ● RDS(ON) ＜ 1.2Ω (VGS = 10V) ● Fast switching ● Improved dv/dt capability N-Channel MOSFET KX8N60C TO-220 9.90 ± 0.20 (8.70) ø3.60 ± 0.10 (1.70) 1.30 ± 0.10 9.20 ± 0.20 (1.46) (45 ) 13.08 ± 0.20 (1.00) D G S 1.27 ± 0.10 1.52 ± 0.10 123 2.54TYP [2.54 ± 0.20 ] 0.80 ± 0.10 2.54TYP [2.54 ± 0.20 ] 10.00 ± 0.20 (3.00) (3.70) 15.90 ± 0.20 18.95MAX. 2.80 ± 0.10 10.08 ± 0.30 4.50 ± 0.20 1.30 +0.10 –0.05 0.50 +0.10 –0.05 2.40 ± 0.
