KX6N80F - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 800V.
  • ID = 7 A (VGS = 10V).
  • RDS(ON) ＜ 1.9Ω (VGS = 10V).
  • Low Gate Charge (Typ. 27 nC).
  • Fast switching.
  • 100% Avalanche Tested D 15.87 ±0.20 3.30 ±0.20 TO-220F ±0.20 3.18±0.20 φ ±0.20 2.54 ±0.20 Unit: mm 0.70 ±0.20 6.68 ±0.20 12.42 ±0.20 1.47max 2.54typ 2.54typ 2.76 ±0.20 9.75 ±0.20 0.80 ±0.20 0.50 ±0.20 G S.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Tc=25℃ Tc=100℃ P.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by Kexin Semiconductor

Part Number Description
KX6N70 N-Channel Enhancement MOSFET
KX6N70F N-Channel Enhancement MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

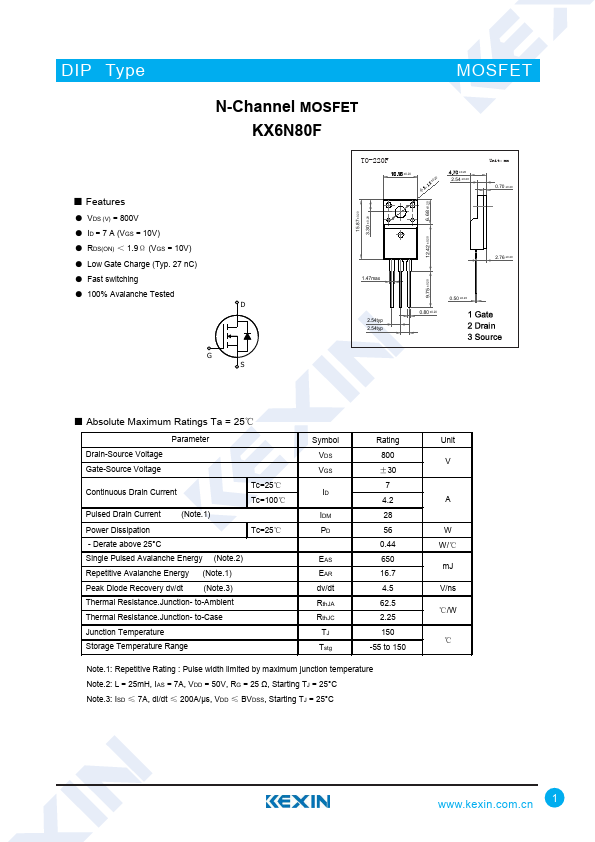

DIP Type MOSFET N-Channel MOSFET KX6N80F ■ Features ● VDS (V) = 800V ● ID = 7 A (VGS = 10V) ● RDS(ON) ＜ 1.9Ω (VGS = 10V) ● Low Gate Charge (Typ. 27 nC) ● Fast switching ● 100% Avalanche Tested D 15.87 ±0.20 3.30 ±0.20 TO-220F ±0.20 3.18±0.20 φ ±0.20 2.54 ±0.20 Unit: mm 0.70 ±0.20 6.68 ±0.20 12.42 ±0.20 1.47max 2.54typ 2.54typ 2.76 ±0.20 9.75 ±0.20 0.80 ±0.20 0.50 ±0.20 G S ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Tc=25℃ Tc=100℃ Pulsed Drain Current (Note.1) Power Dissipation - Derate above 25°C Tc=25℃ Single Pulsed Avalanche Energy (Note.2) Repetitive Avalanche Energy (Note.1) Peak Diode Recovery dv/dt (Note.3) Thermal Resistance.Junction- to-Ambient Thermal Resistance.
