KX6N70F - N-Channel Enhancement MOSFET

Key Features

  • s.
  • VDS (V) = 700V.
  • ID = 6.0A (VGS = 10V).
  • RDS(ON) ＜ 1.8Ω (VGS = 10V).
  • Low gate charge ( typical 16nC) 15.87 ±0.20 3.30 ±0.20 TO-220F ±0.20 3.18 ±0.20 φ ±0.20 2.54 ±0.20 Unit: mm 0.70 ±0.20 6.68 ±0.20 12.42 ±0.20 1.47max 2.54typ 2.54typ 2.76 ±0.20 9.75 ±0.20 0.80 ±0.20 0.50 ±0.20.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Tc=25℃ Tc=100℃ Pulsed Drain Current (Note.1) Avalanche Current.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by Kexin Semiconductor

Part Number Description
KX6N70 N-Channel Enhancement MOSFET
KX6N80F N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

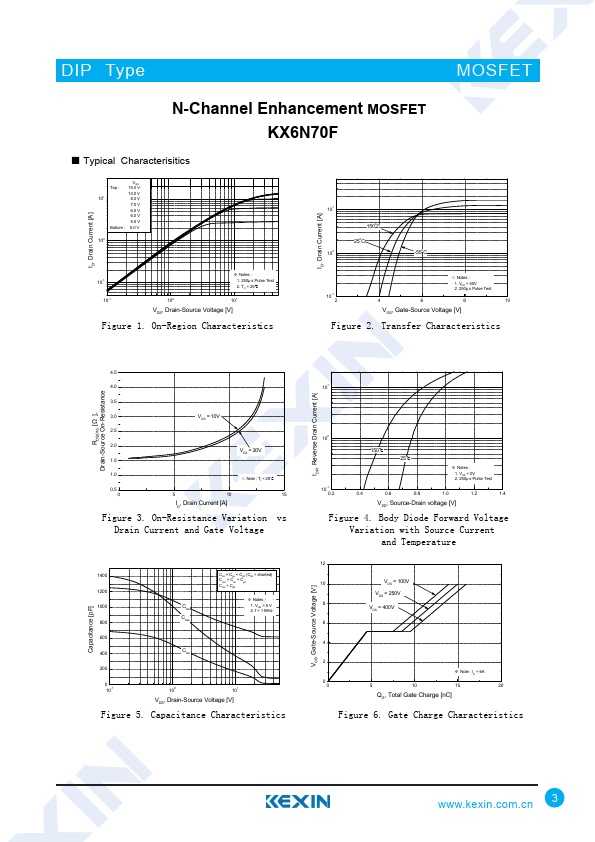

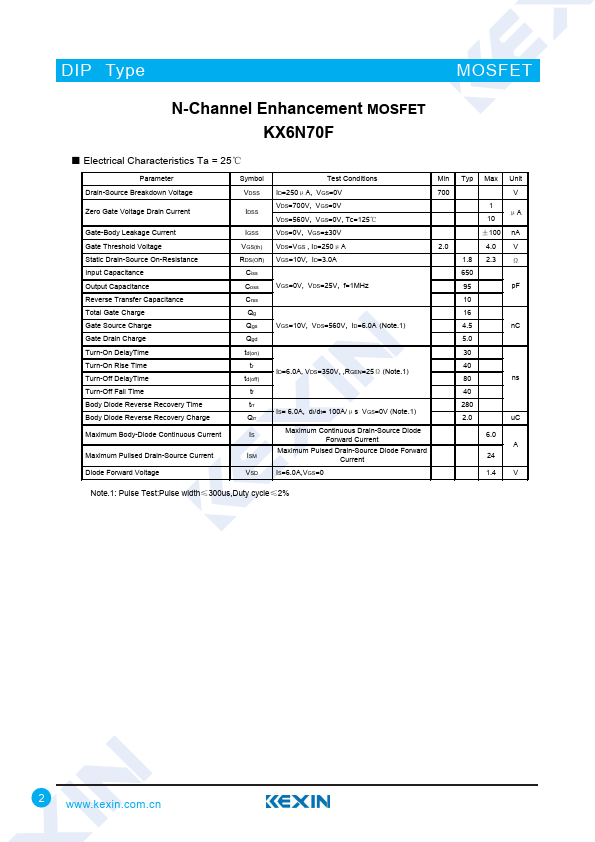

DIP Type N-Channel Enhancement MOSFET KX6N70F MOSFET ■ Features ● VDS (V) = 700V ● ID = 6.0A (VGS = 10V) ● RDS(ON) ＜ 1.8Ω (VGS = 10V) ● Low gate charge ( typical 16nC) 15.87 ±0.20 3.30 ±0.20 TO-220F ±0.20 3.18 ±0.20 φ ±0.20 2.54 ±0.20 Unit: mm 0.70 ±0.20 6.68 ±0.20 12.42 ±0.20 1.47max 2.54typ 2.54typ 2.76 ±0.20 9.75 ±0.20 0.80 ±0.20 0.50 ±0.20 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Tc=25℃ Tc=100℃ Pulsed Drain Current (Note.1) Avalanche Current (Note.1) Repetitive Avalanche Energy (Note.1) Single Pulsed Avalanche Energy (Note.2) Power Dissipation Tc=25℃ Derate above 25℃ Peak Diode Recovery dv/dt (Note.3) Thermal Resistance.Junction- to-Ambient Thermal Resistance.
