KRF7307 - Power MOSFET

Key Features

  • Generation V Technology Ultra Low On-Resistance Dual N and P Channel Mosfet Surface Mount Available in Tape & Reel Dynamic dv/dt Rating Fast Switching ICIC Absolute Maximum Ratings Ta = 25 Parameter Symbol 10 Sec. Pulse Drain Current, VGS @ 4.5V Ta = 25 ID Continuous Drain Current VGS @ 4.5V Ta = 25 ID Continuous Drain Current VGS @ 4.5V Ta = 70 ID Pulsed Drain Current.
  • 1 IDM Power Dissipation @Ta= 25 PD Linear Derating Factor (PCB Mount) Peak Diode Recovery dv/dt.
  • 2 dv.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KRF-V6300D AUDIO VIDEO CONTROL CENTER INSTRUCTION MANUAL Kenwood
KRF-V7050D Audio Video Surround Receiver Kenwood
KRF-V7510D AV SURROUND RECEIVER SERVICE MANUAL Kenwood
KRF-V8010D AV SURROUND RECEIVER SERVICE MANUAL Kenwood
KRF-X9070D AUDIO VIDEO SURROUND RECEIVER MANUAL Kenwood

Other Datasheets by Kexin Semiconductor

Part Number Description
KRF7301 Power MOSFET
KRF7309 Power MOSFET
KRF7313 Power MOSFET
KRF7317 Power MOSFET
KRF7319 Power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

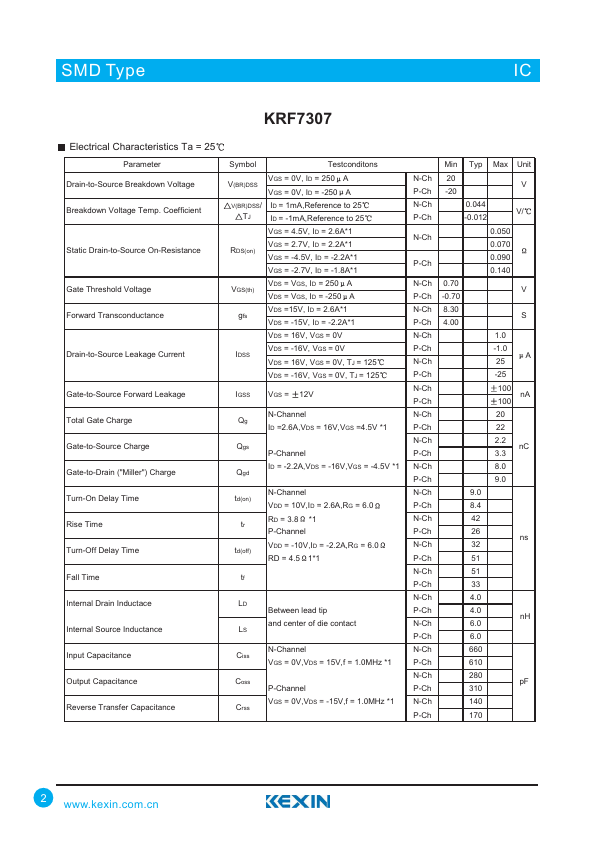

SMD Type HEXFET Power MOSFET KRF7307 Features Generation V Technology Ultra Low On-Resistance Dual N and P Channel Mosfet Surface Mount Available in Tape & Reel Dynamic dv/dt Rating Fast Switching ICIC Absolute Maximum Ratings Ta = 25 Parameter Symbol 10 Sec. Pulse Drain Current, VGS @ 4.5V Ta = 25 ID Continuous Drain Current VGS @ 4.5V Ta = 25 ID Continuous Drain Current VGS @ 4.5V Ta = 70 ID Pulsed Drain Current *1 IDM Power Dissipation @Ta= 25 PD Linear Derating Factor (PCB Mount) Peak Diode Recovery dv/dt *2 dv/dt Gate-to-Source Voltage VGS Junction and Storage Temperature Range TJ, TSTG Maximum Junction-to-Ambient*3 R JA *1 Repetitive rating; pulse width limited by max. junction temperature. N-Channel P-Channel 5.7 -4.7 5.2 -4.3 4.1 -3.4 21 -17 2.
