KQB9N50 - 500V N-Channel MOSFET

Key Features

  • 9A, 500 V. RDS(ON) = 0.73 @ VGS = 10 V Low gate charge (typical 28nC) Low Crss(typical 20 pF) Fast switching 100% avalanche tested lmproved dv/dt capability + 5 .2 8 0.2 -0.2 + 8 .7 0.2 -0.2 TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm + 1 .2 7 0.1 -0.1 5.60 + 0 .2 -0.2 5 1.27+0.1 -0.1 0.1max +0.2 2.54-0.2 +0.1 5.08-0.1 0.81+0.1 -0.1 2.54 + 2 .5 4 0.2 -0.2 0.4+0.2 -0.2 1 5 . 2 11Ggaattee 22Ddrraaiinn 33Ssoouurrccee Absolute Maximum Ratings Ta = 25 Parameter Drain to S.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by Kexin Semiconductor

Part Number Description
KQB630 200V N-Channel MOSFET
KQB6N25 250V N-Channel MOSFET
KQB6N70 700V N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

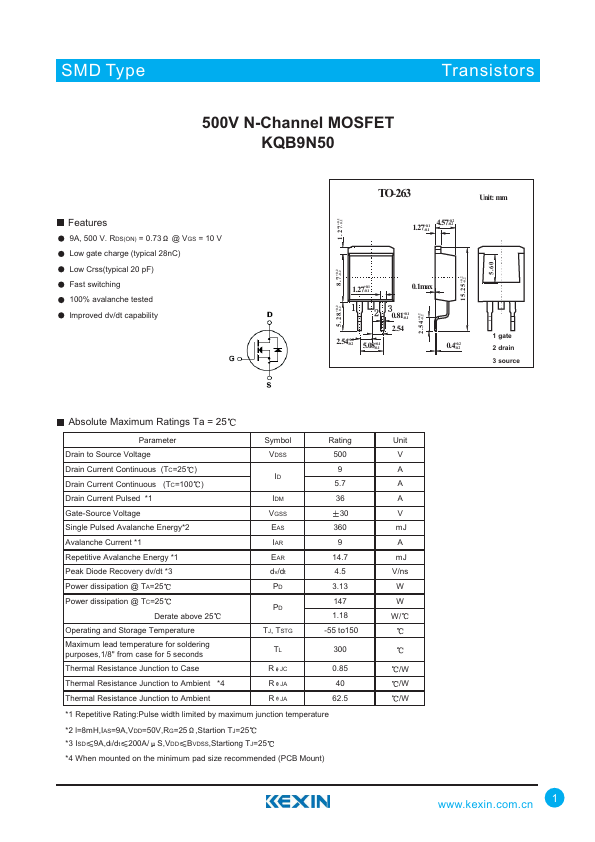

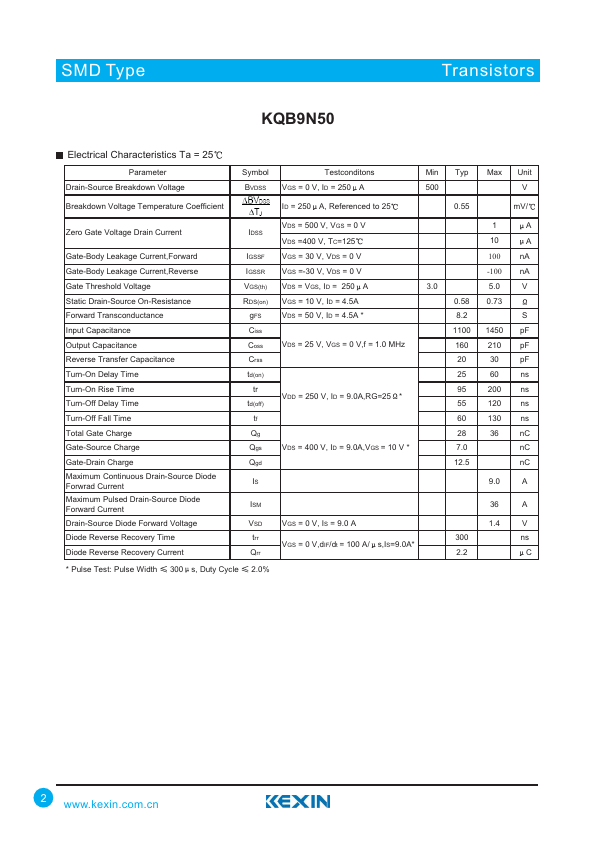

SMD Type TransistIoCrs 500V N-Channel MOSFET KQB9N50 Features 9A, 500 V. RDS(ON) = 0.73 @ VGS = 10 V Low gate charge (typical 28nC) Low Crss(typical 20 pF) Fast switching 100% avalanche tested lmproved dv/dt capability + 5 .2 8 0.2 -0.2 + 8 .7 0.2 -0.2 TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm + 1 .2 7 0.1 -0.1 5.60 + 0 .2 -0.2 5 1.27+0.1 -0.1 0.1max +0.2 2.54-0.2 +0.1 5.08-0.1 0.81+0.1 -0.1 2.54 + 2 .5 4 0.2 -0.2 0.4+0.2 -0.2 1 5 .
