KQB5N60 - 600V N-Channel MOSFET

Key Features

  • 5.0A, 600 V. RDS(ON) = 2.0 @ VGS = 10 V Low gate charge (typical 16nC) Low Crss(typical 9.0pF) Fast switching 100% avalanche tested lmproved dv/dt capability + 5 .2 8 0.2 -0.2 + 8 .7 0.2 -0.2 TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm + 1 .2 7 0.1 -0.1 5.60 + 0 .2 -0.2 5 1.27+0.1 -0.1 0.1max +0.2 2.54-0.2 +0.1 5.08-0.1 0.81+0.1 -0.1 2.54 + 2 .5 4 0.2 -0.2 0.4+0.2 -0.2 1 5 . 2 11Ggaattee 22Ddrraaiinn 33Ssoouurrccee Absolute Maximum Ratings Ta = 25 Parameter Drain to.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by Kexin Semiconductor

Part Number Description
KQB5N20 200V N-Channel MOSFET
KQB2N30 300V N-Channel MOSFET
KQB2N50 500V N-Channel MOSFET
KQB2N60 600V N-Channel MOSFET
KQB2N80 800V N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

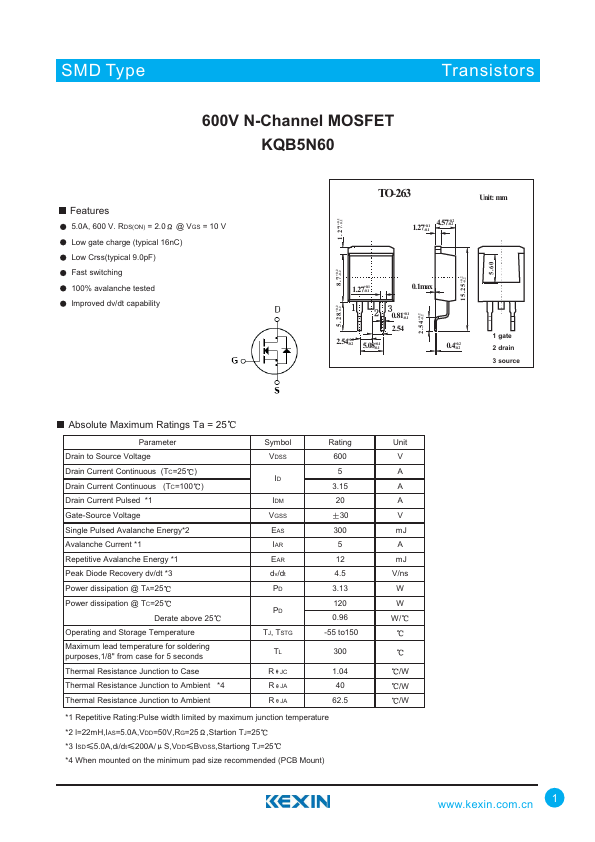

SMD Type TransistIoCrs 600V N-Channel MOSFET KQB5N60 Features 5.0A, 600 V. RDS(ON) = 2.0 @ VGS = 10 V Low gate charge (typical 16nC) Low Crss(typical 9.0pF) Fast switching 100% avalanche tested lmproved dv/dt capability + 5 .2 8 0.2 -0.2 + 8 .7 0.2 -0.2 TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm + 1 .2 7 0.1 -0.1 5.60 + 0 .2 -0.2 5 1.27+0.1 -0.1 0.1max +0.2 2.54-0.2 +0.1 5.08-0.1 0.81+0.1 -0.1 2.54 + 2 .5 4 0.2 -0.2 0.4+0.2 -0.2 1 5 .
