KQB5N20 - 200V N-Channel MOSFET

Key Features

  • 4.5A, 200 V. RDS(ON) = 1.2 @ VGS = 10 V Low gate charge (typical 6.0nC) Low Crss(typical 6.0pF) Fast switching 100% avalanche tested lmproved dv/dt capability + 5 .2 8 0.2 -0.2 + 8 .7 0.2 -0.2 TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm + 1 .2 7 0.1 -0.1 5.60 + 0 .2 -0.2 5 1.27+0.1 -0.1 0.1max +0.2 2.54-0.2 +0.1 5.08-0.1 0.81+0.1 -0.1 2.54 + 2 .5 4 0.2 -0.2 0.4+0.2 -0.2 1 5 . 2 11Ggaattee 22Ddrraaiinn 33Ssoouurrccee Absolute Maximum Ratings Ta = 25 Parameter Drain to.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by Kexin Semiconductor

Part Number Description
KQB5N60 600V N-Channel MOSFET
KQB2N30 300V N-Channel MOSFET
KQB2N50 500V N-Channel MOSFET
KQB2N60 600V N-Channel MOSFET
KQB2N80 800V N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

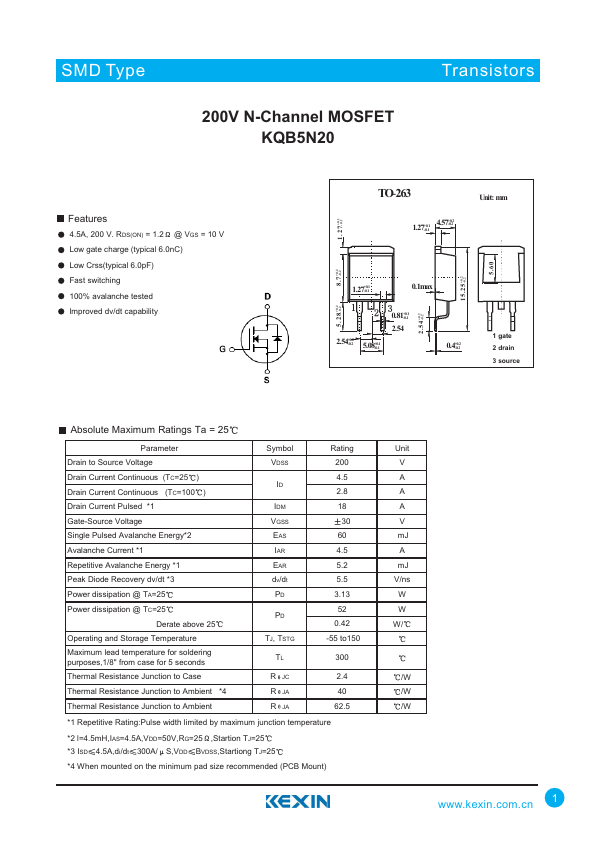

SMD Type 200V N-Channel MOSFET KQB5N20 TransistIoCrs Features 4.5A, 200 V. RDS(ON) = 1.2 @ VGS = 10 V Low gate charge (typical 6.0nC) Low Crss(typical 6.0pF) Fast switching 100% avalanche tested lmproved dv/dt capability + 5 .2 8 0.2 -0.2 + 8 .7 0.2 -0.2 TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm + 1 .2 7 0.1 -0.1 5.60 + 0 .2 -0.2 5 1.27+0.1 -0.1 0.1max +0.2 2.54-0.2 +0.1 5.08-0.1 0.81+0.1 -0.1 2.54 + 2 .5 4 0.2 -0.2 0.4+0.2 -0.2 1 5 .
