KM7660 - Voltage Converter

Description

The KM7660 is a pin-compatible replacement for the Industry standard ICL7660 charge pump voltage converter.

It converts a +1.5 V to +10 V input to a corresponding -1.5 V to -10 V output using only two low-cost capacitors, eliminating inductors and their associated cost, size and EMI.

Features

  • °Converts +5.0 V Supply to -5.0 V Supply °Wide Input Voltage Range: 1.5 V to 10 V °Efficient Voltage Conversion: 99.9% °Excellent Power Efficiency: 98% °Low Power Supply: 8çA @ 5.0 VIN °Low Cost and Easy to Use - Only Two External Capacitors Required °Available in Small Outline (SO) Package °ESD Protection: œ2.5 kV °No Dx Diode Required for High Voltage Operation PIN.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KM702 Sensor MEGATRON
KM7101 4.9MHz Rail-to-Rail I/O Amplifier Fairchild Semiconductor
KM718FV4021 128Kx36 & 256Kx18 Synchronous Pipelined SRAM Samsung semiconductor
KM718V089 512Kx36 & 1Mx18 Synchronous SRAM Samsung semiconductor
KM718V847 128Kx36 & 256Kx18 Flow-Through NtRAM Samsung Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

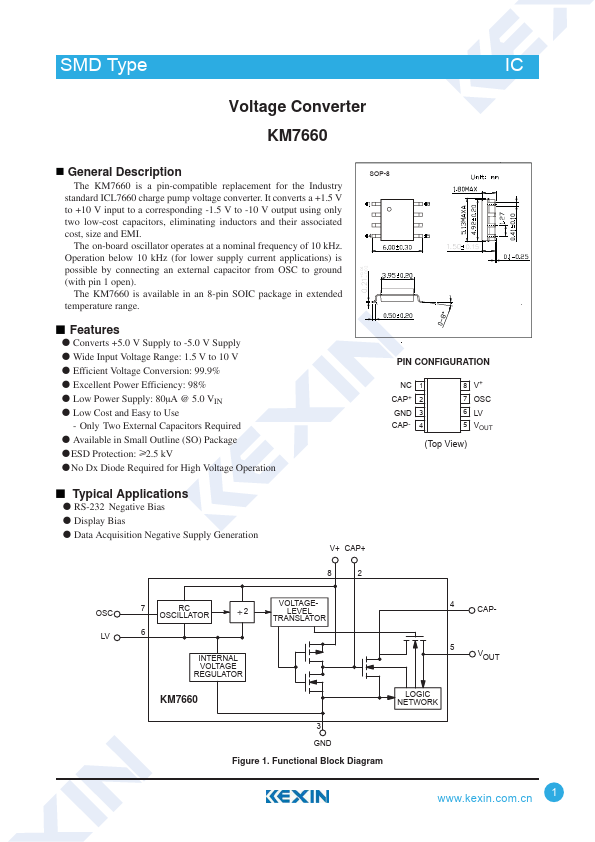

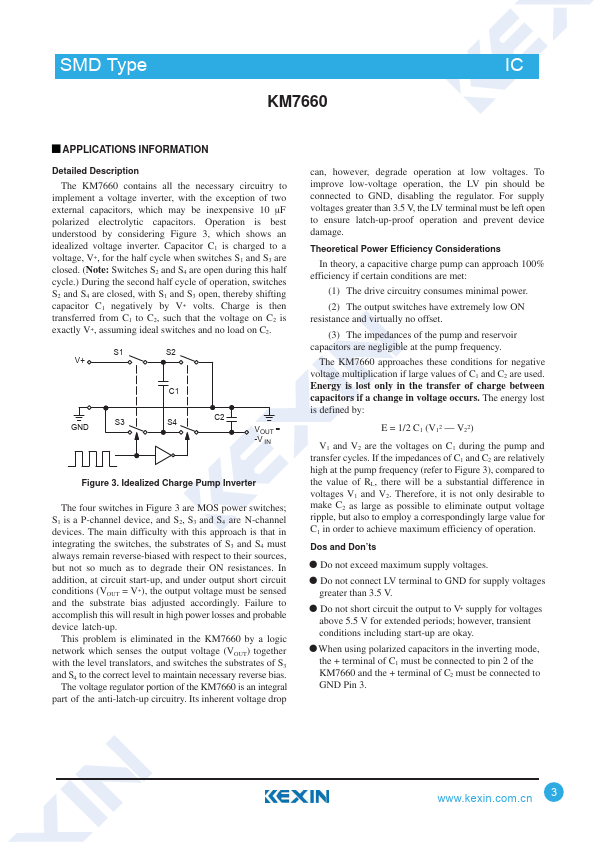

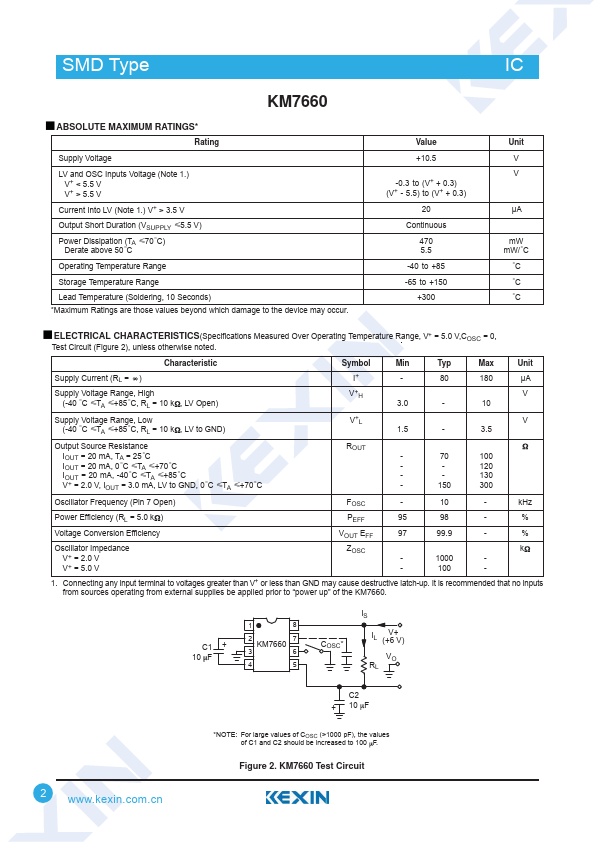

SMD Type IC Voltage Converter KM7660 Ƶ General Description The KM7660 is a pin-compatible replacement for the Industry standard ICL7660 charge pump voltage converter. It converts a +1.5 V to +10 V input to a corresponding -1.5 V to -10 V output using only two low-cost capacitors, eliminating inductors and their associated cost, size and EMI. The on-board oscillator operates at a nominal frequency of 10 kHz. Operation below 10 kHz (for lower supply current applications) is possible by connecting an external capacitor from OSC to ground (with pin 1 open). The KM7660 is available in an 8-pin SOIC package in extended temperature range. 0.21+-00..0042 SOP-8 1.50 0.15 Ƶ Features °Converts +5.0 V Supply to -5.0 V Supply °Wide Input Voltage Range: 1.
