KI10N03 - N-Channel MOSFET

Key Features

  • ƽ VDS (V) = 30V ƽ ID = 10 A (VGS = 10V) ƽ RDS(ON) ˘ 13.5m¡ (VGS = 10V) ƽ RDS(ON) ˘ 20m¡ (VGS = 4.5V) D +0.04 0.21 -0.02 SOP-8 MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain G S Ƶ Absolute Maximum Ratings Ta = 25ć Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (Note.1) Pulsed Drain Current Power Dissipation Thermal Resistance. Junction- to-Ambient Thermal Resistance. Junction- to-Case Junction Temperature Storage Temper.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by Kexin Semiconductor

Part Number Description
KI10N06DY N-Channel MOSFET
KI10P40DY P-Channel MOSFET
KI138K N-Channel MOSFET
KI1563DH Complementary 20-V (D-S) Low-Threshold MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

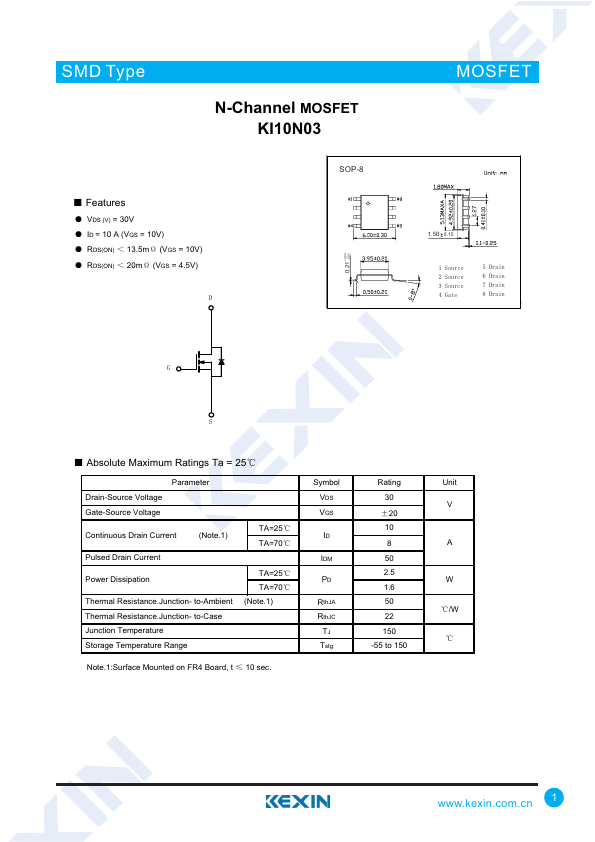

SMD Type N-Channel MOSFET KI10N03 Ƶ Features ƽ VDS (V) = 30V ƽ ID = 10 A (VGS = 10V) ƽ RDS(ON) ˘ 13.5m¡ (VGS = 10V) ƽ RDS(ON) ˘ 20m¡ (VGS = 4.5V) D +0.04 0.21 -0.02 SOP-8 MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain G S Ƶ Absolute Maximum Ratings Ta = 25ć Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (Note.1) Pulsed Drain Current Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Case Junction Temperature Storage Temperature Range TA=25ć TA=70ć TA=25ć TA=70ć (Note.1) Note.1:Surface Mounted on FR4 Board, t İ 10 sec. Symbol VDS VGS ID IDM PD RthJA RthJC TJ Tstg Rating 30 ±20 10 8 50 2.5 1.6 50 22 150 -55 to 150 Unit V A W ć/W ć www.kexin.com.
