KI138K - N-Channel MOSFET

Features

  • s.
  • VDS (V) = 50V.
  • ID = 500 mA (VGS = 10V).
  • RDS(ON) ＜ 1.6Ω (VGS = 10V).
  • RDS(ON) ＜ 2.5Ω (VGS = 4.5V).
  • RDS(ON) ＜ 4.5Ω (VGS = 2.5V).
  • ESD Protected 1.5KV HBM +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 0-0.1 +0.1 0.68 -0.1 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Dr.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by Kexin Semiconductor

Part Number Description
KI10P40DY P-Channel MOSFET
KI1563DH Complementary 20-V (D-S) Low-Threshold MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

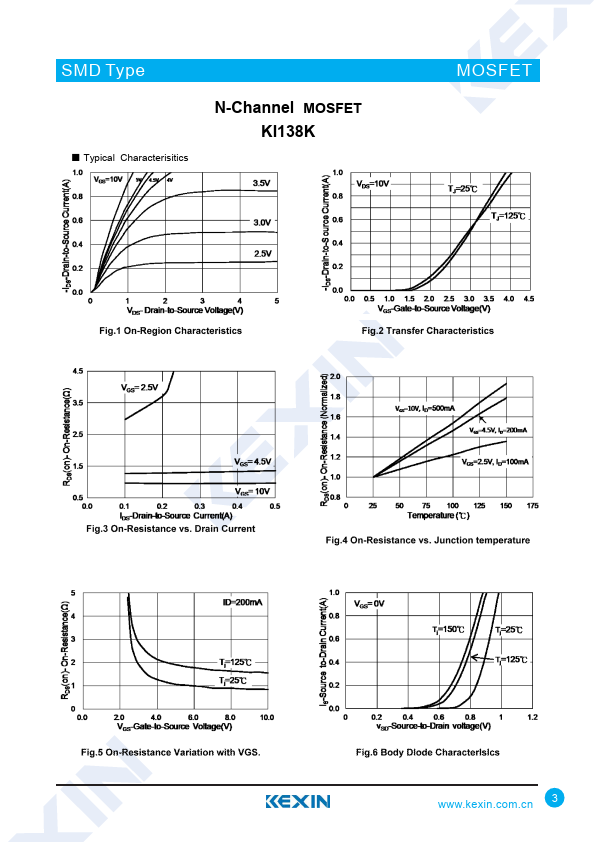

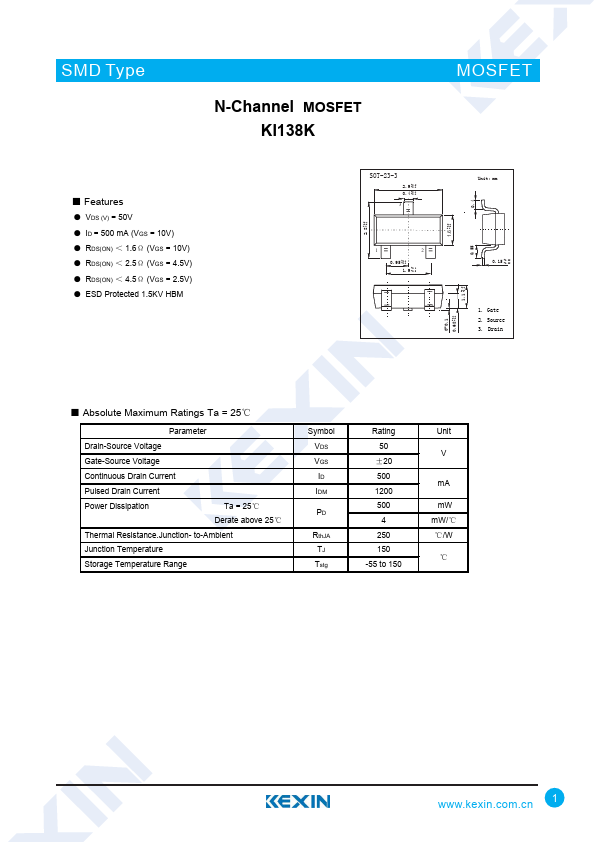

SMD Type N-Channel MOSFET KI138K MOSFET ■ Features ● VDS (V) = 50V ● ID = 500 mA (VGS = 10V) ● RDS(ON) ＜ 1.6Ω (VGS = 10V) ● RDS(ON) ＜ 2.5Ω (VGS = 4.5V) ● RDS(ON) ＜ 4.5Ω (VGS = 2.5V) ● ESD Protected 1.5KV HBM +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 0-0.1 +0.1 0.68 -0.1 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Power Dissipation Ta = 25℃ Derate above 25℃ Thermal Resistance.
