KDS8958 - Dual N & P-Channel PowerTrench MOSFET

Key Features

  • N-Channel 7.0 A, 30 V RDS(ON) = 0.028 @ VGS = 10 V RDS(ON) = 0.040 @ VGS =4.5V P-Channel -5 A, -30 V RDS(ON) = 0.052 @ VGS =- 10 V RDS(ON) = 0.080 @ VGS =-4.5V Fast switching speed High power and handling capability in a widely used surface mount package Absolute Maximum Ratings Ta = 25 Parameter Symbol N-Channel P- Channel Unit Drain to Source Voltage VDSS 30 30 V Gate to Source Voltage VGS 20 20 V Drain Current Continuous (Note 1a) Drain Current Pulsed 7 ID 20 -5 A -20 A.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KDS Intrusion Switches ITT Industries
KDS112 SILICON EPITAXIAL TYPE DIODE KEC
KDS112E SILICON EPITAXIAL TYPE DIODE KEC
KDS113 SILICON EPITAXIAL TYPE DIODE KEC
KDS114 SILICON EPITAXIAL PLANAR DIODE KEC

Other Datasheets by Kexin Semiconductor

Part Number Description
KDS8928A Dual N & P-Channel Enhancement Mode Field Effect Transistor
KDS8333C 60V Complementary PowerTrench MOSFET
KDS181-RTR Silicon Epitaxial Planar Diode
KDS2572 N-Channel UltraFET Trench MOSFET
KDS3512 80V N-Channel PowerTrench MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

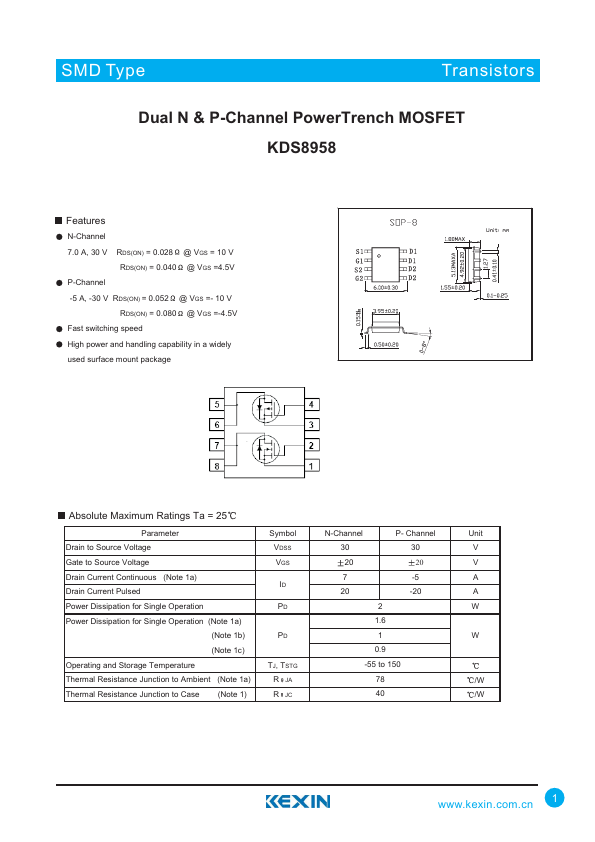

SMD Type TransistIoCrs Dual N & P-Channel PowerTrench MOSFET KDS8958 Features N-Channel 7.0 A, 30 V RDS(ON) = 0.028 @ VGS = 10 V RDS(ON) = 0.040 @ VGS =4.5V P-Channel -5 A, -30 V RDS(ON) = 0.052 @ VGS =- 10 V RDS(ON) = 0.080 @ VGS =-4.5V Fast switching speed High power and handling capability in a widely used surface mount package Absolute Maximum Ratings Ta = 25 Parameter Symbol N-Channel P- Channel Unit Drain to Source Voltage VDSS 30 30 V Gate to Source Voltage VGS 20 20 V Drain Current Continuous (Note 1a) Drain Current Pulsed 7 ID 20 -5 A -20 A Power Dissipation for Single Operation PD 2 W Power Dissipation for Single Operation (Note 1a) 1.6 (Note 1b) PD 1 W (Note 1c) 0.
