KA100M317 - Three Terminal Positive Voltage Regulator

Features

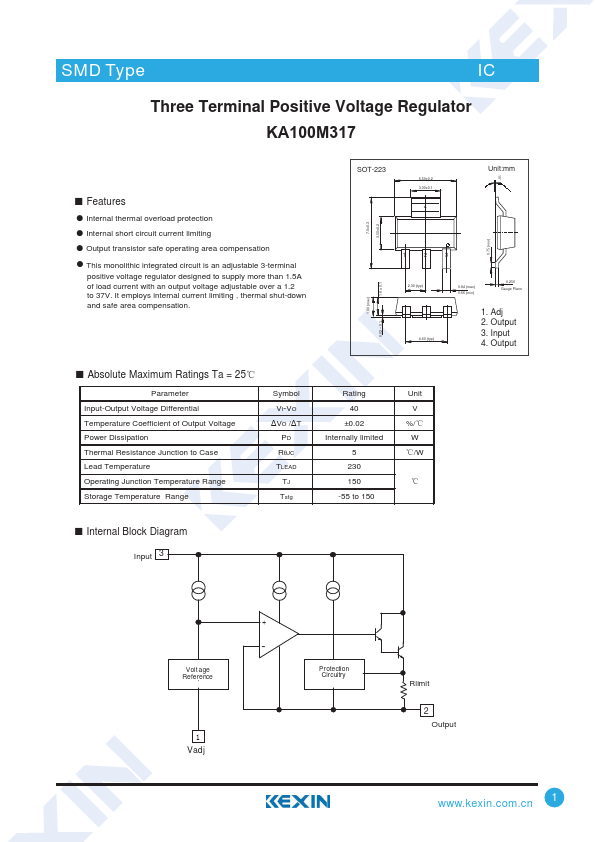

  • ƽ Internal thermal overload protection ƽ Internal short circuit current limiting ƽ Output transistor safe operating area compensation Ɣ This monolithic integrated circuit is an adjustable 3-terminal positive voltage regulator designed to supply more than 1.5A of load current with an output voltage adjustable over a 1.2 to 37V. It employs internal current limiting , thermal shut-down and safe area compensation. SOT-223 6.50±0.2 3.00±0.1 4 10b Unit:mm 7.0±0.3 3.50±0.2 0.75 (min) 1.6 ± 0.1.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KA100O015E-BJTT 2CKE DDP Mobile DDR SDRAM Samsung semiconductor
KA101-01 400 - 2700MHz Medium Power Amplifier KCB
KA101-10 400 - 2700MHz Medium Power Amplifier KCB
KA101-54 400 - 2700MHz Medium Power Amplifier KCB
KA1031S28 Potentiometer NTE Electronics

Other Datasheets by Kexin Semiconductor

Part Number Description
KA10O130 High Driver Regulator
KA10O133 High Driver Regulator
KA10O136 High Driver Regulator
KA10O144 High Driver Regulator
KA10O150 High Driver Regulator

Full PDF Text Transcription

Click to expand full text

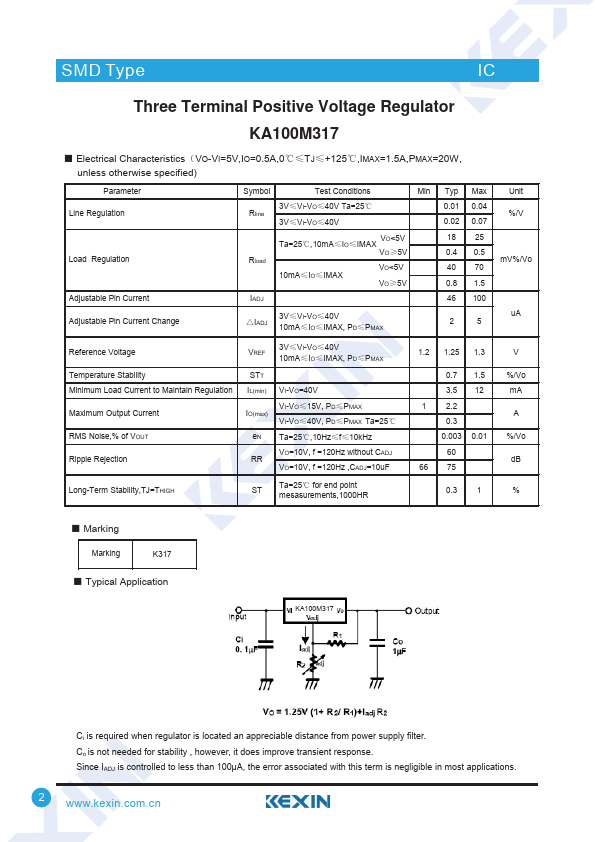

SMD Type IC Three Terminal Positive Voltage Regulator .$0 Ƶ Features ƽ Internal thermal overload protection ƽ Internal short circuit current limiting ƽ Output transistor safe operating area compensation Ɣ This monolithic integrated circuit is an adjustable 3-terminal positive voltage regulator designed to supply more than 1.5A of load current with an output voltage adjustable over a 1.2 to 37V. It employs internal current limiting , thermal shut-down and safe area compensation. SOT-223 6.50±0.2 3.00±0.1 4 10b Unit:mm 7.0±0.3 3.50±0.2 0.75 (min) 1.6 ± 0.1 1.80 (max) 1 2 3 2.30 (typ) 4.60 (typ) 0.84 (max) 0.66 (min) 0.250 Gauge Plane 1. Adj 2. Output 3. Input 4. Output 0.02 ~ 0.
