KA10O130 - High Driver Regulator

Features

  • ƽ Low power consumption ƽ Low voltage drop ƽ Low temperature coefficient ƽ High input voltage (up to 24V) ƽ High output current : 100mA SOT-89 1.70 0.1 0.42 0.1 0.46 0.1 IC Unit:mm 1.GND 2.VIN 3.VOUT Ƶ Selection Table Part No. KA10O130 KA10O133 KA10O136 KA10O144 KA10O150 KA10O180 Output Voltage 3V 3.3V 3.6V 4.4V 5V 8V Tolerance ±5% ±5% ±5% ±5% ±5% ±5% Ƶ Absolute Maximum Ratings Ta = 25ć Parameter Supply Voltage Power Consumption Junction Temperature Operating Temperature Storage Tempera.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KA100O015E-BJTT 2CKE DDP Mobile DDR SDRAM Samsung semiconductor
KA101-01 400 - 2700MHz Medium Power Amplifier KCB
KA101-10 400 - 2700MHz Medium Power Amplifier KCB
KA101-54 400 - 2700MHz Medium Power Amplifier KCB
KA1031S28 Potentiometer NTE Electronics

Other Datasheets by Kexin Semiconductor

Part Number Description
KA10O133 High Driver Regulator
KA10O136 High Driver Regulator
KA10O144 High Driver Regulator
KA10O150 High Driver Regulator
KA10O180 High Driver Regulator

Full PDF Text Transcription

Click to expand full text

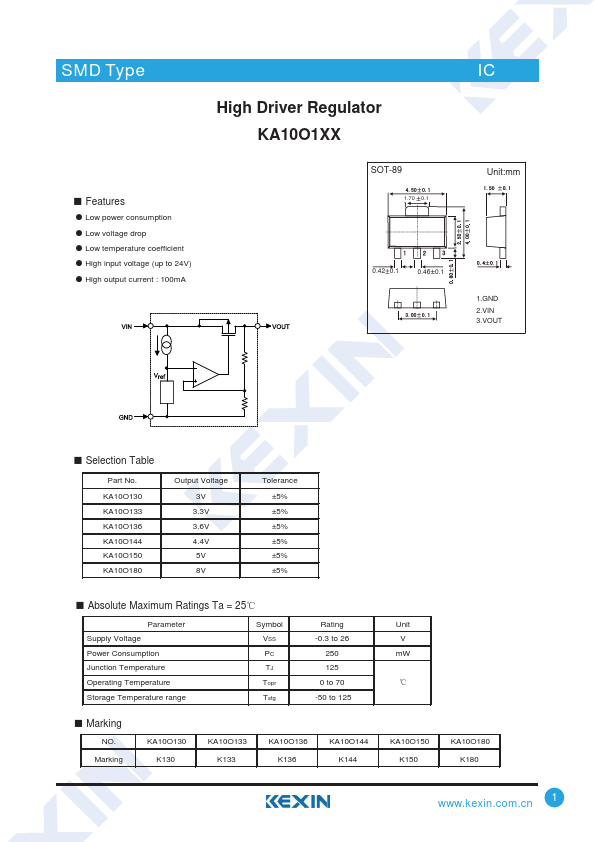

SMD Type High Driver Regulator KA10O1XX Ƶ Features ƽ Low power consumption ƽ Low voltage drop ƽ Low temperature coefficient ƽ High input voltage (up to 24V) ƽ High output current : 100mA SOT-89 1.70 0.1 0.42 0.1 0.46 0.1 IC Unit:mm 1.GND 2.VIN 3.VOUT Ƶ Selection Table Part No. KA10O130 KA10O133 KA10O136 KA10O144 KA10O150 KA10O180 Output Voltage 3V 3.3V 3.6V 4.4V 5V 8V Tolerance ±5% ±5% ±5% ±5% ±5% ±5% Ƶ Absolute Maximum Ratings Ta = 25ć Parameter Supply Voltage Power Consumption Junction Temperature Operating Temperature Storage Temperature range Symbol VSS PC TJ Topr Tstg Rating -0.3 to 26 250 125 0 to 70 -50 to 125 Ƶ Marking NO. Marking KA10O130 K130 KA10O133 K133 KA10O136 K136 KA10O144 K144 Unit V mW ć KA10O150 K150 KA10O180 K180 www.kexin.com.
