FDC3612 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 100V.
  • ID = 2.6 A (VGS = 10V).
  • RDS(ON) ＜ 125mΩ (VGS = 10V).
  • RDS(ON) ＜ 135mΩ (VGS = 6V).
  • Fast switching speed 1 6 2 5 3 4 ( SOT-23-6 ) 0.4+0.1 -0.1 6 5 4 1 2 3 +0.01 -0.01 +0.2 -0.1 0-0.1 +0.1 0.68 -0.1 +0.2 1.6 -0.1 +0.2 2.8 -0.1 +0.1 1.1 -0.1 0.55 0.4 MOSFET Unit: mm 0.15 +0.02 -0.02 1.Drain 4.Source 2.Drain 5.Drain 3.Gate 6.Drain.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Dr.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FDC3612 N-Channel MOSFET Fairchild Semiconductor
FDC3612 N-Channel MOSFET ON Semiconductor
FDC3616N N-Channel MOSFET Fairchild Semiconductor
FDC3601N N-Channel MOSFET Fairchild Semiconductor
FDC3601N Dual N-Channel MOSFET ON Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
FDC3612A N-Channel MOSFET
FDC2512 N-Channel Enhancement MOSFET
FDC86244 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

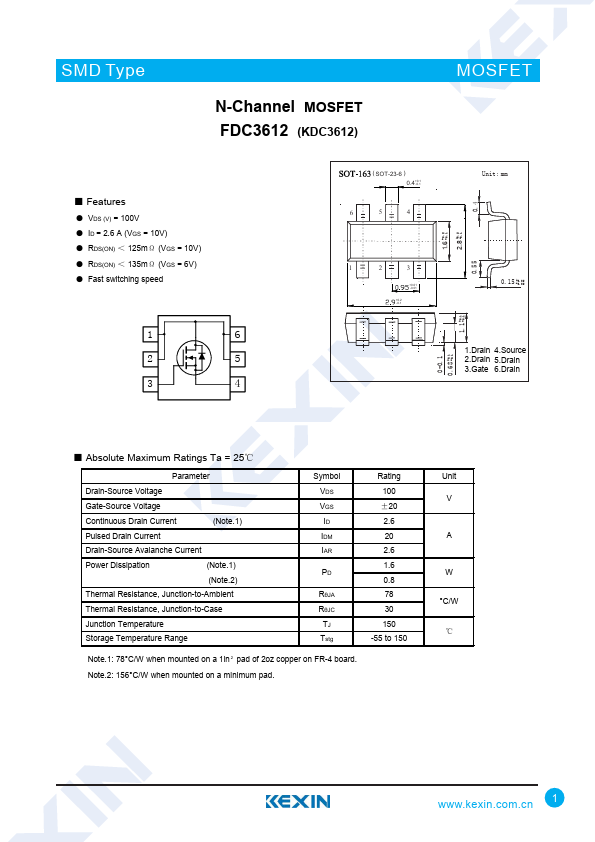

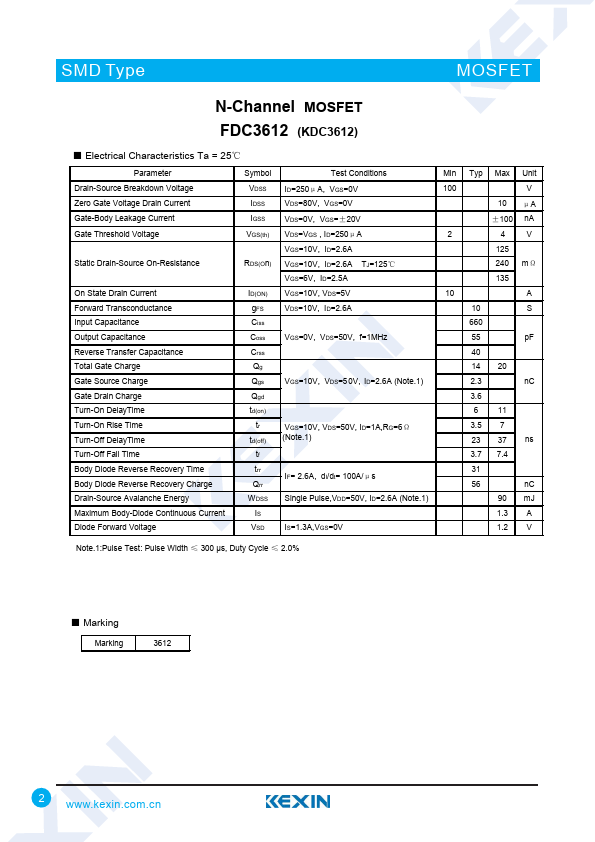

SMD Type N-Channel MOSFET FDC3612 (KDC3612) ■ Features ● VDS (V) = 100V ● ID = 2.6 A (VGS = 10V) ● RDS(ON) ＜ 125mΩ (VGS = 10V) ● RDS(ON) ＜ 135mΩ (VGS = 6V) ● Fast switching speed 1 6 2 5 3 4 ( SOT-23-6 ) 0.4+0.1 -0.1 6 5 4 1 2 3 +0.01 -0.01 +0.2 -0.1 0-0.1 +0.1 0.68 -0.1 +0.2 1.6 -0.1 +0.2 2.8 -0.1 +0.1 1.1 -0.1 0.55 0.4 MOSFET Unit: mm 0.15 +0.02 -0.02 1.Drain 4.Source 2.Drain 5.Drain 3.Gate 6.Drain ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (Note.1) Pulsed Drain Current Drain-Source Avalanche Current Power Dissipation (Note.1) (Note.
