BT169DW - Thyristors logic level

Key Features

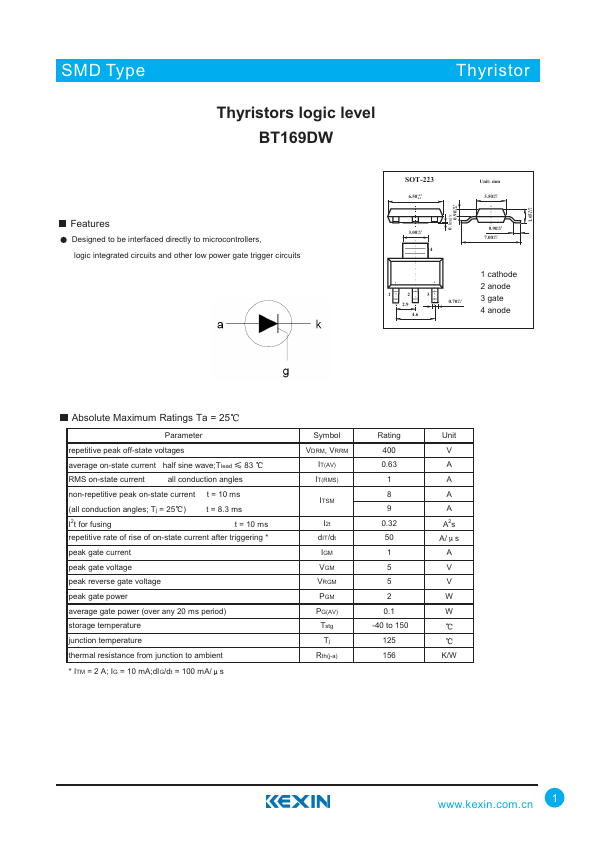

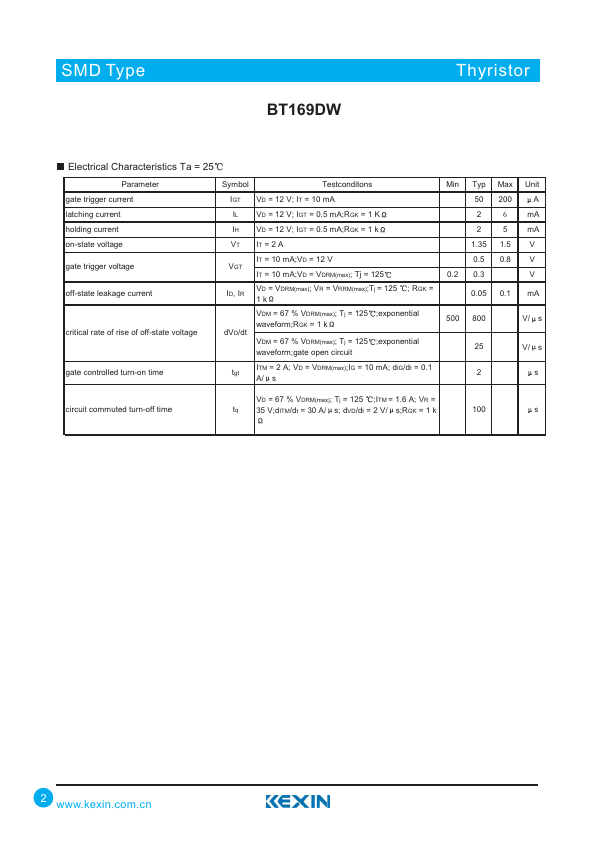

  • Designed to be interfaced directly to microcontrollers, logic integrated circuits and other low power gate trigger circuits SOT-223 6.50+0.2 -0.2 Unit: mm 3.50+0.2 -0.2 3.00+0.1 -0.1 4 0.90+0.2 -0.2 7.00+0.3 -0.3 1 2 3 2.9 4.6 0.70+0.1 -0.1 1 cathode 2 anode 3 gate 4 anode Absolute Maximum Ratings Ta = 25 Parameter repetitive peak off-state voltages average on-state current half sine wave;Tlead 83 RMS on-state current all conduction angles non-repetitive peak on-state current t.
