BT169-600 - Silicon Controlled Rectifiers

Key Features

  • s.
  • Blocking voltage to 600 V.
  • Average on-state current to 0.5 A.
  • General purpose switching SOT-89 Thyristor a k g 1. Gate 2.Anode 3. Cathode.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Repetitive peak off-state voltages Average on-state current Symbol Rating Unit VDRM,VRRM 600 V IT(AV) 0.5 A RMS on-state current Non-repetitive peak on-state current IT(RMS) 0.8 A ITSM 8 A.

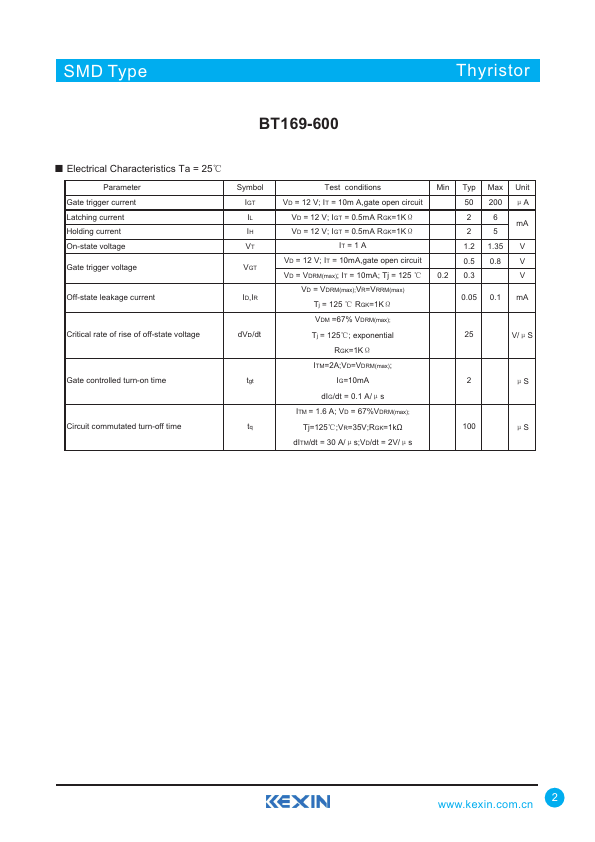

  • Electrical Characteristics Ta = 25℃ Parameter Repetitive peak off-state v.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BT169 Thyristor NXP
BT169 SCR Unisonic Technologies
BT169 Thyristor TGS
BT169 SCRs HAOPIN
BT1690 thyristor ETC

Other Datasheets by Kexin Semiconductor

Part Number Description
BT169 SCR Thyristor
BT169DW Thyristors logic level
BT131-500B Triacs
BT134W Triacs
BT134W-500 Triacs

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

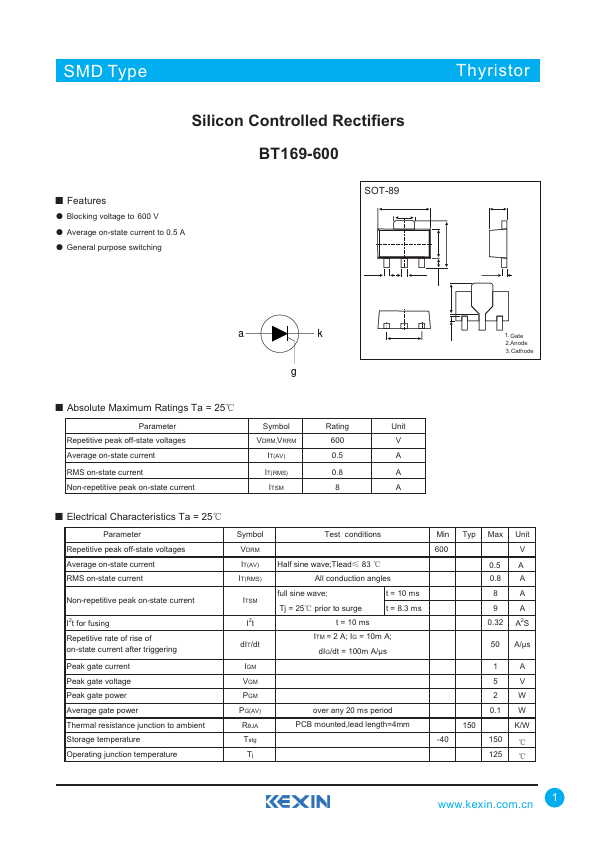

SMD Type Silicon Controlled Rectifiers BT169-600 ■ Features ● Blocking voltage to 600 V ● Average on-state current to 0.5 A ● General purpose switching SOT-89 Thyristor a k g 1. Gate 2.Anode 3. Cathode ■ Absolute Maximum Ratings Ta = 25℃ Parameter Repetitive peak off-state voltages Average on-state current Symbol Rating Unit VDRM,VRRM 600 V IT(AV) 0.5 A RMS on-state current Non-repetitive peak on-state current IT(RMS) 0.
