BCP53 Datasheet PNP Transistors

Manufacturer: Kexin Semiconductor

Download the BCP53 datasheet PDF. This datasheet also includes the BCP51 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

BCP53 pnp transistors by Kexin Semiconductor - Datasheet Preview — Note: The manufacturer provides a single datasheet file (BCP51-Kexin.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	BCP53
Manufacturer	Kexin Semiconductor
File Size	598.59 KB
Description	PNP Transistors
Download	BCP53 Download (PDF)

Overview

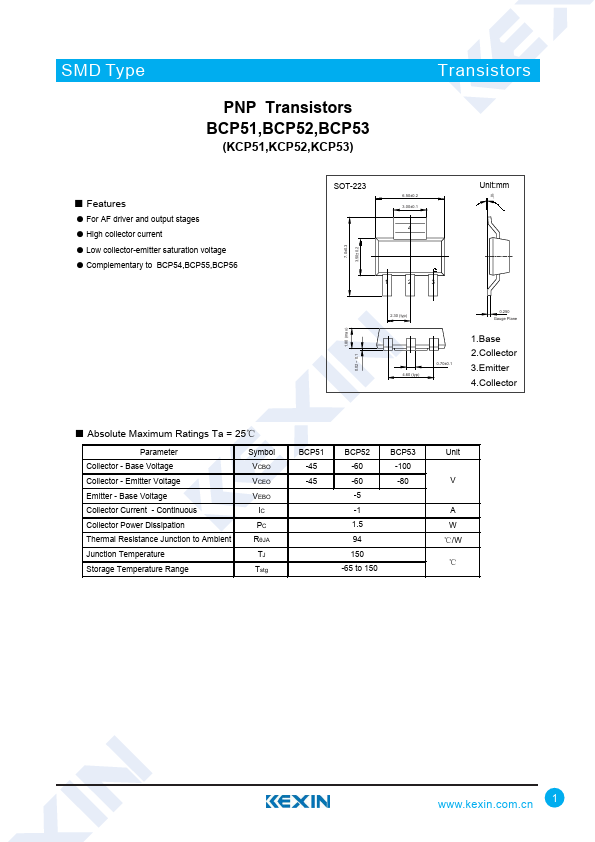

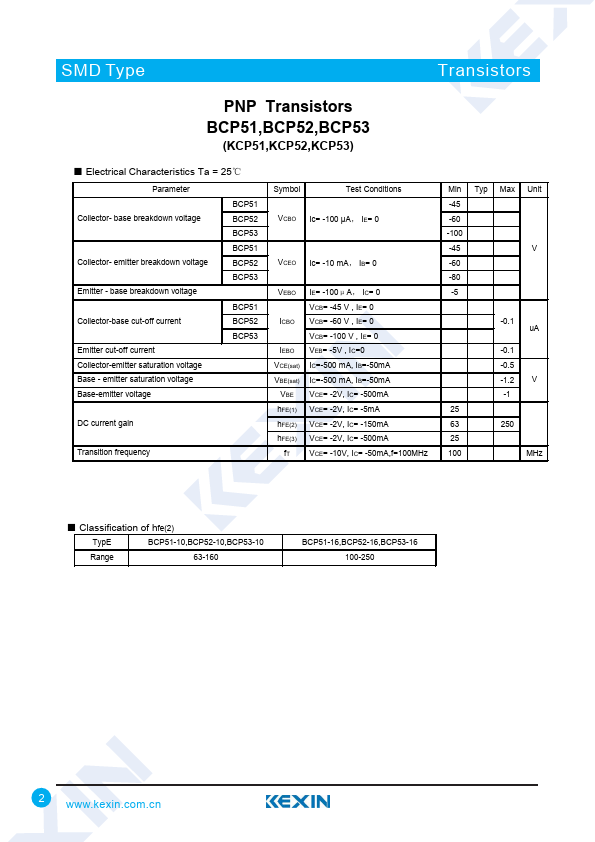

SMD Type PNP Transistors BCP51,BCP52,BCP53 (KCP51,KCP52,KCP53) Transistors.

Key Features

s.
For AF driver and output stages.
High collector current.
Low collector-emitter saturation voltage.
Complementary to BCP54,BCP55,BCP56 SOT-223 6.50±0.2 3.00±0.1 4 10b Unit:mm 7.0±0.3 3.50±0.2 1.80 (max) 0.02 ~ 0.1 1 2 3 2.30 (typ) 4.60 (typ) 0.70±0.1 0.250 Gauge Plane 1.Base 2.Collector 3.Emitter 4.Collector.
Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continu.
