AO6804 - Dual N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 20V.
  • ID =5 A (VGS = 4.5V).
  • RDS(ON) ＜ 32mΩ (VGS = 4.5V).
  • RDS(ON) ＜ 34mΩ (VGS = 4V).
  • RDS(ON) ＜ 37mΩ (VGS = 3.1V).
  • RDS(ON) ＜ 42mΩ (VGS = 2.5V) D1 D2 G1 S1 G2 S2.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current TA=25℃ TA=70℃ Power Dissipation TA=25℃ TA=70℃ Thermal Resistance. Junction- to-Ambient Thermal Resistance. Junction- to-Lead Junction Temperature Stor.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO6804 Dual N-Channel Enhancement Mode Field Effect Transistor Alpha & Omega Semiconductors
AO6804A 20V Dual N-Channel MOSFET Alpha & Omega Semiconductors
AO6800 30V Dual N-Channel MOSFET Alpha & Omega Semiconductors
AO6800 Dual N-Channel MOSFET VBsemi
AO6801 Dual P-Channel MOSFET Alpha & Omega Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
AO6804A Dual N-Channel MOSFET
AO6800 Dual N-Channel MOSFET
AO6800-HF Dual N-Channel MOSFET
AO6801 Dual P-Channel MOSFET
AO6801A Dual P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

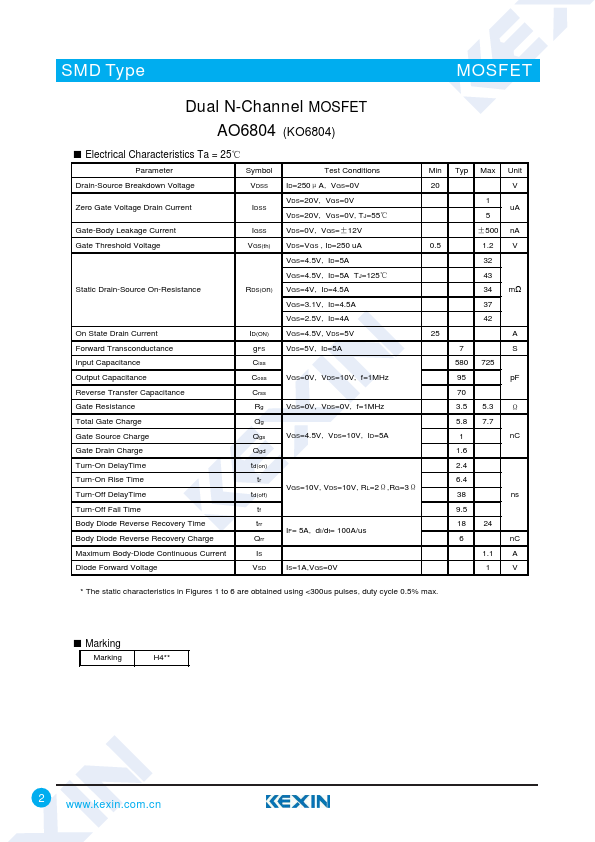

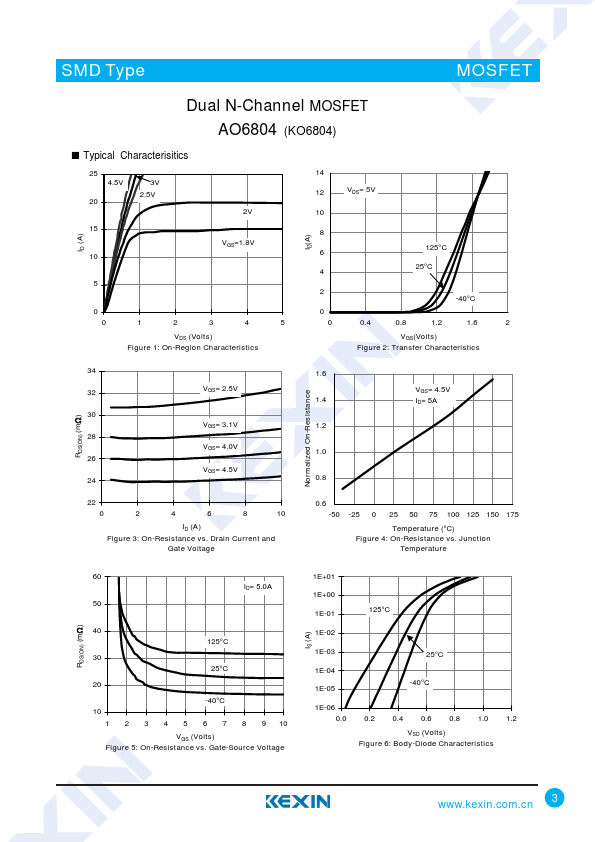

SMD Type Dual N-Channel MOSFET AO6804 (KO6804) MOSFET ■ Features ● VDS (V) = 20V ● ID =5 A (VGS = 4.5V) ● RDS(ON) ＜ 32mΩ (VGS = 4.5V) ● RDS(ON) ＜ 34mΩ (VGS = 4V) ● RDS(ON) ＜ 37mΩ (VGS = 3.1V) ● RDS(ON) ＜ 42mΩ (VGS = 2.5V) D1 D2 G1 S1 G2 S2 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current TA=25℃ TA=70℃ Power Dissipation TA=25℃ TA=70℃ Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Storage Temperature Range Symbol VDS VGS ID IDM PD RthJA RthJL TJ Tstg ( SOT-23-6 ) 0.4+0.1 -0.1 6 5 4 0.4 Unit: mm +0.2 1.6 -0.1 +0.2 2.8 -0.1 0.55 1 2 3 +0.01 -0.01 +0.2 -0.1 0.15 +0.02 -0.02 +0.1 1.1 -0.
