AO6422 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 20V.
  • ID =5 A (VGS = 4.5V).
  • RDS(ON) ＜ 44mΩ (VGS = 4.5V).
  • RDS(ON) ＜ 55mΩ (VGS = 2.5V).
  • RDS(ON) ＜ 72mΩ (VGS = 1.8V) D ( SOT-23-6 ) 0.4+0.1 -0.1 6 5 4 1 2 3 +0.01 -0.01 +0.2 -0.1 G S 0-0.1 +0.1 0.68 -0.1 +0.1 1.1 -0.1 +0.2 1.6 -0.1 +0.2 2.8 -0.1 0.55 0.4 MOSFET Unit: mm 0.15 +0.02 -0.02 1 Drain 4 Source 2 Drain 5 Drain 3 Gate 6 Drain.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Cur.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO6422 20V N-Channel MOSFET Alpha & Omega Semiconductors
AO6420 60V N-Channel MOSFET Alpha & Omega Semiconductors
AO6424 30V N-Channel MOSFET Alpha & Omega Semiconductors
AO6424A N-Channel MOSFET Alpha & Omega Semiconductors
AO6400 30V N-Channel MOSFET Alpha & Omega Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
AO6424 N-Channel MOSFET
AO6424A N-Channel MOSFET
AO6400 N-Channel MOSFET
AO6402 N-Channel MOSFET
AO6402A N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

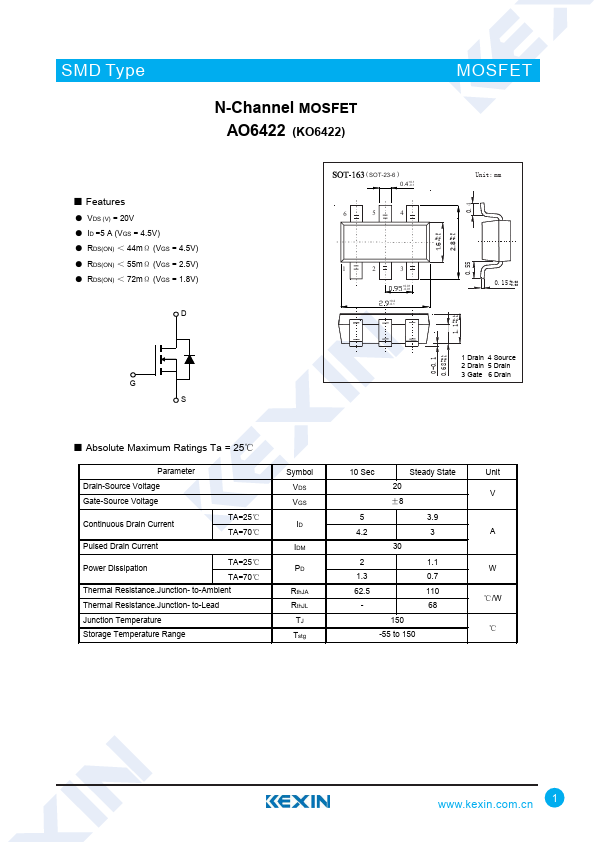

SMD Type N-Channel MOSFET AO6422 (KO6422) ■ Features ● VDS (V) = 20V ● ID =5 A (VGS = 4.5V) ● RDS(ON) ＜ 44mΩ (VGS = 4.5V) ● RDS(ON) ＜ 55mΩ (VGS = 2.5V) ● RDS(ON) ＜ 72mΩ (VGS = 1.8V) D ( SOT-23-6 ) 0.4+0.1 -0.1 6 5 4 1 2 3 +0.01 -0.01 +0.2 -0.1 G S 0-0.1 +0.1 0.68 -0.1 +0.1 1.1 -0.1 +0.2 1.6 -0.1 +0.2 2.8 -0.1 0.55 0.4 MOSFET Unit: mm 0.15 +0.02 -0.02 1 Drain 4 Source 2 Drain 5 Drain 3 Gate 6 Drain ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current TA=25℃ TA=70℃ Power Dissipation TA=25℃ TA=70℃ Thermal Resistance.Junction- to-Ambient Thermal Resistance.
