AO4806 - Dual N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 20V.
  • ID = 9.4 A (VGS = 10V).
  • RDS(ON) ＜ 14mΩ (VGS = 10V).
  • RDS(ON) ＜ 15mΩ (VGS = 4.5V).
  • RDS(ON) ＜ 21mΩ (VGS = 2.5V).
  • RDS(ON) ＜ 30mΩ (VGS = 1.8V).
  • ESD Rating: 2000V HBM D1 D2 G1 G2 S1 S2 +0.04 0.21 -0.02 SOP-8 1.50 0.15 1 Source2 2 Gate2 3 Source1 4 Gate1 5 Drain1 6 Drain1 7 Drain2 8 Drain2.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Ta=25℃ Ta.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4806 20V Dual N-Channel MOSFET Alpha & Omega Semiconductors
AO4800 30V Dual N-Channel MOSFET Alpha & Omega Semiconductors
AO4800 Dual N-Channel 30V MOSFET VBsemi
AO4800B 30V Dual N-Channel MOSFET Alpha & Omega Semiconductors
AO4800BL Dual N-Channel MOSFET Alpha & Omega Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
AO4801 Dual P-Channel MOSFET
AO4803A Dual P-Channel MOSFET
AO4805 Dual P-Channel MOSFET
AO4807 Dual P-Channel MOSFET
AO4812 Dual N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

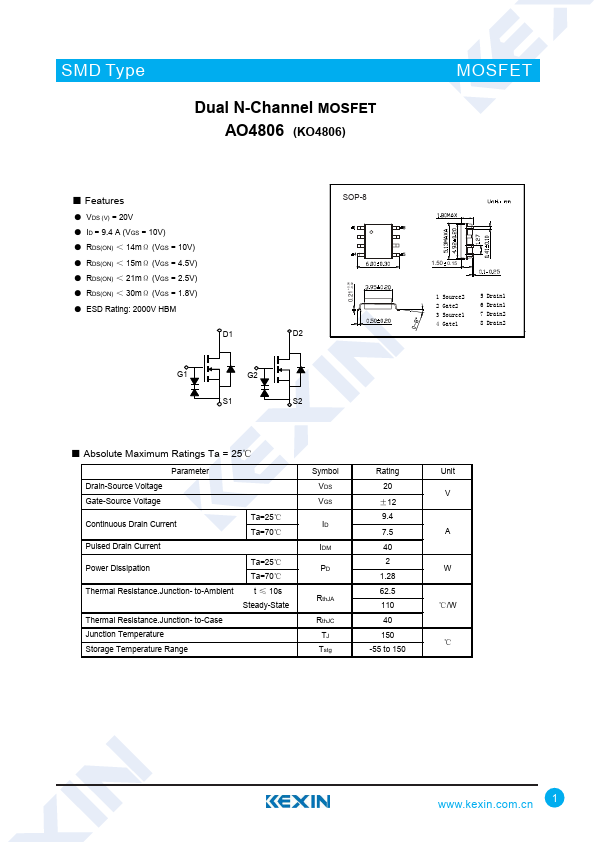

SMD Type Dual N-Channel MOSFET AO4806 (KO4806) MOSFET ■ Features ● VDS (V) = 20V ● ID = 9.4 A (VGS = 10V) ● RDS(ON) ＜ 14mΩ (VGS = 10V) ● RDS(ON) ＜ 15mΩ (VGS = 4.5V) ● RDS(ON) ＜ 21mΩ (VGS = 2.5V) ● RDS(ON) ＜ 30mΩ (VGS = 1.8V) ● ESD Rating: 2000V HBM D1 D2 G1 G2 S1 S2 +0.04 0.21 -0.02 SOP-8 1.50 0.15 1 Source2 2 Gate2 3 Source1 4 Gate1 5 Drain1 6 Drain1 7 Drain2 8 Drain2 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Ta=25℃ Ta=70℃ Power Dissipation Ta=25℃ Ta=70℃ Thermal Resistance.Junction- to-Ambient t ≤ 10s Steady-State Thermal Resistance.Junction- to-Case Junction Temperature Storage Temperature Range Symbol VDS VGS ID IDM PD RthJA RthJC TJ Tstg Rating 20 ±12 9.4 7.5 40 2 1.
