AO4801 - Dual P-Channel MOSFET

Key Features

  • s.
  • VDS (V) = -30V.
  • ID = -5 A (VGS = -10V).
  • RDS(ON) ＜ 48mΩ (VGS = -10V).
  • RDS(ON) ＜ 57mΩ (VGS = -4.5V).
  • RDS(ON) ＜ 80mΩ (VGS = -2.5V) SOP-8 Unit:mm +0.04 0.21 -0.02 1.50 0.15 1 S2 2 G2 3 S1 4 G1 5 D1 6 D1 7 D2 8 D2 D1 D2 G1 G2 S1 S2.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Avalanche Current Avalanche Energy Power Dissipation Thermal Resistance. Junction- to-Ambient.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4801 Dual P-Channel MOSFET Alpha & Omega Semiconductors
AO4801 Dual P-Channel 30V MOSFET VBsemi
AO4801A 30V P-Channel MOSFET Alpha & Omega Semiconductors
AO4800 30V Dual N-Channel MOSFET Alpha & Omega Semiconductors
AO4800 Dual N-Channel 30V MOSFET VBsemi

Other Datasheets by Kexin Semiconductor

Part Number Description
AO4803A Dual P-Channel MOSFET
AO4805 Dual P-Channel MOSFET
AO4806 Dual N-Channel MOSFET
AO4807 Dual P-Channel MOSFET
AO4812 Dual N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

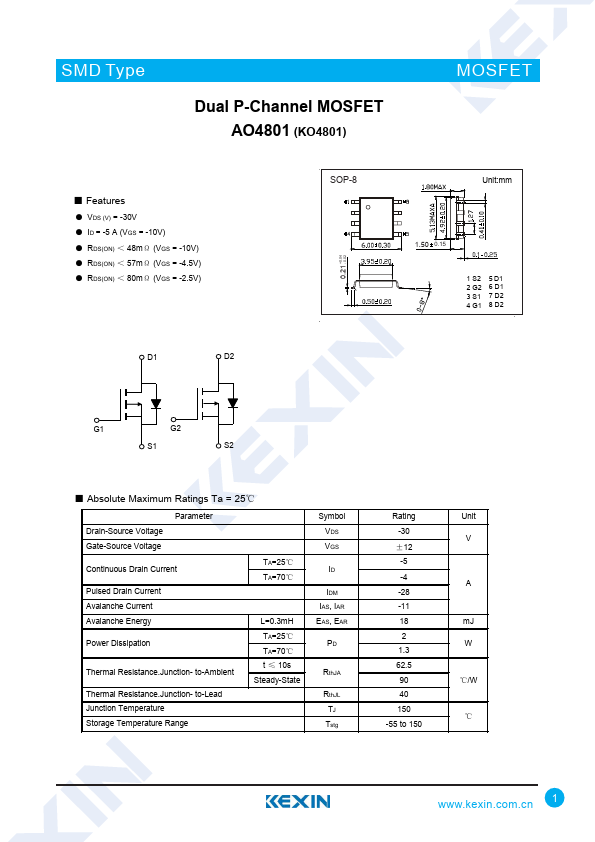

SMD Type Dual P-Channel MOSFET AO4801 (KO4801) MOSFET ■ Features ● VDS (V) = -30V ● ID = -5 A (VGS = -10V) ● RDS(ON) ＜ 48mΩ (VGS = -10V) ● RDS(ON) ＜ 57mΩ (VGS = -4.5V) ● RDS(ON) ＜ 80mΩ (VGS = -2.5V) SOP-8 Unit:mm +0.04 0.21 -0.02 1.50 0.15 1 S2 2 G2 3 S1 4 G1 5 D1 6 D1 7 D2 8 D2 D1 D2 G1 G2 S1 S2 ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Avalanche Current Avalanche Energy Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Storage Temperature Range TA=25℃ TA=70℃ L=0.3mH TA=25℃ TA=70℃ t ≤ 10s Steady-State Symbol VDS VGS ID IDM IAS, IAR EAS, EAR PD RthJA RthJL TJ Tstg Rating -30 ±12 -5 -4 -28 -11 18 2 1.3 62.
