AO4714 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 30V.
  • ID = 20 A (VGS = 10V).
  • RDS(ON) ＜ 4.7mΩ (VGS = 10V).
  • RDS(ON) ＜ 6.7mΩ (VGS = 4.5V).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4714 N-Channel MOSFET Alpha & Omega Semiconductors
AO4710 30V N-Channel MOSFET Alpha & Omega Semiconductors
AO4712 N-Channel Enhancement Mode Field Effect Transistor Alpha & Omega Semiconductors
AO4716 N-Channel MOSFET Alpha & Omega Semiconductors
AO4718 N-Channel MOSFET Alpha & Omega Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
AO4710 N-Channel MOSFET
AO4712 N-Channel MOSFET
AO4718 N-Channel MOSFET
AO4702 N-Channel MOSFET
AO4704 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

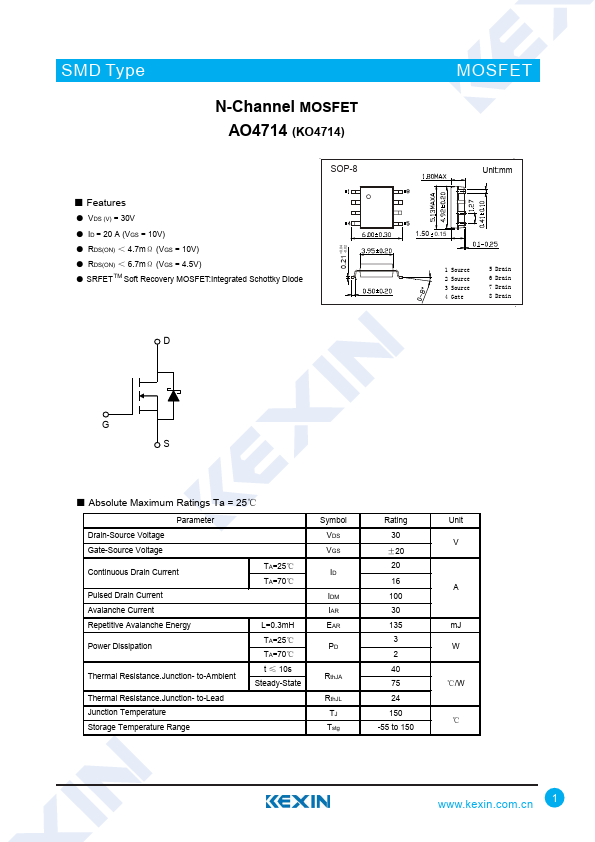

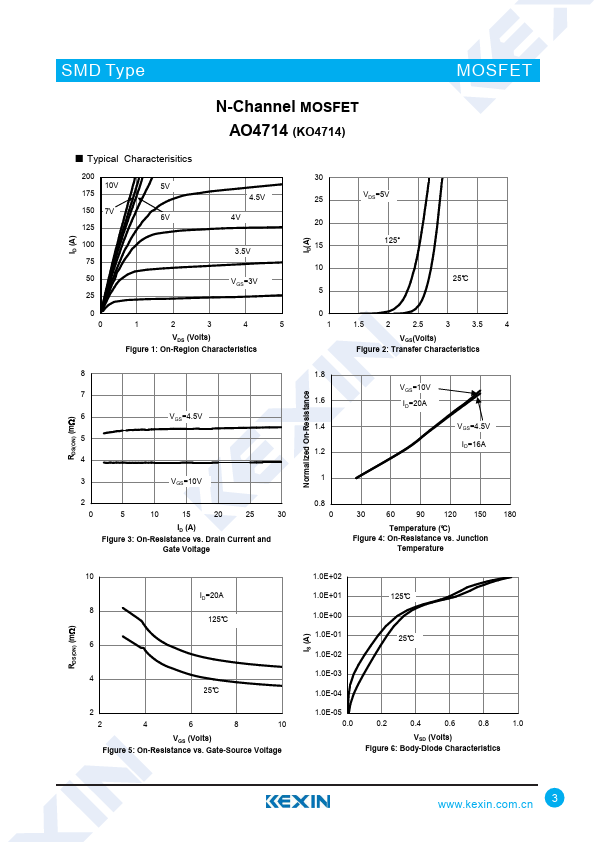

SMD Type N-Channel MOSFET AO4714 (KO4714) ■ Features ● VDS (V) = 30V ● ID = 20 A (VGS = 10V) ● RDS(ON) ＜ 4.7mΩ (VGS = 10V) ● RDS(ON) ＜ 6.7mΩ (VGS = 4.5V) ● SRFETTM Soft Recovery MOSFET:Integrated Schottky Diode +0.04 0.21 -0.02 SOP-8 D MOSFET Unit:mm 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain G S ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Avalanche Current TA=25℃ TA=70℃ Repetitive Avalanche Energy L=0.3mH Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.
