AO4704 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 30V.
  • ID = 13 A (VGS = 10V).
  • RDS(ON) ＜ 11.5mΩ (VGS = 10V).
  • RDS(ON) ＜ 13mΩ (VGS = 4.5V).
  • VDS (V) = 30V, IF = 3A, VF.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4704 N-Channel Enhancement Mode Field Effect Transistor Alpha & Omega Semiconductors
AO4700 N-Channel Enhancement Mode Field Effect Transistor Alpha & Omega Semiconductors
AO4700 N-Channel MOSFET Alpha & Omega Semiconductors
AO4701 P-Channel Enhancement Mode Field Effect Transistor Alpha & Omega Semiconductors
AO4702 N-Channel Enhancement Mode Field Effect Transistor Alpha & Omega Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
AO4702 N-Channel MOSFET
AO4706 N-Channel MOSFET
AO4710 N-Channel MOSFET
AO4712 N-Channel MOSFET
AO4714 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

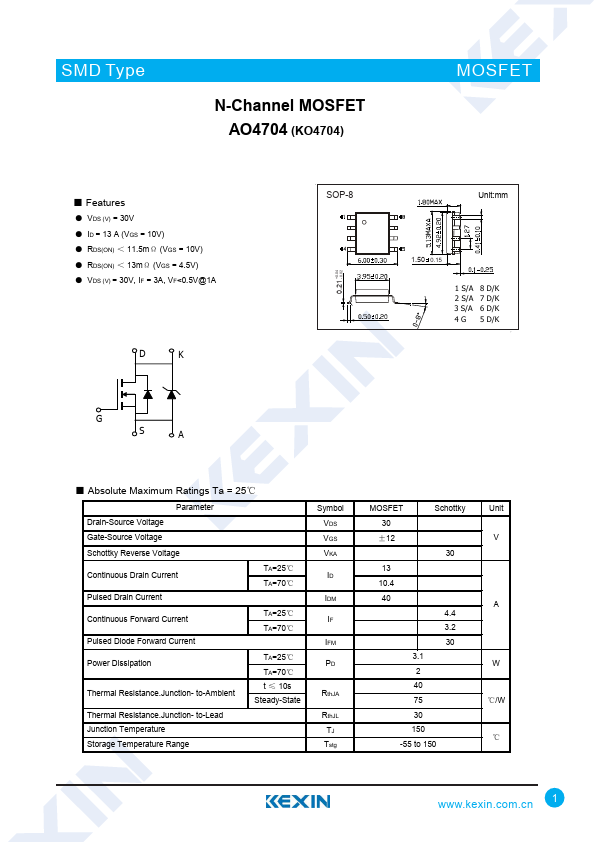

SMD Type N-Channel MOSFET AO4704 (KO4704) MOSFET ■ Features ● VDS (V) = 30V ● ID = 13 A (VGS = 10V) ● RDS(ON) ＜ 11.5mΩ (VGS = 10V) ● RDS(ON) ＜ 13mΩ (VGS = 4.5V) ● VDS (V) = 30V, IF = 3A, VF<0.5V@1A D K SOP-8 Unit:mm +0.04 0.21 -0.02 1.50 0.15 1 S/A 2 S/A 3 S/A 4G 8 D/K 7 D/K 6 D/K 5 D/K G S A ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Schottky Reverse Voltage Continuous Drain Current Pulsed Drain Current TA=25℃ TA=70℃ Continuous Forward Current Pulsed Diode Forward Current TA=25℃ TA=70℃ Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.
