AO4498 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 30V.
  • ID = 18 A (VGS = 10V).
  • RDS(ON) ＜ 5.5mΩ (VGS = 10V).
  • RDS(ON) ＜ 7.5mΩ (VGS = 4.5V) SOP-8 +0.04 0.21 -0.02 D MOSFET Unit:mm 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain G S.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Avalanche Current TA=25℃ TA=70℃ Repetitive Avalanche Energy L=0.1mH Power Dissipation Thermal Resistance. Ju.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4498 30V N-Channel MOSFET Alpha & Omega Semiconductors
AO4498 30V N-Channel MOSFET VBsemi
AO4498E 30V N-Channel MOSFET Alpha & Omega Semiconductors
AO4490 N-Channel MOSFET Alpha & Omega Semiconductors
AO4492 30V N-Channel MOSFET VBsemi

Other Datasheets by Kexin Semiconductor

Part Number Description
AO4498E N-Channel MOSFET
AO4490 N-Channel MOSFET
AO4492 N-Channel MOSFET
AO4494 N-Channel MOSFET
AO4496 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

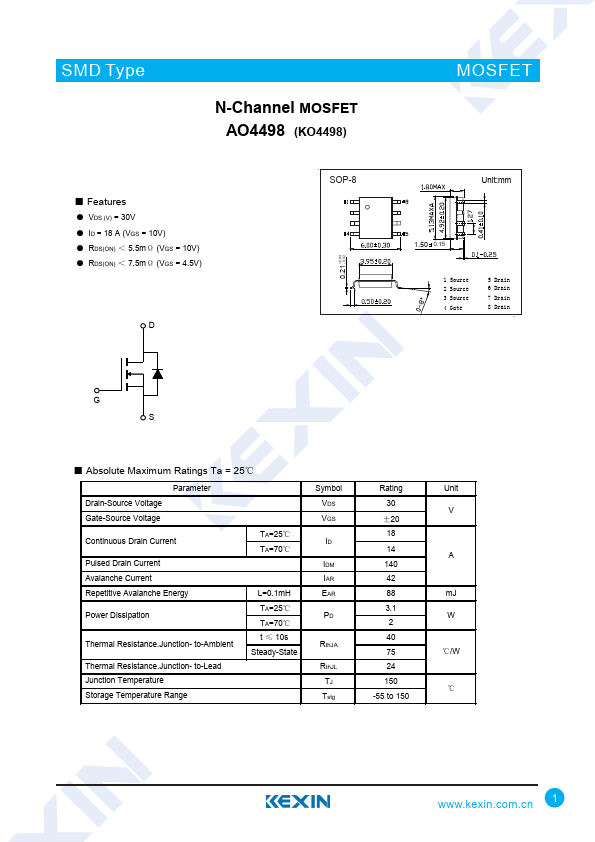

SMD Type N-Channel MOSFET AO4498 (KO4498) ■ Features ● VDS (V) = 30V ● ID = 18 A (VGS = 10V) ● RDS(ON) ＜ 5.5mΩ (VGS = 10V) ● RDS(ON) ＜ 7.5mΩ (VGS = 4.5V) SOP-8 +0.04 0.21 -0.02 D MOSFET Unit:mm 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain G S ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Avalanche Current TA=25℃ TA=70℃ Repetitive Avalanche Energy L=0.1mH Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Storage Temperature Range TA=25℃ TA=70℃ t ≤ 10s Steady-State Symbol VDS VGS ID IDM IAR EAR PD RthJA RthJL TJ Tstg Rating 30 ±20 18 14 140 42 88 3.
