AO4492 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 30V.
  • ID = 14 A (VGS = 10V).
  • RDS(ON) ＜ 9.5mΩ (VGS = 10V).
  • RDS(ON) ＜ 14mΩ (VGS = 4.5V) SOP-8 +0.04 0.21 -0.02 D MOSFET Unit:mm 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain G S.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Avalanche Current Avalanche Energy Power Dissipation Thermal Resistance. Junction- to-Ambient Thermal Resistance.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4492 30V N-Channel MOSFET VBsemi
AO4492 30V N-Channel MOSFET Alpha & Omega Semiconductors
AO4490 N-Channel MOSFET Alpha & Omega Semiconductors
AO4494 30V N-Channel MOSFET Alpha & Omega Semiconductors
AO4496 30V N-Channel MOSFET Alpha & Omega Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
AO4490 N-Channel MOSFET
AO4494 N-Channel MOSFET
AO4496 N-Channel MOSFET
AO4498 N-Channel MOSFET
AO4498E N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

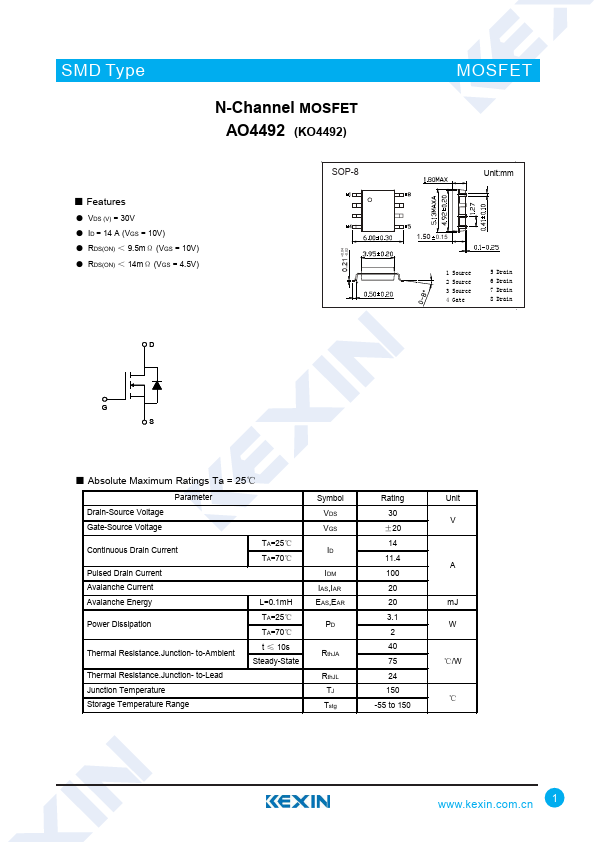

SMD Type N-Channel MOSFET AO4492 (KO4492) ■ Features ● VDS (V) = 30V ● ID = 14 A (VGS = 10V) ● RDS(ON) ＜ 9.5mΩ (VGS = 10V) ● RDS(ON) ＜ 14mΩ (VGS = 4.5V) SOP-8 +0.04 0.21 -0.02 D MOSFET Unit:mm 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain G S ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Avalanche Current Avalanche Energy Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Storage Temperature Range TA=25℃ TA=70℃ L=0.1mH TA=25℃ TA=70℃ t ≤ 10s Steady-State Symbol VDS VGS ID IDM IAS,IAR EAS,EAR PD RthJA RthJL TJ Tstg Rating 30 ±20 14 11.4 100 20 20 3.
