AO4476A - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 30V.
  • ID = 15 A (VGS = 10V).
  • RDS(ON) ＜ 7.7mΩ (VGS = 10V).
  • RDS(ON) ＜ 10.8mΩ (VGS = 4.5V) SOP-8 +0.04 0.21 -0.02 D MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain G S.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Avalanche Current TA=25℃ TA=70℃ Avalanche Energy L=0.1mH Power Dissipation Thermal Resistance. Junction- to-Ambient.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4476A 30V N-Channel MOSFET Alpha & Omega Semiconductors
AO4476A 30V N-Channel MOSFET VBsemi
AO4476 N-Channel MOSFET Alpha & Omega Semiconductors
AO4470 N-Channel MOSFET Alpha & Omega Semiconductors
AO4472 N-Channel MOSFET Alpha & Omega Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
AO4476 N-Channel MOSFET
AO4478 N-Channel MOSFET
AO4402 N-Channel MOSFET
AO4403-HF P-Channel MOSFET
AO4404 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

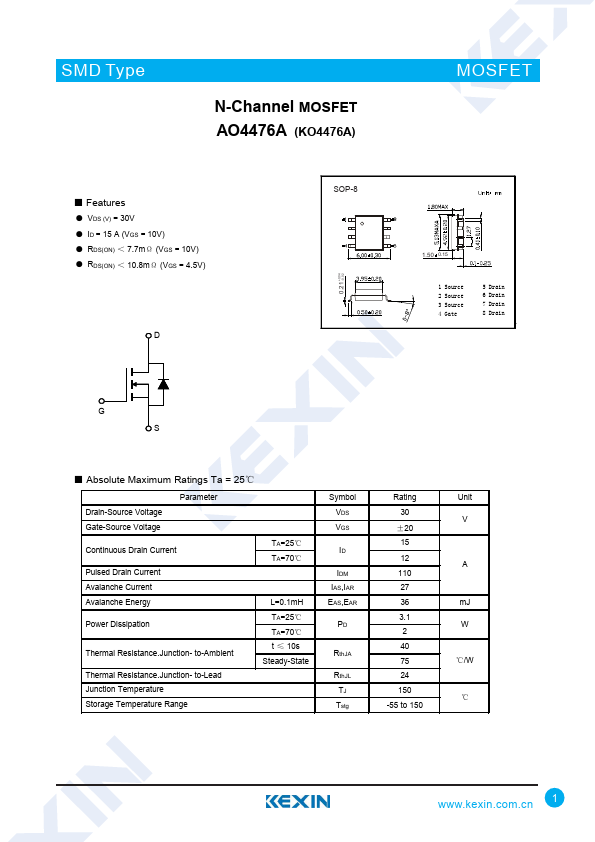

SMD Type N-Channel MOSFET AO4476A (KO4476A) ■ Features ● VDS (V) = 30V ● ID = 15 A (VGS = 10V) ● RDS(ON) ＜ 7.7mΩ (VGS = 10V) ● RDS(ON) ＜ 10.8mΩ (VGS = 4.5V) SOP-8 +0.04 0.21 -0.02 D MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain G S ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Avalanche Current TA=25℃ TA=70℃ Avalanche Energy L=0.1mH Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Storage Temperature Range TA=25℃ TA=70℃ t ≤ 10s Steady-State Symbol VDS VGS ID IDM IAS,IAR EAS,EAR PD RthJA RthJL TJ Tstg Rating 30 ±20 15 12 110 27 36 3.
