AO4354 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 30V.
  • ID = 23 A (VGS = 10V).
  • RDS(ON) ＜ 3.7mΩ (VGS = 10V).
  • RDS(ON) ＜ 5.3mΩ (VGS = 4.5V) D +0.04 0.21 -0.02 SOP-8 MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain G S.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage VDS Spike Parameter Continuous Drain Current Pulsed Drain Current Avalanche Current Avalanche energy Power Dissipation Thermal Resistance. Junction- to-Ambient Thermal Resista.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4354 30V N-Channel AlphaMOS Alpha & Omega Semiconductors
AO4354 N-Channel MOSFET VBsemi
AO4302 N-Channel MOSFET Alpha & Omega Semiconductors
AO4304 N-Channel MOSFET Alpha & Omega Semiconductors
AO4306 30V N-Channel MOSFET Alpha & Omega Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
AO4302 N-Channel MOSFET
AO4304 N-Channel MOSFET
AO4306 N-Channel MOSFET
AO4310 N-Channel MOSFET
AO4312 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

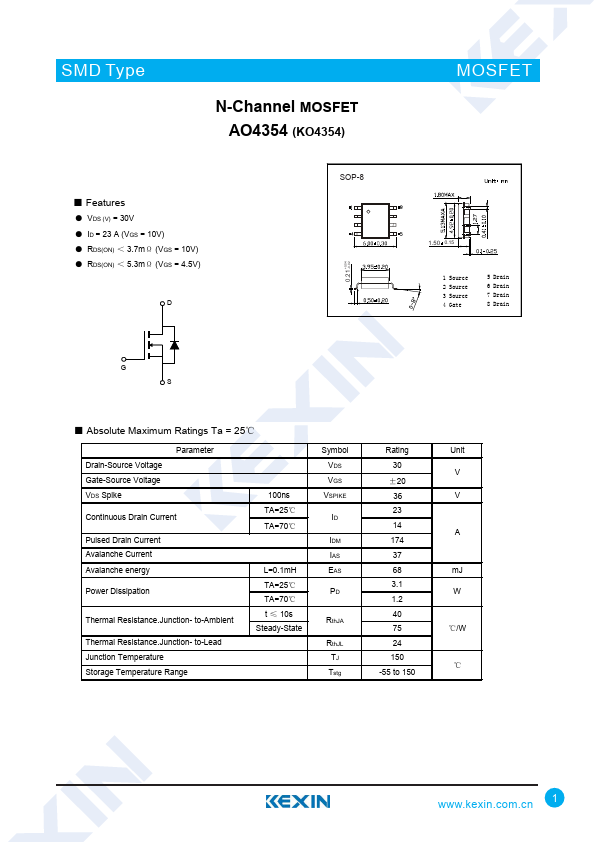

SMD Type N-Channel MOSFET AO4354 (KO4354) ■ Features ● VDS (V) = 30V ● ID = 23 A (VGS = 10V) ● RDS(ON) ＜ 3.7mΩ (VGS = 10V) ● RDS(ON) ＜ 5.3mΩ (VGS = 4.5V) D +0.04 0.21 -0.02 SOP-8 MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain G S ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage VDS Spike Parameter Continuous Drain Current Pulsed Drain Current Avalanche Current Avalanche energy Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Storage Temperature Range 100ns TA=25℃ TA=70℃ L=0.1mH TA=25℃ TA=70℃ t ≤ 10s Steady-State Symbol VDS VGS VSPIKE ID IDM IAS EAS PD RthJA RthJL TJ Tstg Rating 30 ±20 36 23 14 174 37 68 3.1 1.
