AO4306 - 30V N-Channel MOSFET

General Description

The AO4306 uses advanced trench technology to provide excellent RDS(ON) with low gate charge.

This device is suitable for high side switch in SMPS and general purpose applications.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4306 N-Channel MOSFET Kexin
AO4302 N-Channel MOSFET Kexin
AO4304 N-Channel MOSFET Kexin
AO4310 N-Channel MOSFET Kexin
AO4312 N-Channel MOSFET Kexin

Other Datasheets by Alpha & Omega Semiconductors

Part Number Description
AO4302 N-Channel MOSFET
AO4304 N-Channel MOSFET
AO4310 N-Channel MOSFET
AO4312 N-Channel MOSFET
AO4314 36V N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

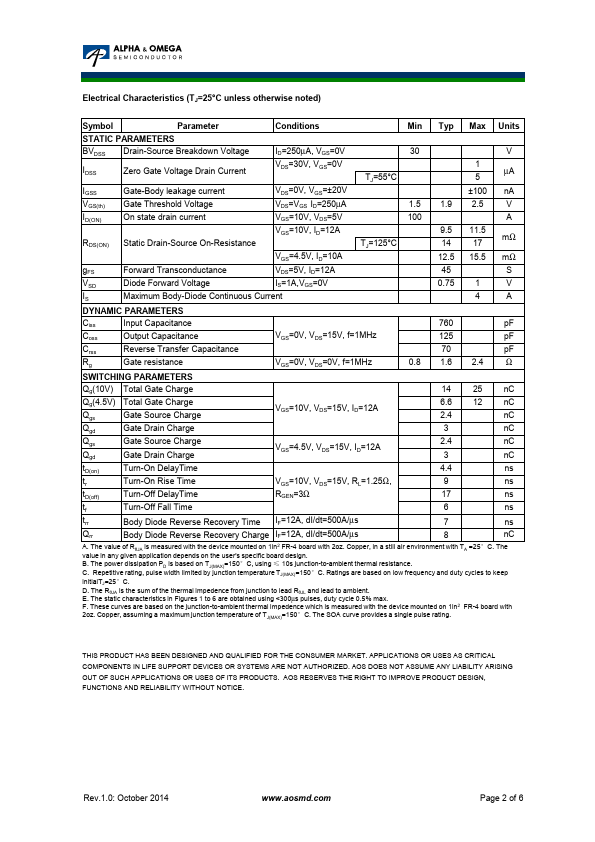

AO4306 30V N-Channel MOSFET General Description Product Summary The AO4306 uses advanced trench technology to provide excellent RDS(ON) with low gate charge. This device is suitable for high side switch in SMPS and general purpose applications. VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS = 4.5V) 100% UIS Tested 100% Rg Tested 30V 13A < 11.5mΩ < 15.5mΩ SOIC-8 D Top View Bottom View D D D D G S S S G S Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current TA=25°C TA=70°C ID Pulsed Drain Current C IDM Avalanche Current C IAS Avalanche energy L=0.
