AO3434A - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 30V.
  • ID = 4 A (VGS = 10V).
  • RDS(ON) ＜ 52mΩ (VGS = 10V).
  • RDS(ON) ＜ 60mΩ (VGS = 4.5V).
  • RDS(ON) ＜ 78mΩ (VGS = 2.5V) D +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.68 -0.1 G S.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain C.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO3434A 30V N-Channel MOSFET Alpha & Omega Semiconductors
AO3434 30V N-Channel MOSFET Alpha & Omega Semiconductors
AO3435 20V P-Channel MOSFET Alpha & Omega Semiconductors
AO3438 N-Channel MOSFET Alpha & Omega Semiconductors
AO3400 30V N-Channel MOSFET Alpha & Omega Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
AO3434A-HF N-Channel MOSFET
AO3434 N-Channel MOSFET
AO3438 N-Channel MOSFET
AO3400 N-Channel MOSFET
AO3400A N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

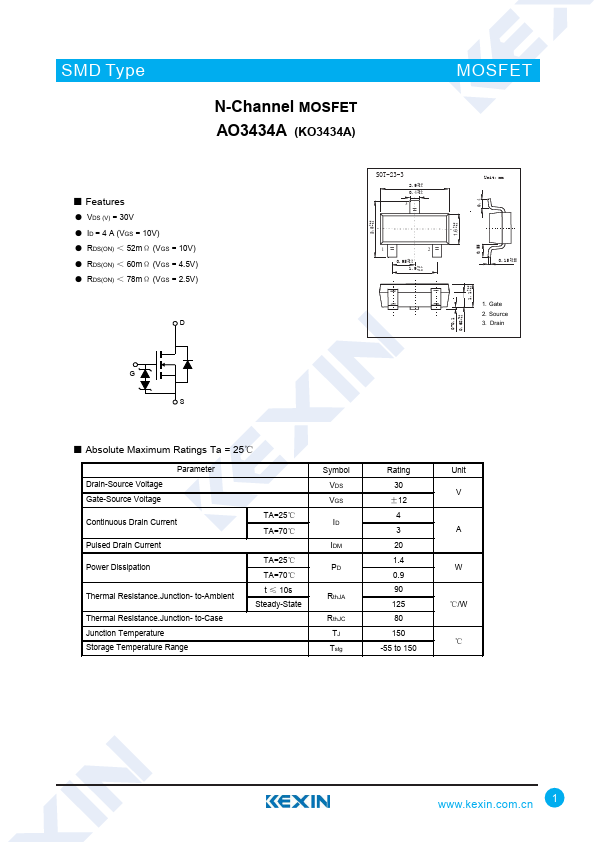

SMD Type N-Channel MOSFET AO3434A (KO3434A) MOSFET ■ Features ● VDS (V) = 30V ● ID = 4 A (VGS = 10V) ● RDS(ON) ＜ 52mΩ (VGS = 10V) ● RDS(ON) ＜ 60mΩ (VGS = 4.5V) ● RDS(ON) ＜ 78mΩ (VGS = 2.5V) D +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.68 -0.1 G S ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.
