2SK4002 - N-Channel MOSFET

Key Features

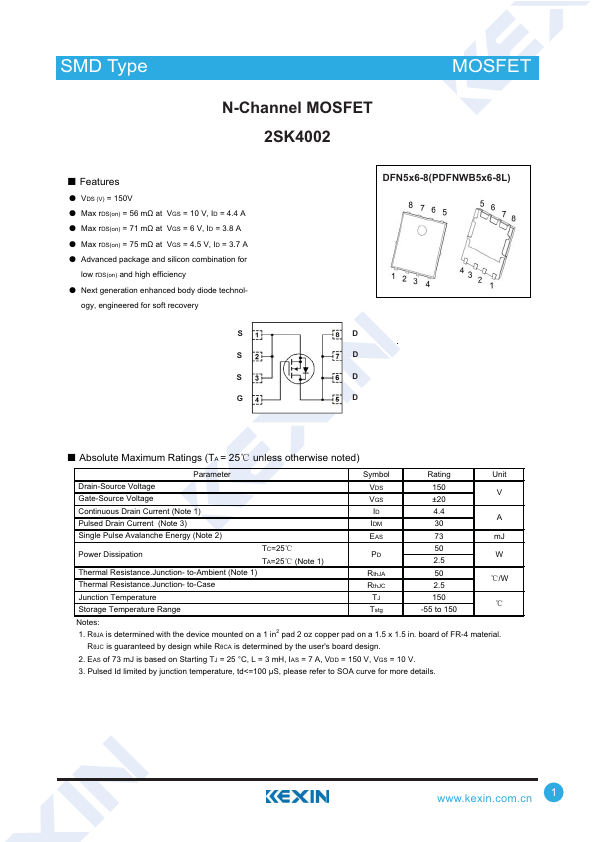

  • ƽ VDS (V) = 150V ƽ Max rDS(on) = 56 mȍ at VGS = 10 V, ID = 4.4 A ƽ Max rDS(on) = 71 mȍ at VGS = 6 V, ID = 3.8 A ƽ Max rDS(on) = 75 mȍ at VGS = 4.5 V, ID = 3.7 A ƽ Advanced package and silicon combination for low rDS(on) and high efficiency ƽ Next generation enhanced body diode technol- ogy, engineered for soft recovery S S S G DFN5x6-8(PDFNWB5x6-8L) D D D D Ƶ Absolute Maximum Ratings (TA = 25ć unless otherwise noted) Parameter Symbol Rating Unit Drain-Source Voltage Gate-Source Voltage V.
