2SK1273 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 60V.
  • ID = 2 A.
  • RDS(ON) ＜ 1Ω (VGS = 4V).
  • RDS(ON) ＜ 0.65Ω (VGS = 10V) 1.70 0.1 0.42 0.1 0.46 0.1 1.Gate 2.Drain 3.Source.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (Note.1) Power Dissipation Junction Temperature Channel Temperature Storage Temperature Range Symbol VDS VGS ID IDM PD TJ Tch Tstg Rating 60 ±20 2 4 2 150 150 -55 to 150 Note.1: PW ≤ 10ms,Duty.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK1273 N-Channel MOSFET NEC
2SK1273 N-Channel MOSFET VBsemi
2SK1271 N Channel NEC
2SK1272 N-Channel MOSFET NEC
2SK1274 N-Channel MOSFET NEC

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK1254S Silicon N-Channel MOSFET
2SK1284 MOS Field Effect Power Transistor
2SK1284-Z N-Channel MOSFET
2SK1133 N-Channel MOSFET
2SK1399 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

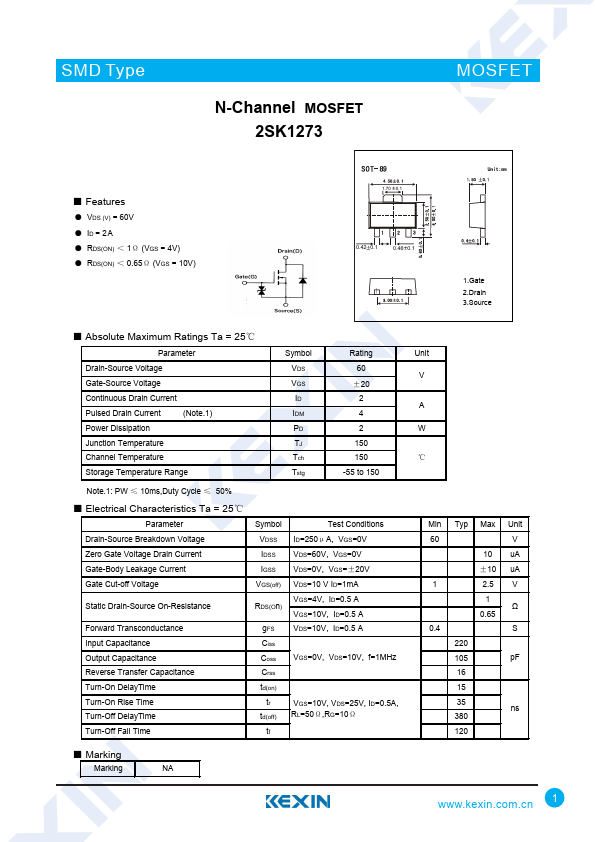

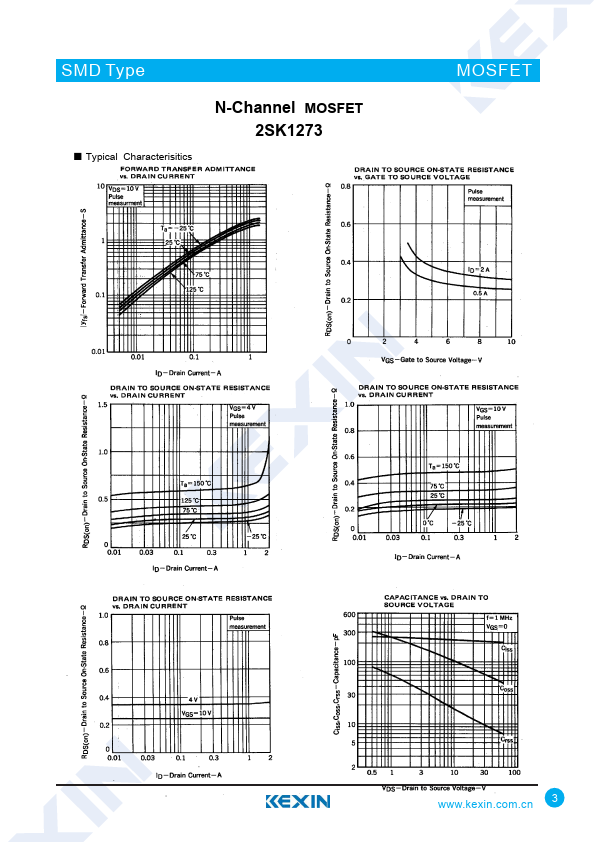

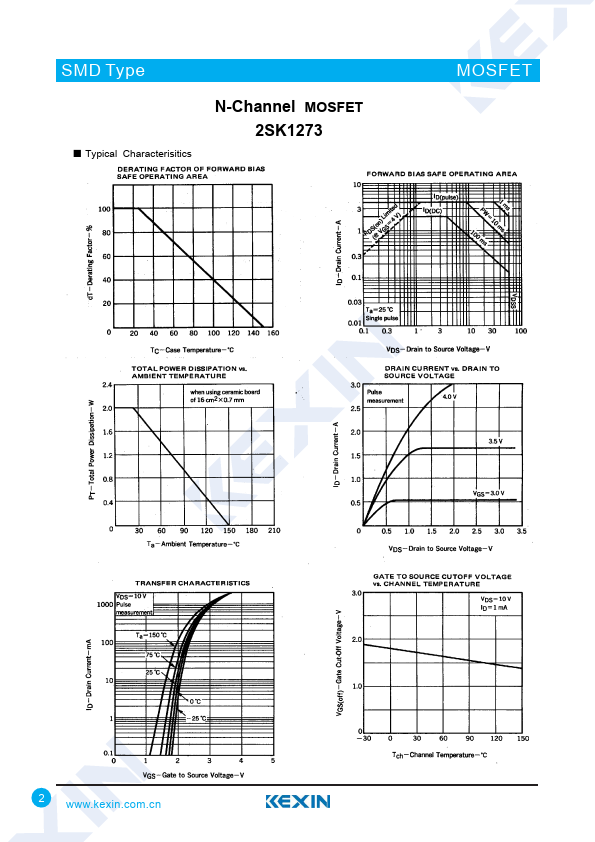

SMD Type N-Channel MOSFET 2SK1273 MOSFET ■ Features ● VDS (V) = 60V ● ID = 2 A ● RDS(ON) ＜ 1Ω (VGS = 4V) ● RDS(ON) ＜ 0.65Ω (VGS = 10V) 1.70 0.1 0.42 0.1 0.46 0.1 1.Gate 2.Drain 3.Source ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (Note.1) Power Dissipation Junction Temperature Channel Temperature Storage Temperature Range Symbol VDS VGS ID IDM PD TJ Tch Tstg Rating 60 ±20 2 4 2 150 150 -55 to 150 Note.
