2SK3899 - MOS Field Effect Transistor

Features

  • Low On-state resistance RDS(on)1 = 5.3mÙ MAX. (VGS = 10 V, ID = 42 A) RDS(on)2 = 6.5 mÙ MAX. (VGS = 4.5 V, ID = 42 A) Low C iss: C iss = 5500 pF TYP. +0.2 5.28 -0.2 +0.2 8.7 -0.2 TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm +0.1 1.27 -0.1 +0.2 2.54 -0.2 15.25-+00..22 5.60 1.27+0.1 -0.1 0.1max 2.54+0.2 -0.2 5.08+0.1 -0.1 0.81+0.1 -0.1 2.54 0.4+0.2 -0.2 1 Gate 2 Drain 3 Source Absolute Maximum Ratings Ta = 25 Parameter Drain to source voltage Gate to source voltage Drain current.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK3899 SWITCHING N-CHANNEL POWER MOSFET NEC
2SK3899-ZK N-Channel MOSFET Transistor Inchange Semiconductor
2SK389 N-Channel MOSFET Toshiba Semiconductor
2SK3891-01R N-Channel MOSFET Transistor Inchange Semiconductor
2SK3891-01R Power MOSFET Fuji Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK3018 N-Channel MOSFET
2SK3019 N-Channel MOSFET
2SK303 N-Channel FET
2SK3040K N-Channel Enhancement MOSFET
2SK3322 MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

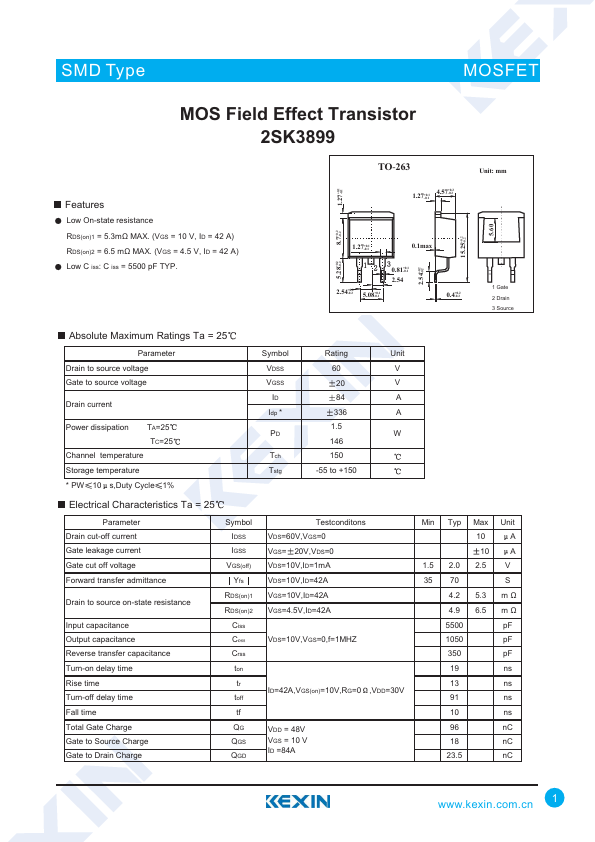

SMD Type MOSFET MOS Field Effect Transistor 2SK3899 Features Low On-state resistance RDS(on)1 = 5.3mÙ MAX. (VGS = 10 V, ID = 42 A) RDS(on)2 = 6.5 mÙ MAX. (VGS = 4.5 V, ID = 42 A) Low C iss: C iss = 5500 pF TYP. +0.2 5.28 -0.2 +0.2 8.7 -0.2 TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm +0.1 1.27 -0.1 +0.2 2.54 -0.2 15.25-+00..22 5.60 1.27+0.1 -0.1 0.1max 2.54+0.2 -0.2 5.08+0.1 -0.1 0.81+0.1 -0.1 2.54 0.4+0.2 -0.2 1 Gate 2 Drain 3 Source Absolute Maximum Ratings Ta = 25 Parameter Drain to source voltage Gate to source voltage Drain current Power dissipation TA=25 TC=25 Channel temperature Storage temperature * PW 10 s,Duty Cycle 1% Symbol Rating Unit VDSS 60 V VGSS 20 V ID 84 A Idp * 336 A 1.
