2SK3713 - MOS Field Effect Transistor

Key Features

  • Super high VGS(off): VGS(off) = 3.8 to 5.8 V Low Crss: Crss = 6.5 pF TYP. Low QG: QG = 25 nC TYP. Low on-state resistance: RDS(on) = 0.83 MAX. (VGS = 10 V, ID = 5 A) Absolute Maximum Ratings Ta = 25 Parameter Drain to source voltage Gate to source voltage Drain current Power dissipation TA=25 TC=25 Channel temperature Storage temperature.
  • PW 10 s,Duty Cycle 1% TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm +0.1 1.27 -0.1 +0.2 2.54 -0.2 15.25-+00..22 5.60 +0.2 8.7 -0.2 +0.2 5.28 -0.2.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK3713 SWITCHING N-CHANNEL POWER MOSFET NEC
2SK371 N-Channel MOSFET Toshiba Semiconductor
2SK3710 MOSFET Sanken
2SK3710 N-Channel MOSFET INCHANGE
2SK3711 N-Channel MOSFET Sanken electric

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK3712 MOS Field Effect Transistor
2SK3716 MOS Field Effect Transistor
2SK3723 N-Channel MOSFET
2SK3731 N-channel enhancement mode MOSFET
2SK3740 MOS Field Effect Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

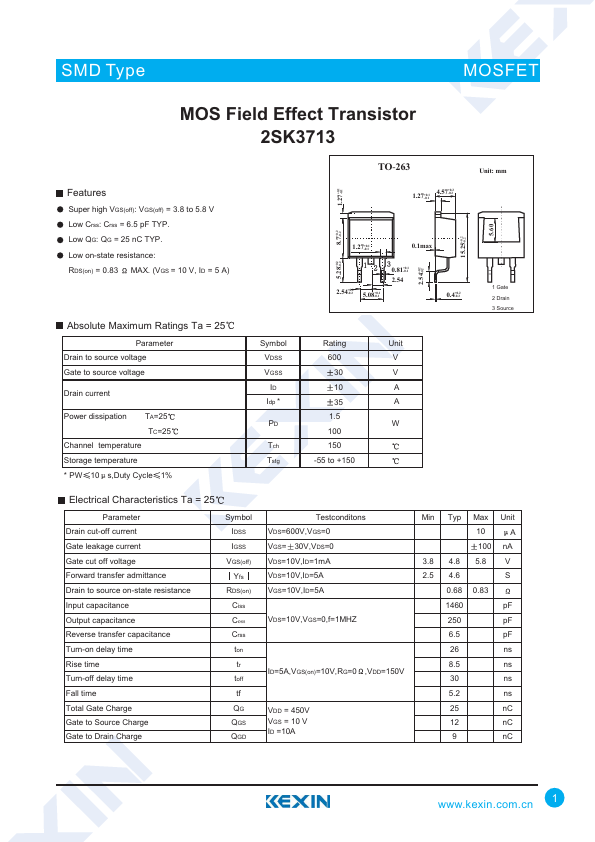

SMD Type MOSFET MOS Field Effect Transistor 2SK3713 Features Super high VGS(off): VGS(off) = 3.8 to 5.8 V Low Crss: Crss = 6.5 pF TYP. Low QG: QG = 25 nC TYP. Low on-state resistance: RDS(on) = 0.83 MAX. (VGS = 10 V, ID = 5 A) Absolute Maximum Ratings Ta = 25 Parameter Drain to source voltage Gate to source voltage Drain current Power dissipation TA=25 TC=25 Channel temperature Storage temperature * PW 10 s,Duty Cycle 1% TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm +0.1 1.27 -0.1 +0.2 2.54 -0.2 15.25-+00..22 5.60 +0.2 8.7 -0.2 +0.2 5.28 -0.2 1.27+0.1 -0.1 0.1max 2.54+0.2 -0.2 5.08+0.1 -0.1 0.81+0.1 -0.1 2.54 0.4+0.2 -0.2 Symbol Rating Unit VDSS 600 V VGSS 30 V ID 10 A Idp * 35 A 1.
