2SK3635 - MOS Field Effect Transistor

Key Features

  • High voltage: VDSS = 200 V Gate voltage rating: 30 V Low on-state resistance RDS(on) = 0.43 MAX. (VGS = 10 V, ID = 4.0 A) Low Ciss: Ciss = 390 pF TYP. Built-in gate protection diode +0.2 9.70 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 Unit: mm +0.15 1.50 -0.15 3.80 +0.15 5.55 -0.15 0.80+0.1 -0.1 0.127 max 2.3 4.60+0.15 -0.15 0.60+0.1 -0.1 +0.15 0.50 -0.15 +0.28 1.50 -0.1 +0.25 2.65 -0.1 1 Gate 2 Drain 3 Source Absolute Maximum Ratings Ta = 25 Parameter.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK3635 SWITCHING N-CHANNEL POWER MOSFET NEC
2SK3635D N-Channel MOSFET Transistor Inchange Semiconductor
2SK3635I N-Channel MOSFET Transistor Inchange Semiconductor
2SK363 N-Channel MOSFET Toshiba Semiconductor
2SK3633 N-Channel MOSFET Toshiba Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK3634 MOS Field Effect Transistor
2SK3637 Silicon N-channel Power MOSFET
2SK3638 MOS Field Effect Transistor
2SK3639 MOS Field Effect Transistor
2SK3628 Silicon N-channel Power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

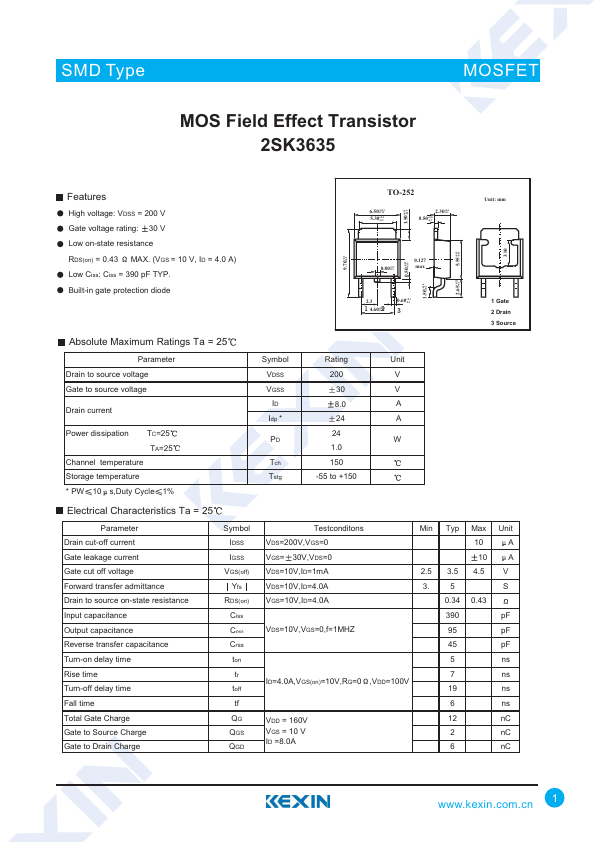

SMD Type MOSFICET MOS Field Effect Transistor 2SK3635 Features High voltage: VDSS = 200 V Gate voltage rating: 30 V Low on-state resistance RDS(on) = 0.43 MAX. (VGS = 10 V, ID = 4.0 A) Low Ciss: Ciss = 390 pF TYP. Built-in gate protection diode +0.2 9.70 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 Unit: mm +0.15 1.50 -0.15 3.80 +0.15 5.55 -0.15 0.80+0.1 -0.1 0.127 max 2.3 4.60+0.15 -0.15 0.60+0.1 -0.1 +0.15 0.50 -0.15 +0.28 1.50 -0.1 +0.25 2.65 -0.1 1 Gate 2 Drain 3 Source Absolute Maximum Ratings Ta = 25 Parameter Drain to source voltage Gate to source voltage Drain current Power dissipation TC=25 TA=25 Channel temperature Storage temperature * PW 10 s,Duty Cycle 1% Symbol Rating Unit VDSS 200 V VGSS 30 V ID 8.
